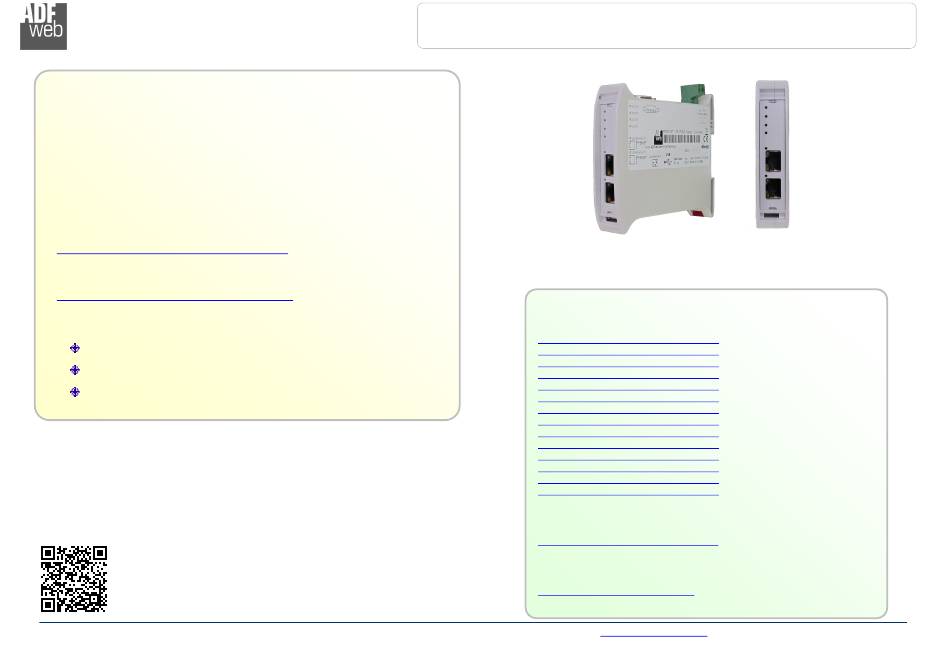

Industrial Electronic Devices
User Manual
Revision 1.000
English

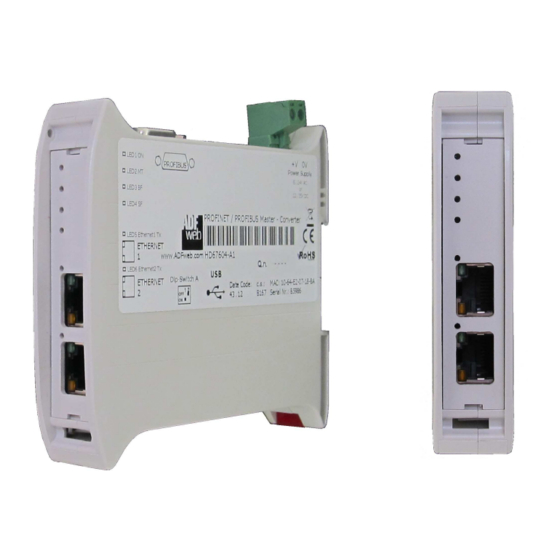

IEC 61850 Server / PROFINET Master -
Converter
(Order Code: HD67B82-A1)
for Website information:
www.adfweb.com/?Product=HD67B82
for Price information:
www.adfweb.com/?Price=HD67B82-A1
Benefits and Main Features:
Triple electrical isolation
Power Supply 18...35V DC and 8...24 V AC
Temperature range: -40°C/+85°C (-40°F/+185°F)
User Manual
ADFweb.com Srl – IT31010 – Mareno – Treviso
User Manual IEC 61850 Server / PROFINET Master
Document code: MN67B82_ENG
For others PROFINET Master devices, see also the following links:
PROFINET Master from/to ...
www.adfweb.com?Product=HD67B45
www.adfweb.com?Product=HD67B70
www.adfweb.com?Product=HD67B71
www.adfweb.com?Product=HD67B72
www.adfweb.com?Product=HD67B73
www.adfweb.com?Product=HD67B74
www.adfweb.com?Product=HD67B75
www.adfweb.com?Product=HD67B76
www.adfweb.com?Product=HD67B77
www.adfweb.com?Product=HD67B78
www.adfweb.com?Product=HD67B79
www.adfweb.com?Product=HD67B80
www.adfweb.com?Product=HD67B81
www.adfweb.com?Product=HD67B84
Do you have an your customer protocol?
See the following links:
www.adfweb.com?Product=HD67003
Do you need to choose a device? do you want help?
Ask it to the following link:
www.adfweb.com?Cmd=helpme
INFO:
www.adfweb.com
Revision 1.000
Page 1 of 26
(OPC UA Server)
(Serial)
(Modbus Slave)
(PROFIBUS Slave)
(CAN)
(CANopen)
(DeviceNet Slave)
(Modbus TCP Slave)
(SNMP Agent)
(EtherNet/IP Slave)
(KNX)
(MQTT)
(BACnet Slave)
(Ethernet)
Phone +39.0438.30.91.31
Advertisement
Table of Contents
Related Manuals for ADF Web HD67B82-A1
Summary of Contents for ADF Web HD67B82-A1
- Page 1 Industrial Electronic Devices User Manual Revision 1.000 English IEC 61850 Server / PROFINET Master - Converter (Order Code: HD67B82-A1) for Website information: www.adfweb.com/?Product=HD67B82 for Price information: www.adfweb.com/?Price=HD67B82-A1 For others PROFINET Master devices, see also the following links: Benefits and Main Features: PROFINET Master from/to …...
-
Page 2: Table Of Contents
User Manual IEC 61850 Server / PROFINET Master Document code: MN67B82_ENG Revision 1.000 Page 2 of 26 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Page Dear customer, we thank you for your attention and we remind you that you need to check that the following document is: INDEX UPDATED DOCUMENTATION Updated... -
Page 3: Security Alert
User Manual IEC 61850 Server / PROFINET Master Document code: MN67B82_ENG Revision 1.000 Page 3 of 26 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and safety regulation are required for each individual application. -
Page 4: Example Of Connection
User Manual IEC 61850 Server / PROFINET Master Document code: MN67B82_ENG Revision 1.000 Page 4 of 26 Industrial Electronic Devices EXAMPLE OF CONNECTION: ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 5: Connection Scheme
User Manual IEC 61850 Server / PROFINET Master Document code: MN67B82_ENG Revision 1.000 Page 5 of 26 Industrial Electronic Devices CONNECTION SCHEME: Figure 1: Connection scheme for HD67B82-A1 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 6: Characteristics
Page 6 of 26 Industrial Electronic Devices CHARACTERISTICS: The HD67B82-A1 is a IEC 61850 Server / PROFINET Master converter. It allows the following characteristics: Up to 1500 bytes in reading and 1500 bytes in writing; Two-directional information between PROFINET and IEC 61850;... -
Page 7: Power Supply
POWER SUPPLY: The devices can be powered between a wide range of tensions. For more details see the two tables below. Vmin Vmax Vmin Vmax HD67B82-A1 Consumption at 24V DC: Device W/VA HD67B82-A1 Caution: Not reverse the polarity power HD67B82-A1 ADFweb.com Srl –... -
Page 8: Function Modes
User Manual IEC 61850 Server / PROFINET Master Document code: MN67B82_ENG Revision 1.000 Page 8 of 26 Industrial Electronic Devices FUNCTION MODES: The device has got two functions mode depending of the position of the Dip1 of ‘Dip-Switch A’: The first, with Dip1 in Off position (factory setting), is used for the normal working of the device. The second, with Dip1 in On position, is used for upload the Project/Firmware. -
Page 9: Leds
User Manual IEC 61850 Server / PROFINET Master Document code: MN67B82_ENG Revision 1.000 Page 9 of 26 Industrial Electronic Devices LEDS: The device has got six LEDs that are used to give information of the functioning status. The various meanings of the LEDs are described in the table below. Normal Mode Boot Mode ON: Device powered... -
Page 10: Ethernet
ETHERNET: The Ethernet connection must be made using Connector3 and Connector4 of HD67B82-A1 with at least a Category 5E cable. The maximum length of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. To connect the device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC/PLC/other is recommended the use of a cross cable. -
Page 11: Use Of Compositor Sw67B82
User Manual IEC 61850 Server / PROFINET Master Document code: MN67B82_ENG Revision 1.000 Page 11 of 26 Industrial Electronic Devices USE OF COMPOSITOR SW67B82: To configure the Converter, use the available software that runs with Windows called SW67B82. It is downloadable on the site www.adfweb.com and its operation is described in this document. -
Page 12: New Project / Open Project
User Manual IEC 61850 Server / PROFINET Master Document code: MN67B82_ENG Revision 1.000 Page 12 of 26 Industrial Electronic Devices NEW CONFIGURATION / OPEN CONFIGURATION: “New Configuration” button creates the folder which contains the entire device’s configuration. A device’s configuration can also be imported or exported: To clone the configurations of a programmable “IEC 61850 Server / PROFINET Master - Converter”... -
Page 13: Software Options
User Manual IEC 61850 Server / PROFINET Master Document code: MN67B82_ENG Revision 1.000 Page 13 of 26 Industrial Electronic Devices SOFTWARE OPTIONS: By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the compositor. In the section “Language”... - Page 14 User Manual IEC 61850 Server / PROFINET Master Document code: MN67B82_ENG Revision 1.000 Page 14 of 26 Industrial Electronic Devices In the section “Software Settings”, it is possible to enable/disable some keyboard’s commands for an easier navigation inside the tables contained in the different sections of the software.
-
Page 15: Set Communication
User Manual IEC 61850 Server / PROFINET Master Document code: MN67B82_ENG Revision 1.000 Page 15 of 26 Industrial Electronic Devices SET COMMUNICATION: This section define the fundamental communication parameters of two buses, IEC 61850 and PROFINET. By Pressing the “Set Communication”... -
Page 16: Profinet Access
User Manual IEC 61850 Server / PROFINET Master Document code: MN67B82_ENG Revision 1.000 Page 16 of 26 Industrial Electronic Devices PROFINET ACCESS: By Pressing the “PROFINET Access” button from the main window for SW67B82 (Fig. 2) the window “Definition of PROFINET Devices Present in Network”... - Page 17 User Manual IEC 61850 Server / PROFINET Master Document code: MN67B82_ENG Revision 1.000 Page 17 of 26 Industrial Electronic Devices The means of the fields below are: In the field “Name of Station” is checked, the name of the PROFINET slave is defined; In the field “IP Address”...
- Page 18 User Manual IEC 61850 Server / PROFINET Master Document code: MN67B82_ENG Revision 1.000 Page 18 of 26 Industrial Electronic Devices By clicking on “Modules” button, it is possible to import the modules for the selected PROFINET slave device. The window “Definition Module and/or Submodules of PROFINET Device”...
-
Page 19: Iec61850 Access
User Manual IEC 61850 Server / PROFINET Master Document code: MN67B82_ENG Revision 1.000 Page 19 of 26 Industrial Electronic Devices IEC 61850 ACCESS: By Pressing the “IEC 61850 Access” button from the main window for SW67B82 (Fig. 2) the window “Set Variables Access for IEC 61850” appears (Fig. -
Page 20: Tls Known Certificate
User Manual IEC 61850 Server / PROFINET Master Document code: MN67B82_ENG Revision 1.000 Page 20 of 26 Industrial Electronic Devices TLS KNOWN CERTIFICATE: Figure 7: “TLS Known Certificate” window By pressing the “TLS Known Certificate” button from the Main Window of SW67B82 (Fig. 2) the “Definition the list of Known Certificates” window appears (Fig. -
Page 21: Update Device
User Manual IEC 61850 Server / PROFINET Master Document code: MN67B82_ENG Revision 1.000 Page 21 of 26 Industrial Electronic Devices UPDATE DEVICE: By pressing the “Update Device” button, it is possible to load the created Configuration into the device; and also the Firmware, if necessary. This by using the Ethernet port. - Page 22 User Manual IEC 61850 Server / PROFINET Master Document code: MN67B82_ENG Revision 1.000 Page 22 of 26 Industrial Electronic Devices Note: When you receive the device, for the first time, you also have to update the Firmware in the HD67B82 device. Warning: If Fig.
-
Page 23: Mechanical Dimensions
User Manual IEC 61850 Server / PROFINET Master Document code: MN67B82_ENG Revision 1.000 Page 23 of 26 Industrial Electronic Devices MECHANICAL DIMENSIONS: Figure 10: Mechanical dimensions scheme for HD67B82-A1 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 24: Ordering Informations
Enclosure Type A: 1M, 35mm DIN Rail mounting Device Family HD67B82: IEC 61850 Server / PROFINET Master - Converter Order Code: HD67B82-A1 IEC 61850 Server / PROFINET Master - Converter ACCESSORIES: Order Code: AC34011 35mm Rail DIN - Power Supply 220/240V AC 50/60Hz – 12 V DC Order Code: AC34012 35mm Rail DIN - Power Supply 220/240V AC 50/60Hz –... -
Page 25: Disclaimer
User Manual IEC 61850 Server / PROFINET Master Document code: MN67B82_ENG Revision 1.000 Page 25 of 26 Industrial Electronic Devices DISCLAIMER: All technical content within this document can be modified without notice. The content of the document is a under continual renewal. For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal conditions repairs are charged to the user. -
Page 26: Warranties And Technical Support
User Manual IEC 61850 Server / PROFINET Master Document code: MN67B82_ENG Revision 1.000 Page 26 of 26 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com RETURN POLICY: If while using your product you have any problem and you wish to exchange or repair it, please do the following:...
