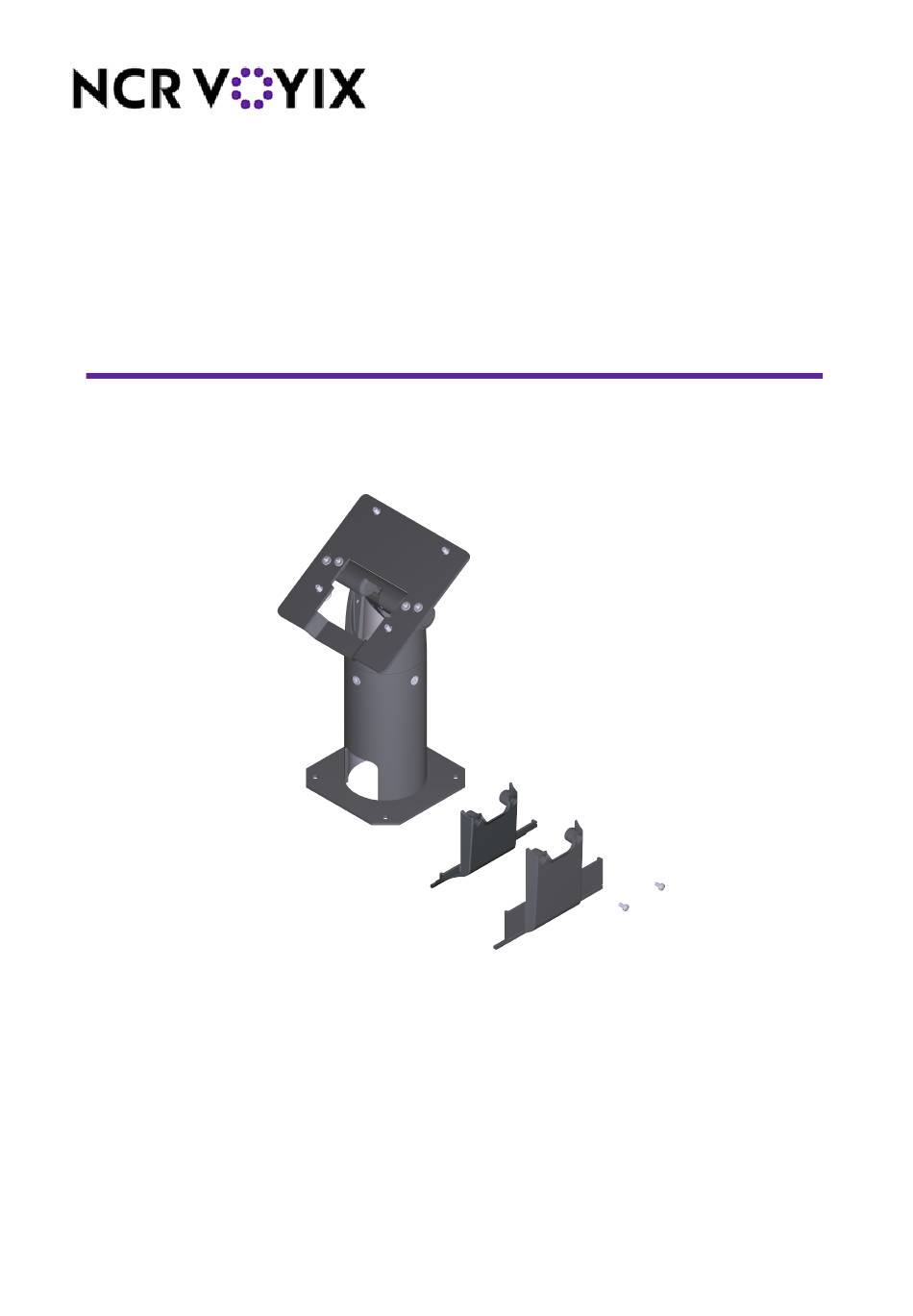

Pole Mount, 7772
Kit Instructions
7772-K400
Issue D
Unauthorized use, reproduction and/or distribution is strictly prohibited
Confidential and proprietary information of NCR Corporation.

Advertisement

loading
Need help?

Need help?

Do you have a question about the VOYIX 7772 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NCR VOYIX 7772

Summary of Contents for NCR VOYIX 7772

  • Page 1 Pole Mount, 7772 Kit Instructions 7772-K400 Issue D Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited...

  • Page 2: Copyright

    NCR, therefore, reserves the right to change specifications without prior notice. All features, functions, and operations described herein may not be marketed by NCR in all parts of the world. In some instances, photographs are of equipment prototypes. Therefore, before using this document, consult with your NCR representative or NCR office for information that is applicable and current.

  • Page 3: Table Of Contents

    Table of Contents Copyright Pole Mount Kit Contents Dimensions Mounting Holes Installation Procedure With Quick-Release Bracket Without Quick-Release Bracket Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
  • Page 4 Revision Record Issue Date Remarks Aug 2020 First Issue Mar 2021 Added Dimensions section Dec 2021 Added Warning statement May 2022 Added Mounting Hole Dimensions Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.

  • Page 5: Pole Mount

    Pole Mount This kit provides a Pole Mount for the NCR CX7 All-in-One POS (7772) or NCR CX5 All-in- One POS (7773) with Remote I/O. Kit Contents below Dimensions on the next page Installation Procedure on the next page With Quick-Release Bracket on page 7 Without Quick-Release Bracket on page 13...

  • Page 6: Dimensions

    Head directly on the hinge of the Pole Mount and the Cable Covers will be used. With Quick-Release Bracket on the next page Without Quick-Release Bracket on page 13 Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.

  • Page 7: With Quick-Release Bracket

    Remove the two (2) screws that secure the Cable Cover to the Back Cover. b. Rotate and unhook the Cable Cover from the Back Cover. Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
  • Page 8 Remove the Ethernet Cable from the Cable Management Hook then disconnect the Cable. 4. Loosen the two (2) captive screws that secure the Back Cover to the Display. Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
  • Page 9 5. Rotate the Back Cover away from the Display and unhook the Back Cover Tabs. Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
  • Page 10 6. Remove the four (4) screws securing the Display Back Cover to the hinge of the Base. Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
  • Page 11 Insert the Back Cover Tabs into the openings in the back of the Display, then rotate the Back Cover onto the Display. b. Secure the Back Cover with two (2) captive screws. Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
  • Page 12 Connect the Ethernet Cable until latched and secure the cable under the Cable Management Hook. b. Connect the 180-degree USB-C Cable and tighten the thumbscrew. 9. Route the Cables through the Bracket and down the Pole. Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.

  • Page 13: Without Quick-Release Bracket

    Always use a soft material (cloth, foam) to protect the display screen when placing the terminal face down. 2. Remove the Cable Cover. a. Remove the two (2) screws that secure the Cable Cover to the Back Cover. Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
  • Page 14 Loosen the thumbscrew of the 180-degree USB-C Cable then disconnect the Cable. b. Remove the Ethernet Cable from the Cable Management Hook then disconnect the Cable. Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
  • Page 15 4. Loosen the two (2) captive screws that secure the Back Cover to the Display. Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
  • Page 16 5. Rotate the Back Cover away from the Display and unhook the Back Cover Tabs. Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
  • Page 17 6. Remove the four (4) screws securing the Display Back Cover to the hinge of the Base. Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
  • Page 18 7. Install the Display Back Cover on the hinge of the Pole (4 screws). Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
  • Page 19 Insert the Back Cover Tabs into the openings in the back of the Display, then rotate the Back Cover onto the Display. b. Secure the Back Cover with two (2) captive screws. Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
  • Page 20 Connect the Ethernet Cable until latched and secure the cable under the Cable Management Hook. b. Connect the 180-degree USB-C Cable and tighten the thumbscrew. 10. Route the Cables through the Pole. Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
  • Page 21 Hook the bottom of the Cable Cover to the Back Cover, then rotate the Cable Cover into place. b. Secure the Cable Cover with two (2) screws. Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
  • Page 22 12. Install the Pole on the countertop using four (4) M4 wood screws (one on each corner). Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
