KIT  INSTRUCTIONS
Wall Mount Power Supply Bracket
7761–K002
Issue B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7761-K002 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for NCR 7761-K002

  • Page 1 KIT  INSTRUCTIONS Wall Mount Power Supply Bracket 7761–K002 Issue B...
  • Page 2 NCR, therefore, reserves the right to change specifications without prior notice. All features, functions, and operations described herein may not be marketed by NCR in all parts of the world. In some instances, photographs are of equipment prototypes. Therefore, before using this document, consult with your NCR representative or NCR office for information that is applicable and current.
  • Page 3 Revision Record Issue Date Remarks Jan 2016 First Issue May 2017 Removed reference to VESA...

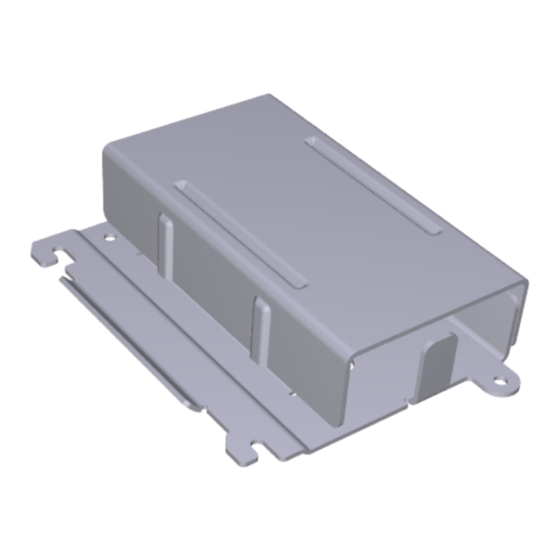

  • Page 4 Wall Mount Power Supply  Bracket Introduction This kit provides a bracket to mount a P1535/P1235 power supply on a vertical surface.
  • Page 5 7761-K002 (Wall Mount Power Supply Bracket) Installation Procedure 1. Secure the Power Supply Bracket on a vertical surface with the proper type of screws (2) for the surface type. Use the dimensions shown below or use the bracket as a template to mark the location of the holes.
  • Page 6 7761-K002 (Wall Mount Power Supply Bracket) 2. Insert the power supply into the bracket (AC Connector on top). 3. Replace the front cover of the bracket. 4. Secure the bracket with the thumbscrew and the AC Power Cord with a cable tie.
