KIT  INSTRUCTIONS
2-in-1 Dallas/Addimat Sign-In
Release 1.0
7761-K143
Issue A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7761-K143 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for NCR 7761-K143

  • Page 1 KIT  INSTRUCTIONS 2-in-1 Dallas/Addimat Sign-In Release 1.0 7761-K143 Issue A...
  • Page 2 NCR, therefore, reserves the right to change specifications without prior notice. All features, functions, and operations described herein may not be marketed by NCR in all parts of the world. In some instances, photographs are of equipment prototypes. Therefore, before using this document, consult with your NCR representative or NCR office for information that is applicable and current.
  • Page 3 Revision Record Issue Date Remarks Jun 2016 First Issue...

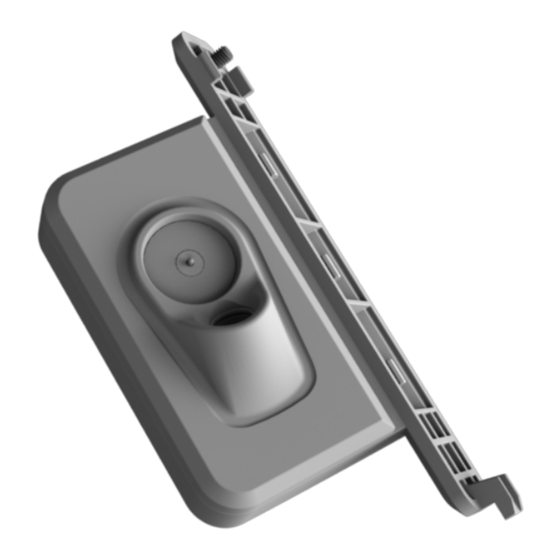

  • Page 4 2-in-1 Dallas/Addimat Sign-In Introduction This kit provides the components to add a 2–in–1 Dallas/Addimat Sign–In.
  • Page 5 7761 - K143 (2-in-1 Dallas/Addimat Sign-In) Installation Procedure 1. Open the Head Assembly. 2. Route and connect the Dallas Key Cable. a. Attach the Ferrite Bead to the Dallas Key Cable. b. Connect the Dallas Key cable to the MSR1 connector c.
