KIT  INSTRUCTIONS
Spacer for Customer Display Arm Extension
7761–K463
Issue A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7761-K463 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for NCR 7761-K463

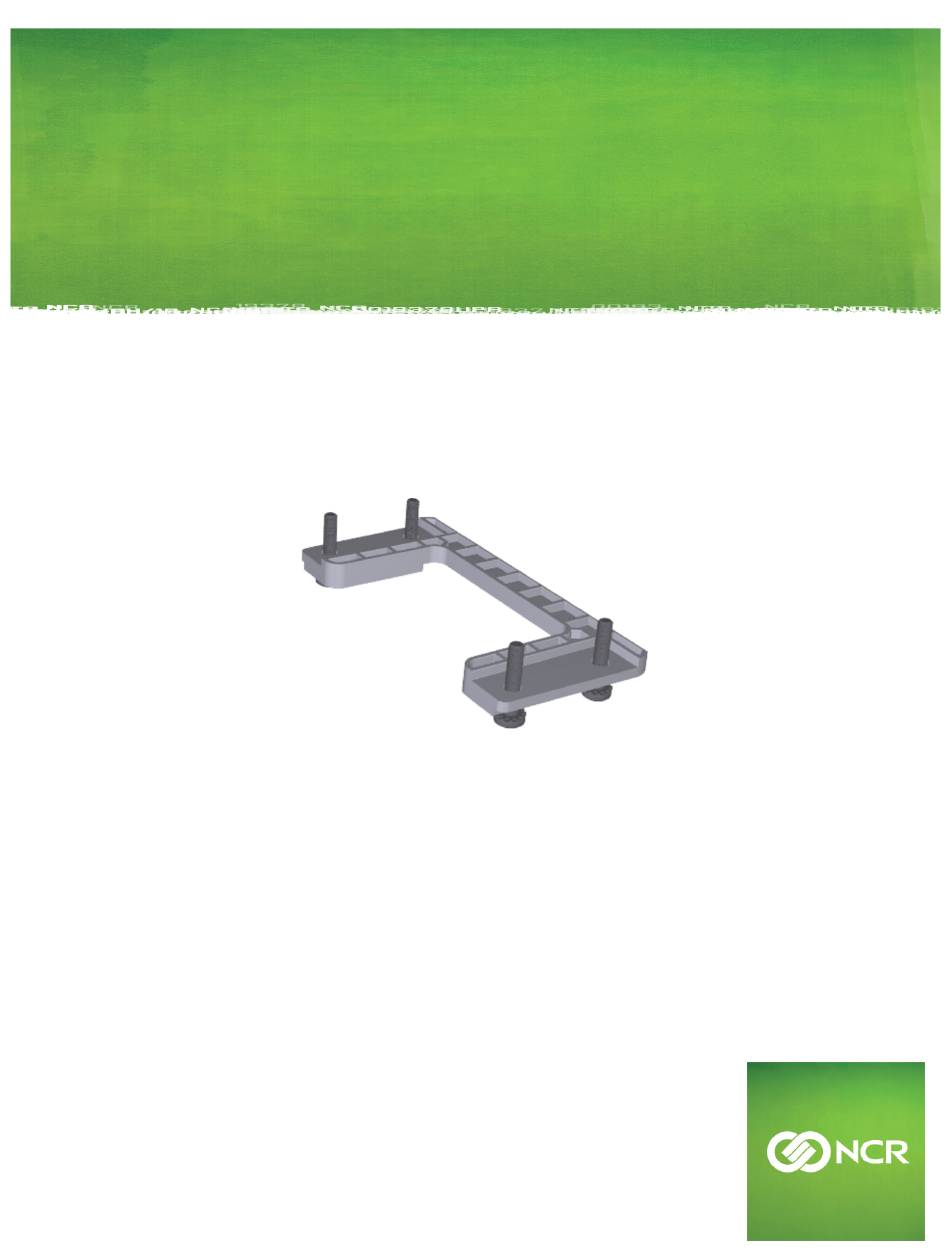

  • Page 1 KIT  INSTRUCTIONS Spacer for Customer Display Arm Extension 7761–K463 Issue A...
  • Page 2 NCR, therefore, reserves the right to change specifications without prior notice. All features, functions, and operations described herein may not be marketed by NCR in all parts of the world. In some instances, photographs are of equipment prototypes. Therefore, before using this document, consult with your NCR representative or NCR office for information that is applicable and current.
  • Page 3 Revision Record Issue Date Remarks Jan 2016 First Issue...
  • Page 4 Spacer for Customer Display Arm  Extension Introduction This kit provides the components to add a spacer to the arm extension mount when integrating an external customer display on the P1535/P1235 POS. The spacer can be used on several kits and the procedure below discusses how to add it to the 7761-K460 kit as an example.
  • Page 5 7761-K463 (Spacer for Customer Display Arm Extension) Installation Procedure 1. Place the spacer on top of the base of the customer display stand. 2. Route the cable from the customer display up through the P-Series stand and install the Spacer and customer display onto the bottom of the stand. Secure with screws...
