c:scape and Frameone Worksurfaces
1

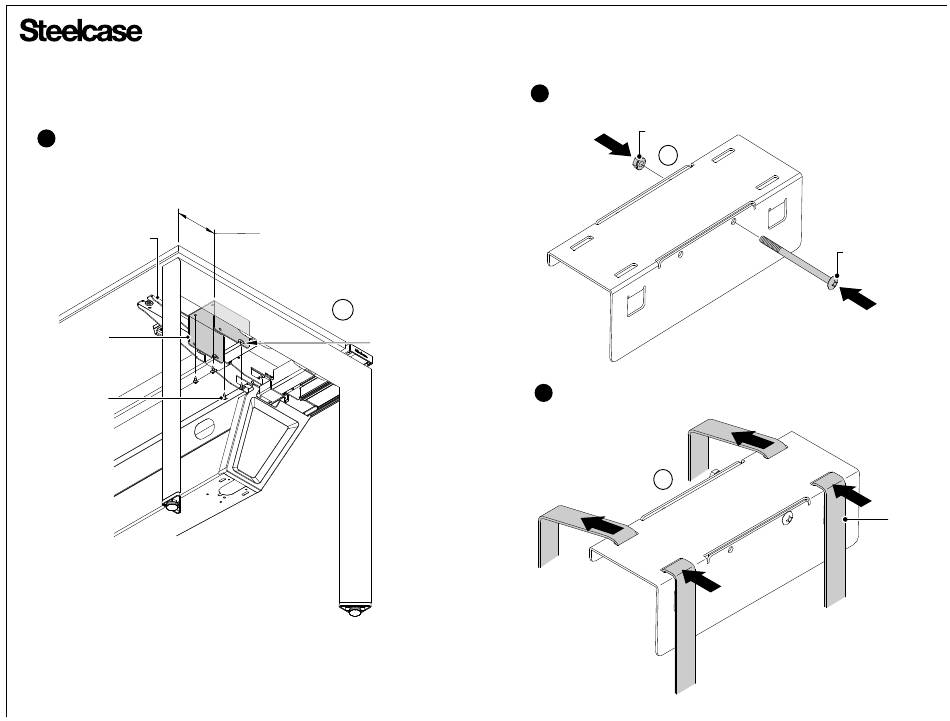

Place base bracket on underside of worksurface with
slot towards the rear of the desk and base bracket no
more than 1/4" from the cantilever to allow maximum
clearance between CPU and desk leg. Install with
four (4) 5/8" long screws (included).
CANTILEVER
BASE
BRACKET
SCREW
Setback the base bracket, as shown,
to allow the CPU to be flush with the
front edge of the worksurface. For
example: Setback 6-3/4" when using
an 18" deep CPU.
1
SLOT
2
Insert one (1) bolt through sling support bracket and
loosely install the nut on the opposite side.
NUT
2
3
Thread straps through sling support bracket and place
assembly onto the CPU.
3
BOLT
STRAP
Page 2 of 7
21078501 Rev D
