Ology Worksurfaces with Overhang
1

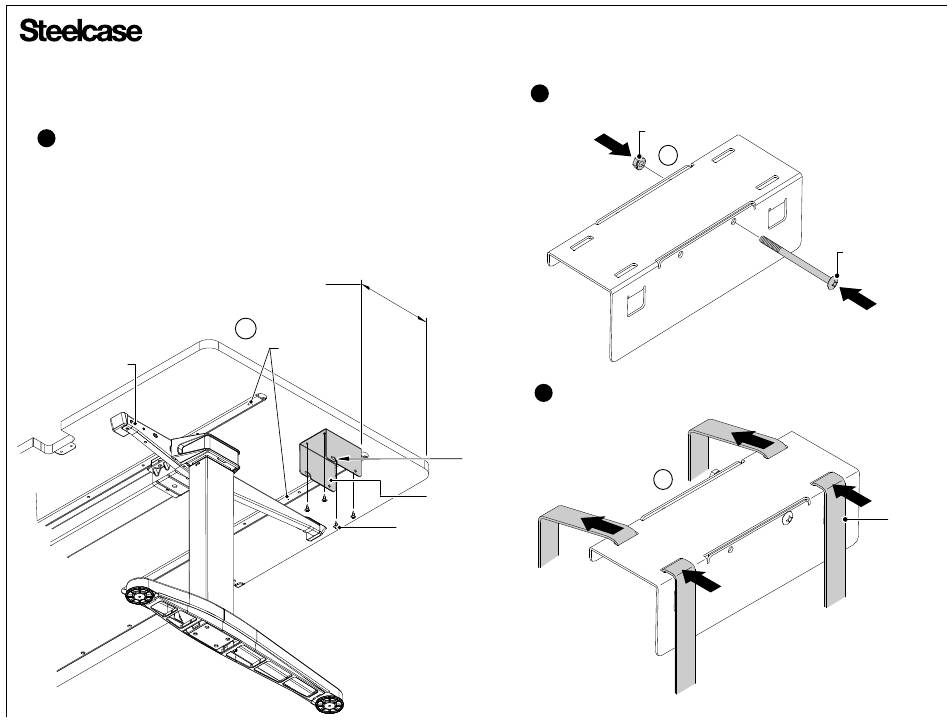

Place base bracket on underside of worksurface with
slot towards the rear of the desk and base bracket no
more than 1/4" from the cantilever to allow maximum
clearance between CPU and desk leg. Do not place
the base bracket over the worksurface reinforcing
brackets. Install with four (4) 5/8" long screws (included).
Setback the base bracket, as shown, to allow
the CPU to be flush with the front edge of the
worksurface. For example: Setback 6-3/4" when
using an 18" deep CPU. Note that when mounting
on Ology worksurfaces with overhang, it may not
be possible to mount the CPU flush with the front
of the worksurface.
CANTILEVER
1
WORKSURFACE
REINFORCING
BRACKETS
SCREW
2
Insert one (1) bolt through sling support bracket and
loosely install the nut on the opposite side.
3
Thread straps through sling support bracket and place
assembly onto the CPU.
SLOT
BASE
BRACKET
NUT
2
3
BOLT
STRAP
Page 6 of 7
21078501 Rev D
