Ology Worksurfaces without Overhang
1

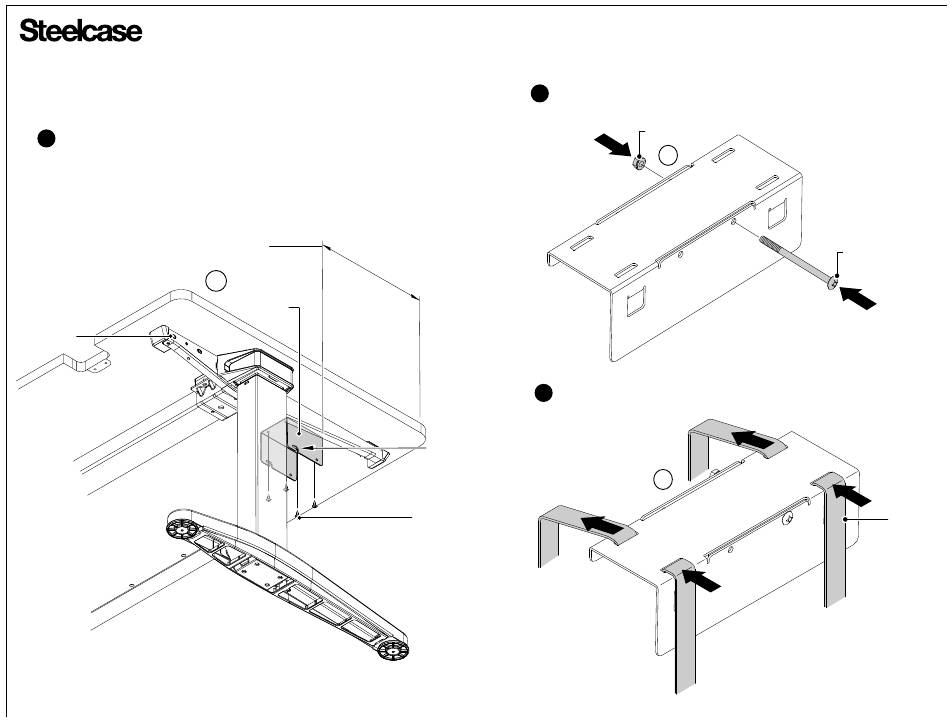

Place base bracket on underside of worksurface with
slot towards the rear of the desk and base bracket no
more than 1/4" from the cantilever to allow maximum
clearance between CPU and desk leg. Install with
four (4) 5/8" long screws (included).
Setback the base bracket, as shown,
to allow the CPU to be flush with the
front edge of the worksurface.For
example: Setback 6-3/4" when using
an 18" deep CPU.
CANTILEVER
1
BASE
BRACKET
2
Insert one (1) bolt through sling support bracket and
loosely install the nut on the opposite side.
3
Thread straps through sling support bracket and place
assembly onto the CPU.
SLOT
SCREW
NUT
2
3
BOLT
STRAP
Page 4 of 7
21078501 Rev D
