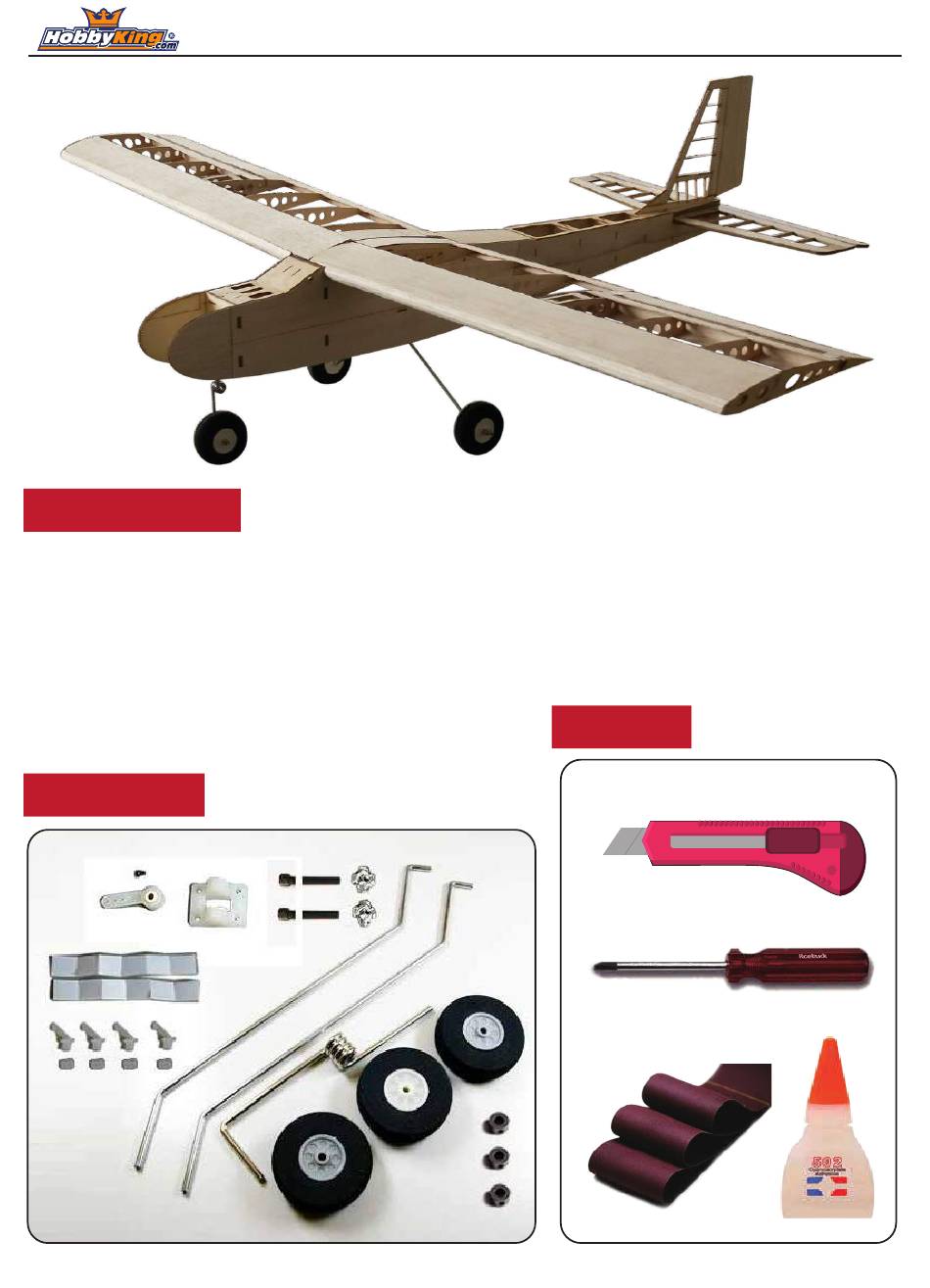

- Page 1 T46 Balsa Training Assembling Manual Specification Wingspan: 1550mm Fuselage: 1150mm 10cc gasoline engine: 40-50 class methanol GP Flying Weight: 2.3kg EP Flying Weight: 1.9kg Motor: 2824-3520 ESC: 60A Servo: Futaba S3003 (standard)*5 Tools Prop: 12 inch Battery: 4S 4000mAh Accessories...
- Page 2 T46 Balsa Training Assembling Manual Assemble the Fuselage The above photo needs the magnets to fix. ２...
- Page 3 T46 Balsa Training Assembling Manual Assemble the Fuselage The above photo needs magnets. Assemble the Wing Insert one hard pipe through the each hollow-out holes marked in red above photo,in order to maintain level of the whole wing. ３...
- Page 4 T46 Balsa Training Assembling Manual need to polish F6 is the small part of the aileron, pls do not glue onto the rib. Cut into 4pcs small cubes from H6 and fill in as above photo shown. ４...
- Page 5 T46 Balsa Training Assembling Manual Cut off, glue and Ensure the polishing polish into triangle, radian according to in order to connect the C14 shape. to the aileron. Fix the B15 board by claw nuts when assemble the wing. Assemble the Tail Wing Assemble the motor mount Assemble the landing gear ５...
- Page 6 T46 Balsa Training Assembling Manual Position of center of gravity EP Version GP Version ６...
- Page 7 T46 Balsa Training Assembling Manual 1.5mm Plywood 2mm Plywood 3mm Plywood 1.5mm Balsawood Sheet Part Numbers...
- Page 8 T46 Balsa Training Assembling Manual 2mm Balsawood 3mm Balsawood 5mm Balsawood 6mm Balsawood K6 K6 Sheet Part Numbers...
