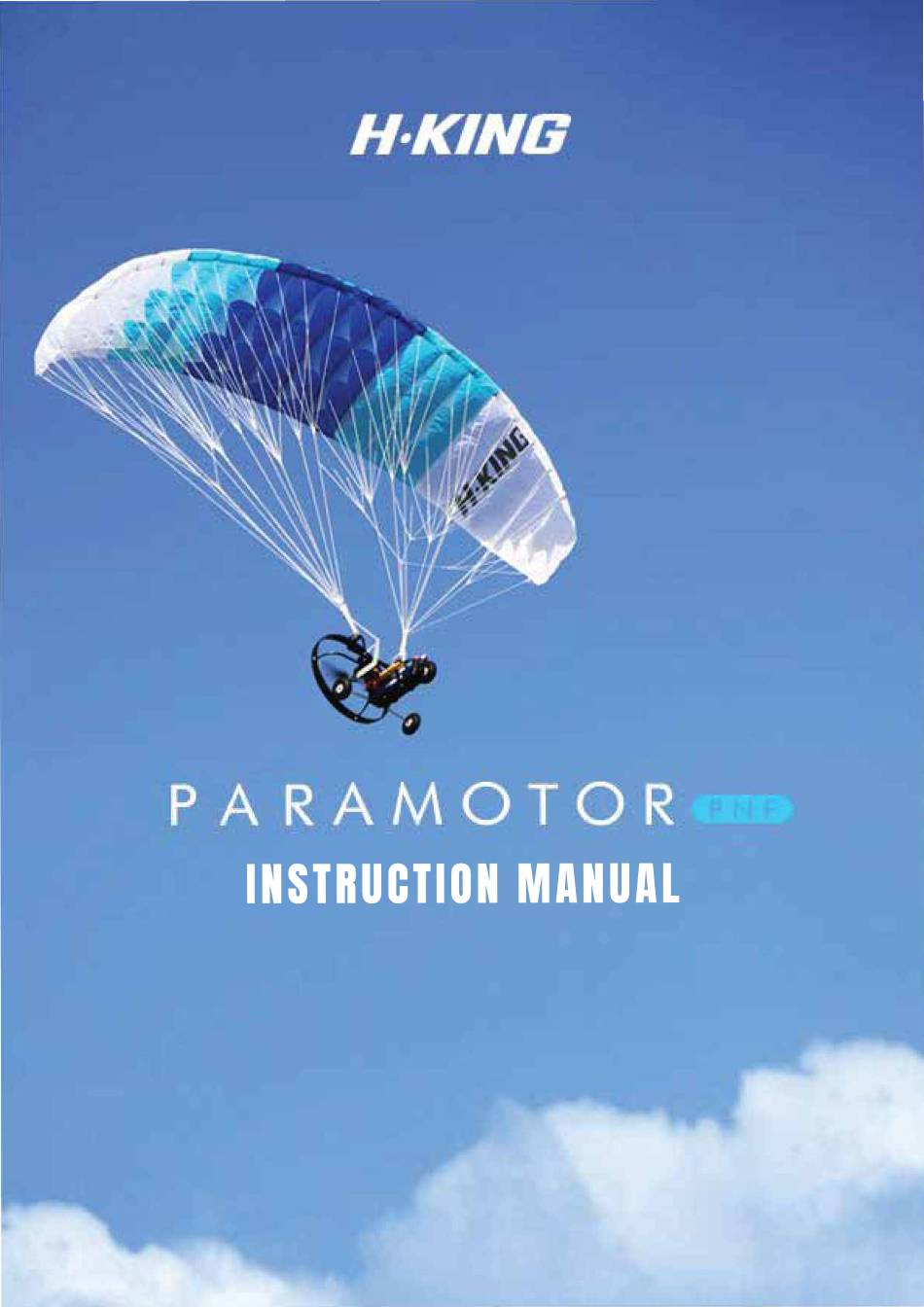

- Page 1 Please read the manual care1u11v belore operating this model.
-
Page 2: Table Of Contents

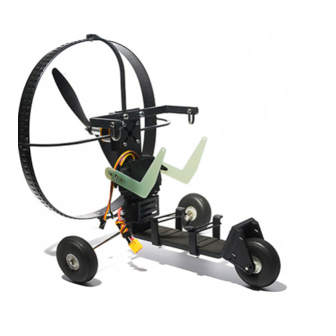

Manual Contents Preface/Features/Specifications: ------------------------------------- Warnings and Safety notes: -------------------------------------------- Contents of Kit: ------------------------------------------------------------ General Assembly: --------------------------------------------------- 5-17 Radio setup: -------------------------------------------------------------- Safety Precautions: ----------------------------------------------------- Recommended Accessories: ------------------------------------- 21-22... - Page 3 The HobbyKing™ Paramotor is extremely easy to fly due to its very gentle and stable flight characteristics yet once you are used to it, it will perform loops and rolls with ease. Due to the design, the huge high performance 2250mm wing opens quickly for easy launching and it will retain its shape even in turbulence.
-
Page 4: Warnings And Safety Notes
Warnings and Safety notes... -
Page 5: Contents Of Kit
Contents of Kit... -
Page 6: General Assembly
General Assembly Step 1: Remove the undercarriage retaining bracket. Step 2: Fit the retaining bracket over the undercarriage wire. - Page 7 Step 3: Using the hex head screws refit the undercarriage bracket with the undercarriage wire positioned between the bracket and the base of the airframe. Step 4: Refit the nyloc nuts and tighten the assembly.
- Page 8 Step 5: At this point we need to remove the motor and motor mount. The reason for this is that the the aluminum propguard supporting arms have to be installed behind the mount.
- Page 9 Step 6: Push the hex screws through and remove motor and motor mount completely, this makes fitting the supports easier.
- Page 10 Step 7: Clip the 4 prop guard support arms into the slots in the rear of the motor mount. These can be quite a tight fit so you may need to squeeze them fully home with a pair of pliers or similar tool. Assembly should look like this when all 4 are clipped into position.
- Page 11 Step 8: As the following pictures show refit the motor and motor mount clamping the prop guard supports between the airframe and the motor mount.
- Page 12 Step 9: Fit the flybar to the front of the airframe using the longer bolts through the top holes of the motor mount. Note: Do not tighten the nuts until you have all 8 bolts through the mount and frame.
- Page 13 Note: The prop guard is aerofoiled, please ensure you fit it the correct way around, see picture above.
- Page 14 Step 10: Clip all 4 of the prop guard supports into the slots on the prop guard.
- Page 15 Step 11: Feed a cable tie through the hole in the prop guard where the support clips to the guard. Do this to all 4 supports and tighten the cable ties to secure the prop guard. Make sure you remove the excess length of cable tie once tightened.
- Page 16 Step 12: Fit the propeller assembly, please ensure you fit the prop the correct way round as shown above. It is a standard tractor prop so must face forward in the direction of flight. Step13: Tighten the prop nut using the method shown in the picture above.
- Page 17 Step 14: Fit the shackles through the outer holes either side of the flybar. Step 15: Set up your radio and connect the servos to the receiver. Power up the receiver and center the roll and pitch servos (watch the set up video before you do this part).
- Page 18 Step 16: Secure your receiver to the servo housing with the sticky back hook and loop tape. Secure and tidy the servo leads and receiver antenna using cable ties.
-
Page 19: Radio Setup
Radio setup Ensure the servo travel direction is set according to the picture above 1. Ensure the servo travel direction is set according to the picture above 2. Please setup a new model and bind to the receiver 3. Ensure the propeller is removed 4. - Page 20 This is the basic airframe finished, the fitting of the Parawing and the setting up of your computer radio is quite involved. We recommend you watch these 2 videos on YouTube to achieve the best results for this part of the assembly and for setting the radio up. https://www.youtube.com/watch?v=GqNa3J8IucI&feature=youtu.be https://www.youtube.com/watch?v=d1xYHHhl_tE&feature=youtu.be Note: A flying video will be available shortly, check under the video section of this...
-
Page 21: Safety Instructions
9. The operator will bear the full responsibility of flying and the proper operation and usage of this model. We at Hobbyking will not be responsible for any liability or loss due to improper use of this model. -
Page 22: Recommended Accessories
Recommended Accessories FrSky Taranis Q X7 Digital Telemetry FrSky 2.4GHz ACCST TARANIS X9D Radio System 2.4GHz ACCST (White- PLUS Digital Telemetry Transmitter no plugs) (Mode 2) (EU) SKU: 236000106-3 SKU: 236000062-0 FrSky Horus X12S Accst 2.4GHz Futaba 10J 10-Channel 2.4GHz Computer Digital Telemetry Radio System Radio System w/R3008SB Receiver (Mode 2) (Texture) - Page 23 Turnigy 5000mAh 3S 20C Lipo Turnigy Graphene Professional Pack w/XT-60 5200mAh 3S 15C LiPo Pack w/XT60 SKU: 9067000276-0 SKU: 9067000105-0 Rhino 5000mAh 3S 50C Lipo Pack w/ Rhino 5000mAh 3S 20C Lipo XT60 Pack w/XT60 SKU: 9952000016-0 SKU: 9952000006-0 ZIPPY Compact 5000mAh 3s HXT 4mm to XT-60 Battery Adapter 40c Lipo Pack (2pcs/bag)
- Page 24 Turnigy Reaktor 250W 10A 1-6S Balance Turnigy Accucel-6 80W 10A Balancer/ Charger Charger LiHV Capable SKU: 9466000004-0 SKU: 9052000071-0 Turnigy P403 LiPoly / LiFe AC/DC Turnigy Reaktor 120 DUO 2x120W Battery Charger (240W) Balance Charger AC/DC SKU: 9070000039-1 (EU Plug) SKU: 9910000003-1 (EU Plug) SKU: 9070000039-2 (UK Plug) SKU: 9910000003-2 (UK Plug)
- Page 25 H•KING H•KING...
