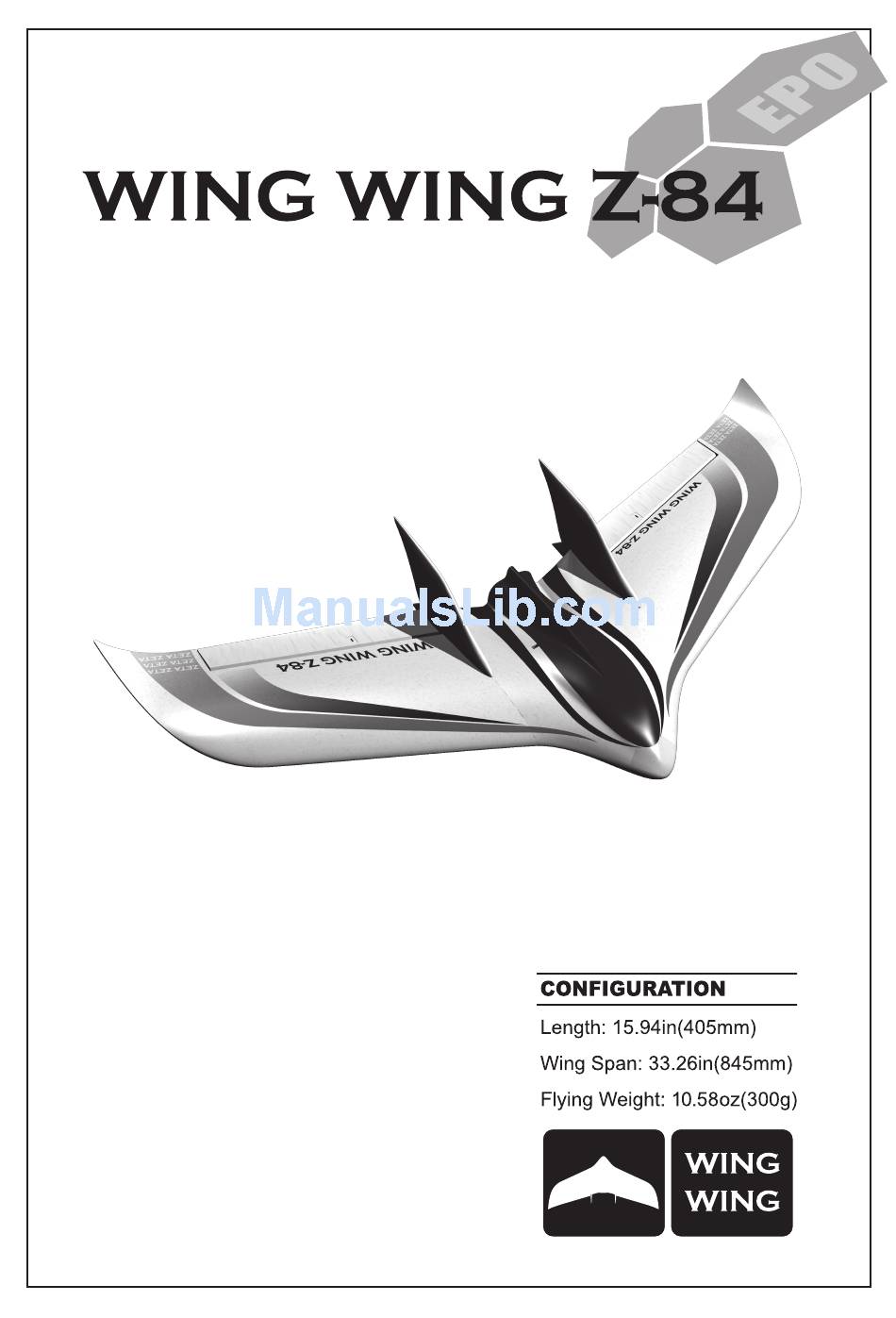

- Page 1 Very Fun & Easy NOTICE...
-
Page 2: Battery Warnings
NOTICE All instructions, warranties and other collateral documents are subject to change at the sole discretion of our company. For up-to-date product literature, Visit our website and click on the support tab for this product. WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product can result in damage to the product, personal property and cause serious injury. -
Page 3: Specifications
Congratulations on purchasing this RC airplane. To ensure your full enjoyment, please check the spare parts prior to assembly. Parts List 33.26in(845mm) Included Ready to Fly Included Included 2900kv brushless outrunner motor Included Included 10A brushless ESC Included Included Included Recommended Receiver: 4 channel 2.4GHz Included... -
Page 4: Wings Assembly
1.1 Wings assembly ▲ Stick the glass fiber tube in the wing panel (glue) and slide it through the fuselage. Then, glue another wing panel to the fuselage. 1.2 Aileron servo ▲ Glue the servo in the wing with the servo arm aligned ▲... -
Page 5: Cable Connection
1.4 Tail fins & canopy ▲ Glue the tail fins on the wing. ▲ Glue the plastic locks C1 on inside canopy. 1.5 Propeller ▲ Install the propeller on the motor shaft with O1. 1.6 Cable connection Servo 1 Servo 2 Servo2 Servo1 Servo1... -
Page 6: Installing Battery
2.1 Installing battery ▲ Turn on the transmitter.(Notice: Put the throttle stick and ▲ Install the battery in the fuselage and complete the connection. trim in the lowest location and center other trims) ▲ Notice: Turn on the delta mixer switch. # 120424... -
Page 7: Adjust Control Throw
For the first try or beginners, please adjust control throw according to the Recommend. 2.5 Center of Gravity(CG) 85~87mm from the junction (wing& fuselage), measured at the fuselage. 85~87mm # 120424...
