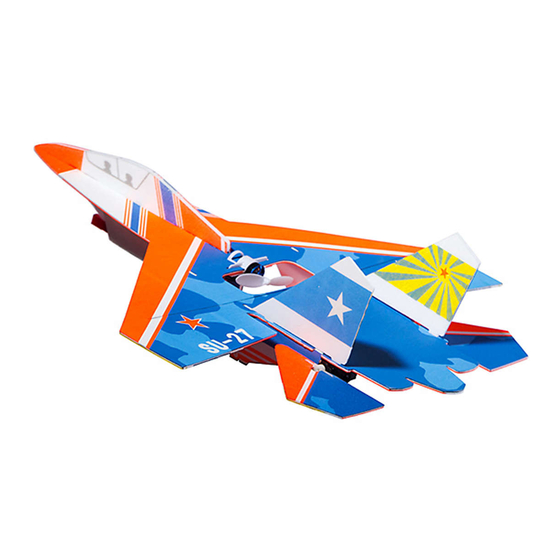

HobbyKing Micro SU-27 Instruction Manual

Table of Contents

Download this manual

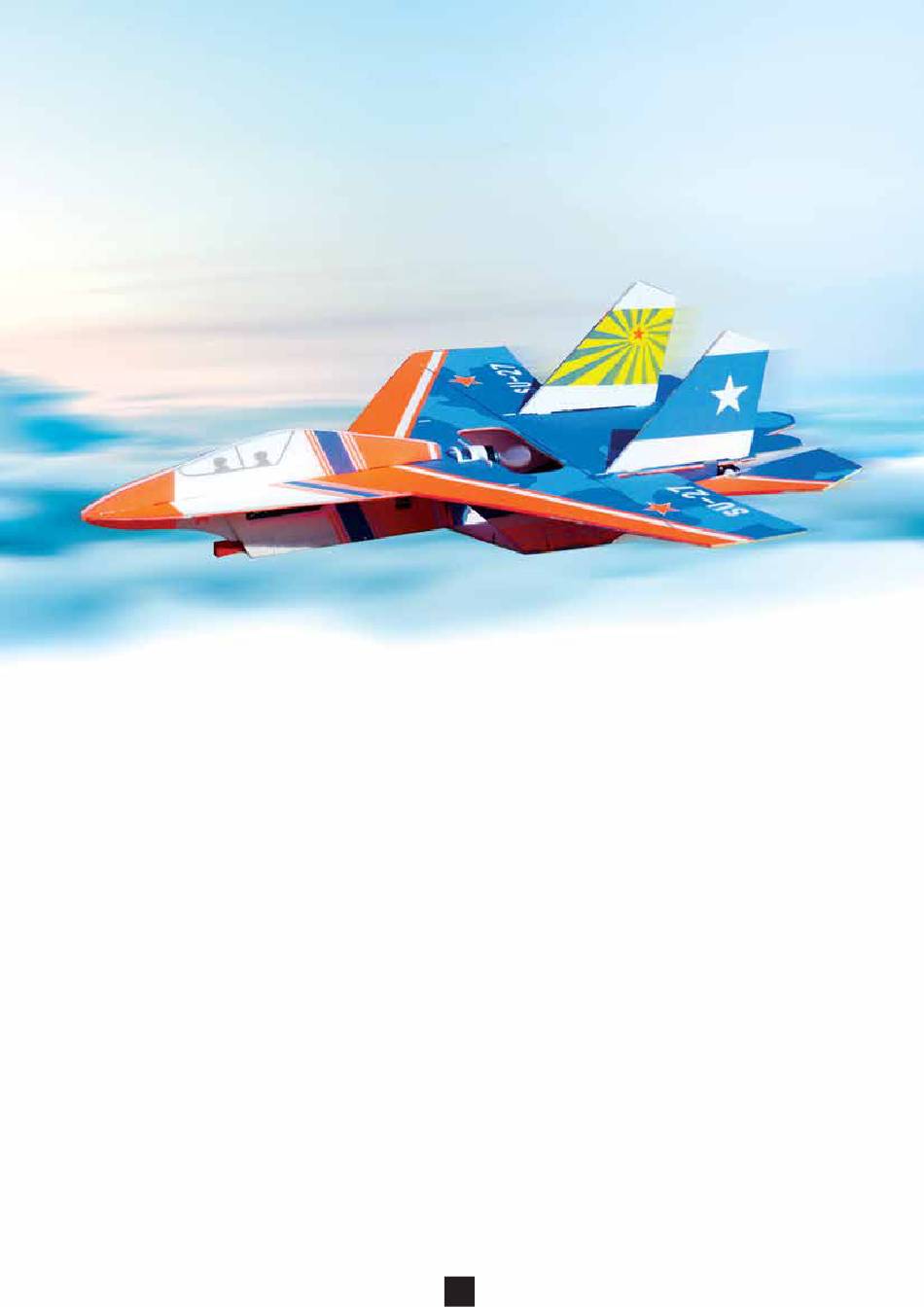

SU27

instruction manual

Wingspan: 300 mm

Length: 360 mm

Takeoff Weight: 36 grams

Motor: Brushless 1103 8000KV

Servo: 2.0g x 2 pcs

Receiver: DSM2 or Frsky, 2.4GHz (for Bind and Fly version)

Battery: 7.4v(2S) 150 mah~180 mah 25C (Recommended)

Place the plane on level ground and connect the flight battery. When the red led on receiver

flashes rapidly, select the bind on transmitter and confirm.

Red led turning solid means binding successful. Disconnect the battery and re-connect; the tail

surfaces will move up and down 4 times which means calibration is successful and the plane is

ready to fly.

If the flight battery is low on power, the binding may fail. Please replace with a fully charged flight

battery pack.

If the plane doesn't work properly, please cycle the Su27 power and your transmitter power by

turning on and off and repeat the above procedure once again.

Attention: Ensure the receiver and the transmitter share the same protocol, if not binding will

fail.

Table of Contents

Do you have a question about the Micro SU-27 and is the answer not in the manual?

Page 1: Instruction Manual
SU27 instruction manual Specifications: Wingspan: 300 mm Length: 360 mm Takeoff Weight: 36 grams Motor: Brushless 1103 8000KV Servo: 2.0g x 2 pcs Receiver: DSM2 or Frsky, 2.4GHz (for Bind and Fly version) Battery: 7.4v(2S) 150 mah~180 mah 25C (Recommended) Binding procedure: Place the plane on level ground and connect the flight battery.
Page 2: Radio Setup
Radio setup: Go to the menu and choose wing mode. Then choose Delta wing. (Consult your radio instruction manual for a proper channel setup) Gyro Mode Setup: Please use the 5th channel to switch between (advance/beginner/gyro off) modes, and the 6th channel to adjust gyro sensitivity. Therefore a 3-position switch for the 5th channel and a rotary switch for the 6th channel are best for this purpose.
Page 3 SU27 Some preparations before your first flight. Work time: 3-5 mins 1. Power on the transmitter and install the flight battery into the slot in the fuselage as shown. (If the battery cannot be fixed properly, please use extra foam sheets to secure it in place.) 2.
Page 4 SU27 Center of Gravity The C.G. position is 31mm from the wing’s leading edge. Control throws setup. For your first flight, adjust the elevon control throws to 80% of the full travel on your radio. After you have become accustomed to the planes flying characteristics you can adjust the travels accordingly to suit your style of flying.
