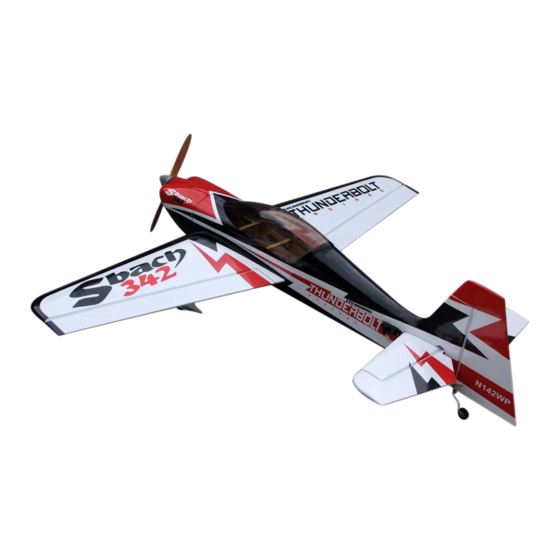

SBACH 55

Specification:

Length:
1397mm(55
)
Wing span:
1397mm(55
)
Wing area:
37sq.dm (4sq.ft)
Wing loading: 59.5g/sq.dm(19.5oz/sq.ft)
Flying weight: 2.2kg(4.8lbs)
Radio:
6ch & 5servos
Engine:
4-cycle 52-70
2-cycle 40-52
Motors:
4250 510KV
ESC:
60A
Battery:
6S 2200MAH 20C
Propeller:
14*7

SAFETY PRECAUTIONS

INSTRUCTION MANUAL

This R/C airplane is not a toy!
(The people under 18 years old is forbidden from flying this model)
First-time builders should seek advice from people having building
experience.If misused or abused,it can cause serious bodily injury
and damage to property.
Fly only in open areas and preferably at a dedicated R/C flying site.
We suggest having a qualified instructor carefully inspect your
airplane before its first flight.Please carefully read and follow all
instructions included with this airplane,your radio control system
and any other components purchased separately.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SBACH 55" and is the answer not in the manual?

Questions and answers

Summary of Contents for HobbyKing SBACH 55"

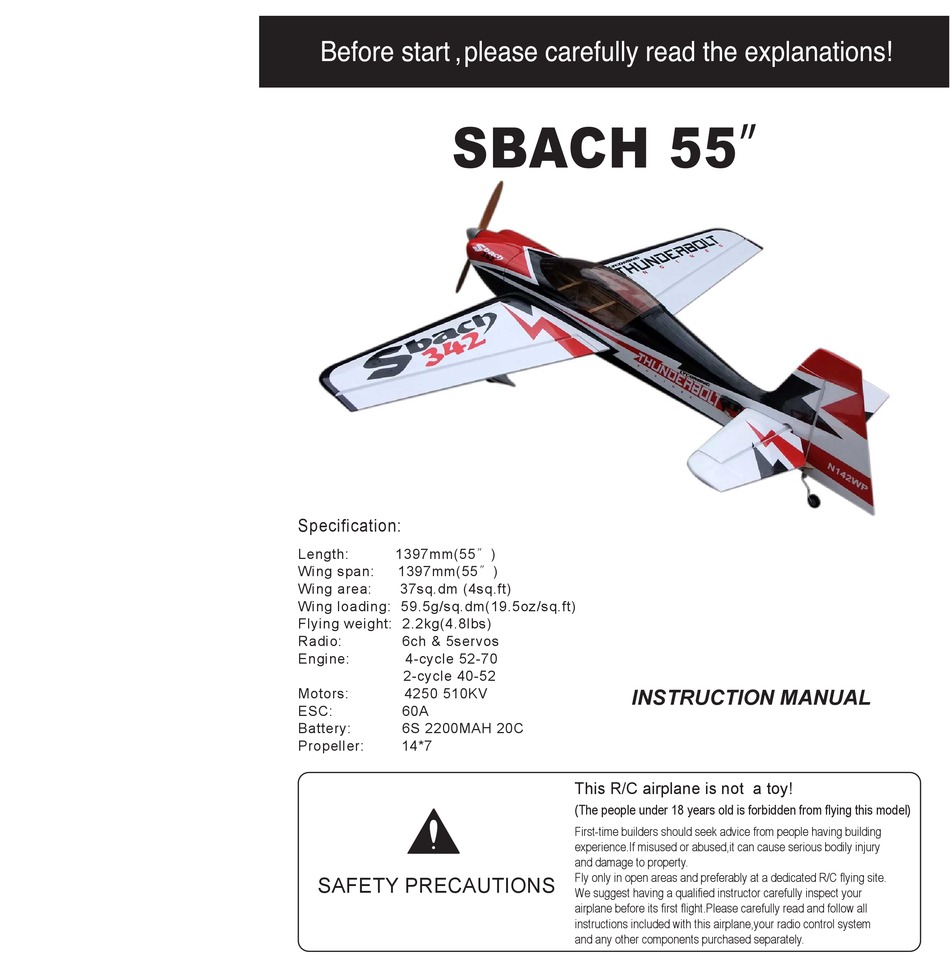

  • Page 1: Instruction Manual

    SBACH 55 Specification: Length: 1397mm(55 Wing span: 1397mm(55 Wing area: 37sq.dm (4sq.ft) Wing loading: 59.5g/sq.dm(19.5oz/sq.ft) Flying weight: 2.2kg(4.8lbs) Radio: 6ch & 5servos Engine: 4-cycle 52-70 2-cycle 40-52 Motors: 4250 510KV INSTRUCTION MANUAL ESC: Battery: 6S 2200MAH 20C Propeller: 14*7 This R/C airplane is not a toy! (The people under 18 years old is forbidden from flying this model) First-time builders should seek advice from people having building experience.If misused or abused,it can cause serious bodily injury...
  • Page 2 Adjustment of the rudder, be sure it can work perfectly. Adjustment of the elevator,be sure it can work perfectly. (with 5 servos), RUDDER Side View ELEVATOR Top view Top view 50mm 80mm 4 channel radio for aiplane is highly recommended for this model. 50mm 80mm Position for...
  • Page 3 SBACH 55” packing list Trim the PVC parts along the shaded line. The specification of the cowling. 177mm Double-sided adhesive Rudder Fuselage Drill holes to appropriate position in the cowling and assemble Assemble the undercarriage to the fuselage with screws. the cowling to the fuselage with TP screws as illustration.
  • Page 4 Assemble the wheels and wheel pants to the landing SBACH 55” packing list Assemble the motor as below. gears with screws. Package1 Package4 Nut (4mm) Washer (4x8mm) Washer (4x12mm) Taillanding gear (2mm) Screw (4x20mm) TP Screw (2.3x12mm) Wheel(50mm) 4.2mm Screw (4x40mm) Wheel(30mm) Screw (4x35mm) Screw (4x40mm)
  • Page 5 Assemble the servo of the throttle in the fuselage. Assemble the aileron to main wing with instant type The side view when the motor install completion. Accessory list for the coming installation steps. CA glue. Rod (2x300mm) TP Screw (2.3x12mm) Pin hinge(24x24mm) Collar (2mm) Washer(2x6mm)
  • Page 6 Assemble the wing to the fuselage and insert the other side Assemble the engine. Assembly of the fuel tank. Accessory list for the coming installation steps. main wing to the fuselage via main wing joiner as illustration. Screw (4x35mm) Washer (4x8mm) Main wing joiner (16x534mm) Screw (4x35mm) Washer (4x8mm)
  • Page 7 The sketch map of how the steel wires works for the Trim the covering carefully to appropriats position in the stabilizer The front view once the engine install completion. Glue the pinned hings to appropriate slots. rudder. and insert it into fuselage space and cheek the alignment. Pin hinge(24x24mm) Make sure hinges are mounted in the same line.
  • Page 8 Trim a slot and drill a hole in the rudder for helping Lock the linkage to the control horn with screws and nuts Glue the rudder to the vertical fin. Accessory list for the coming installation steps. assemble the tail landing to it. as below.
