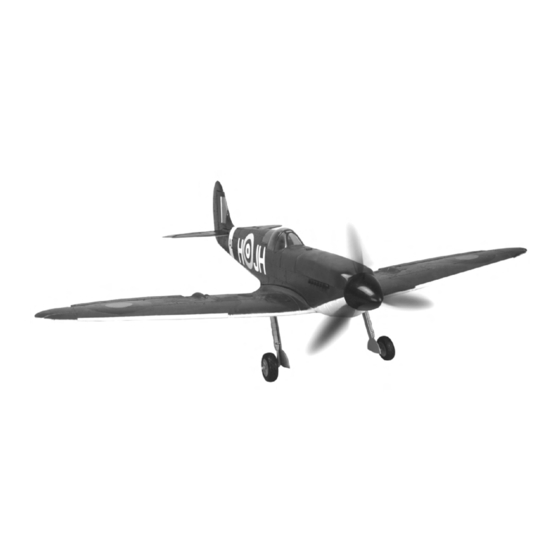

HobbyKing spitfire Instruction Manual
  1. Manuals
  2. Brands
  3. HobbyKing Manuals
  4. Toy
  5. spitfire
  6. Instruction manual

HobbyKing spitfire Instruction Manual

Remote control model airplane
Hide thumbs
Table of Contents

Advertisement

Quick Links

Remote Control Model Airplane
Instruction manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the spitfire and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HobbyKing spitfire

Summary of Contents for HobbyKing spitfire

  • Page 1 Remote Control Model Airplane Instruction manual...

  • Page 2: Table Of Contents

    CONTENTS Brief introduction............2 Main specifications............ 2 Products constitution .

  • Page 3: Brief Introduction

    Brief introduction Thank you for purchasing the “spit fire” remote control model airplanes. In order to ensure your safety, please read this manual carefully before operation this system. Main specifications Standard Version Wing Span: 880mm \ 34.64in Length: 820mm \ 32.28in Flying Weight: 780g \ 27.51 oz Motor: High-mag Motor 480 Battery: 8 cell 9.6V Ni- MH 1000 mAh...

  • Page 4: Statement

    Statement 1. This Spit Fire is not a toy, which is only suitable for the experienced manipulator. Please keep in mind that you are responsible for the safe operation of this model and any damage or harm it may cause. 2.

  • Page 5: Charging Method And Cautions

    Charging method and cautions Ni-mh battery charger Charge the power battery with outfit charger in 3 to 4 hours. Battery will be a little warm after charging. In order to avoid battery damage or fire occurrence, do not charge the battery overtime.
  • Page 6 Operating Then plug cigarette into its socket in car ( Adapter should be connected if charge at home: connect the adapter to home power socket, then plug the adapter' DC end to charger). The LED will turn green indicating it is ready for charging.

  • Page 7: Safety Instruction Of Li-Po/Ni-Mh Battery

    Safety Instruction of Li-Po/Ni-mh battery 1. Do not disassemble or reconstruct the battery. 2. Do not short-circuit the battery. 3. Do not use or leave the battery nearby the fire, stove or heated place (more than 80℃). 4. Do not immerse the battery in water or sea water, do not get it wet. 5.

  • Page 8: Assembling Steps For Spit Fire

    Assembling steps for Spit Fire 1. Insert the Main Landing Gear to the plastic opening on the underside of the fuselage. 2. Attach the servo wire coming out of the wing to channel # 1 on the receiver. Insert the main wing into fuselage.
  • Page 9 3. And then secure the wing with the included screws. 4X30MM ………… 2 Installed the elevator to the rear fuselage on the designated location...
  • Page 10 Install the connect parts of the elevator. Install the clevis of the elevator.
  • Page 11 Firstly, install the under chassis of the nose cowl, secondly, attach the three-leaf propeller to the under chassis of the nose cowl and secure the propeller with the included screw and then install the cover of the nose cowl. Make sure the on/off switch on the transmitter is switched off and insert the batteries into the transmitter. Before switching the transmitter on, please make sure that the throttle stick is in the down position for extra safety.
  • Page 12 Attach the connector plug of the fully charged battery to the ESC on fuselage and close battery bay and then close the cabin. Test and make sure that all control surfaces move in the correct directions. While testing the power, make sure the spinning propeller is out of reach of anybody and anything.

  • Page 13: Functions For Control Set

    Functions for control set ModeⅠ Elevator down Throttle Max Rudder Aileron Rudder Aileron right right left left Elevator up Throttle Min Power indicator Trim Power switch Crystal Servo reverse ModeⅡ Throttle Max Elevator down Rudder Aileron Rudder Aileron right right left left Elevator up...

  • Page 14: The Possible Problems And Solutions

    The possible problems and solutions Phenomenons Problems Solutions 1. Battery is not fully charged. 2. The battery in the transmitter 1. Charge the battery. is not full. 2. Install new dry cells. Motor does not run 3. The circuit in Wing Dragon has 3.

  • Page 15: Center Of Gravity Check

    Center of Gravity Check Please check the CG before heading to the flying field. The center of gravity for your SPITFIRE should fall within the range as indicated by the arrows. For your initial flights, we suggest that you balance the model toward the front of the wing. After you become more familiar with the airplane, you can move the CG more after.
  • Page 16 No: 5N041 No: 5N051 No: 5N061 Small plastic set Main landing gear set Control horn No: 5N071 No: 5N081 Propeller Canopy shelters No:301501 No:P51017 Ni-MH battery Motor with gear box No:302304 No:301302B Li-poly battery Brushless motor...
