3.5 Batteries
The system is powered by an assembly of two Li-FePO (Lithium-Iron Phosphate) batteries. The
batteries are connected in via a custom cable which allows for easy swapping and charging of
the batteries. The system is available with a large battery pack (22Ah) or an optional small
battery pack (10Ah).
Battery
Rate of Discharge (hours)
Dynamic
Small (10Ah)
Large (22Ah)
The battery pack is housed in the pouch on the backpack. The battery cable connects to the
electronics box via the power cable. The fuses are standard 20A automotive fuses. If the
batteries will not charge or will not power the electronics box, check for blown fuses. Fuses are
20A automotive fuses. In the case that fuses continue to be burned out repeatedly please
discontinue use of the battery pack and contact the factory for further instructions. For
shipping instructions please refer to Chapter 10. For battery MSDS please see the appendix.
Static
3.0
6.0
7.5
12.5
# of static
Battery pack dimensions
measurements
Weight
175
6.0 lbs.
360
16.0 lbs.
Figure 3.11:
LxWxH
6.3"x5.3"x4.5"
8.5"x7.0"x8.5"

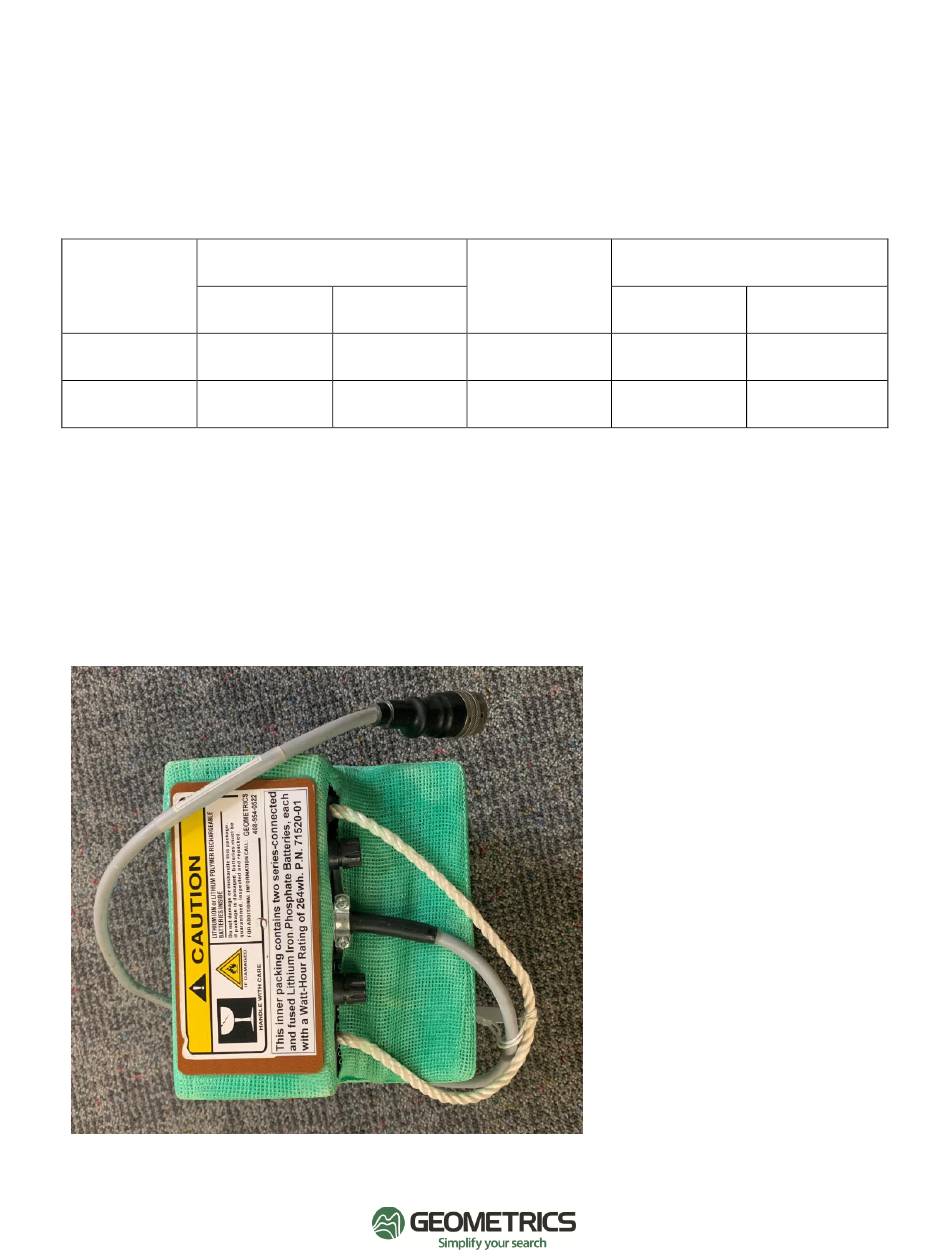

Battery pack and cable
14
