To charge the batteries please use the charger supplied. It will need 2 power outlets as each

battery is charged separately. Total charging time is approx. 4 hours. See instructions on

charger for indicator lights explanation.

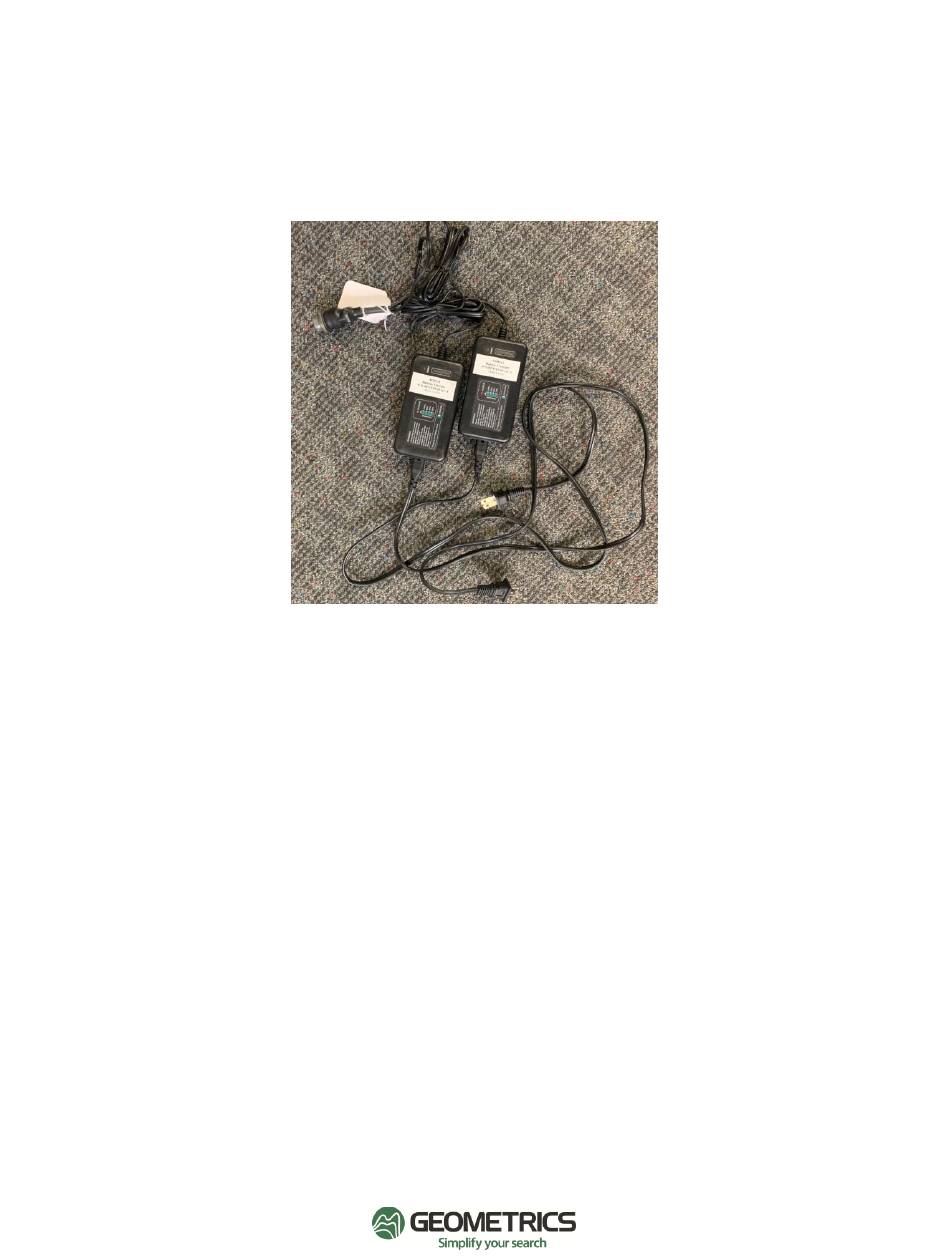

Figure 3.12:

Battery Chargers

3.6 Skid steer mode

The MetalMapper 2x2 can also be deployed via a vehicle-mounted skid-steer. Customers will

need to design or build their own skid steer as Geometrics no longer offers this option To use

the MetalMapper 2x2 with the skid-steer attachment, remove the wheels and axles from the

sensor platform. Foam may need to be added to the instrument bucket to achieve a ~ 20 cm

sensor height off the ground.
