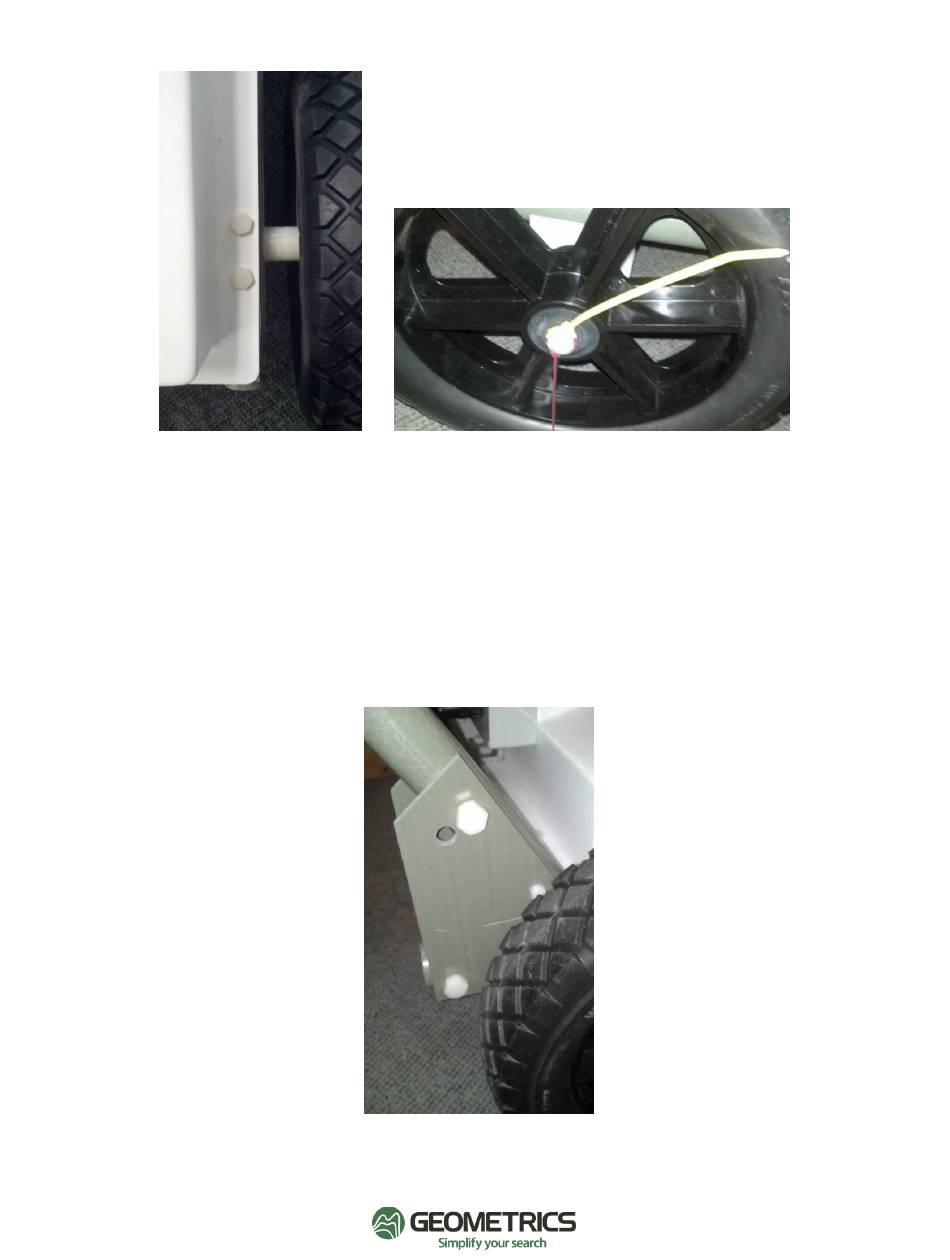

Figure 3.1:
Axles with wheels and spacers installed. Note optional zip ties to secure wheels.
Take care to avoid getting debris inside the wheel hubs and axles. Wheels and axles should be
periodically checked for debris and cleaned to prolong the life. The wheels do not need
lubrication during normal operation.
The cart handle will ship preassembled and only needs to be attached to the cart. The
mounting brackets have different mounting holes depending on the desired height of the
handle
.
Figure 3.2:
Handle attachment
8
