Set the upper foam insert on the lower insert. The straps are used to help lift the sensor
platform out of the crate once it is loaded. The U-bolts which help brace the axles fit into the
slots cut in the insert.

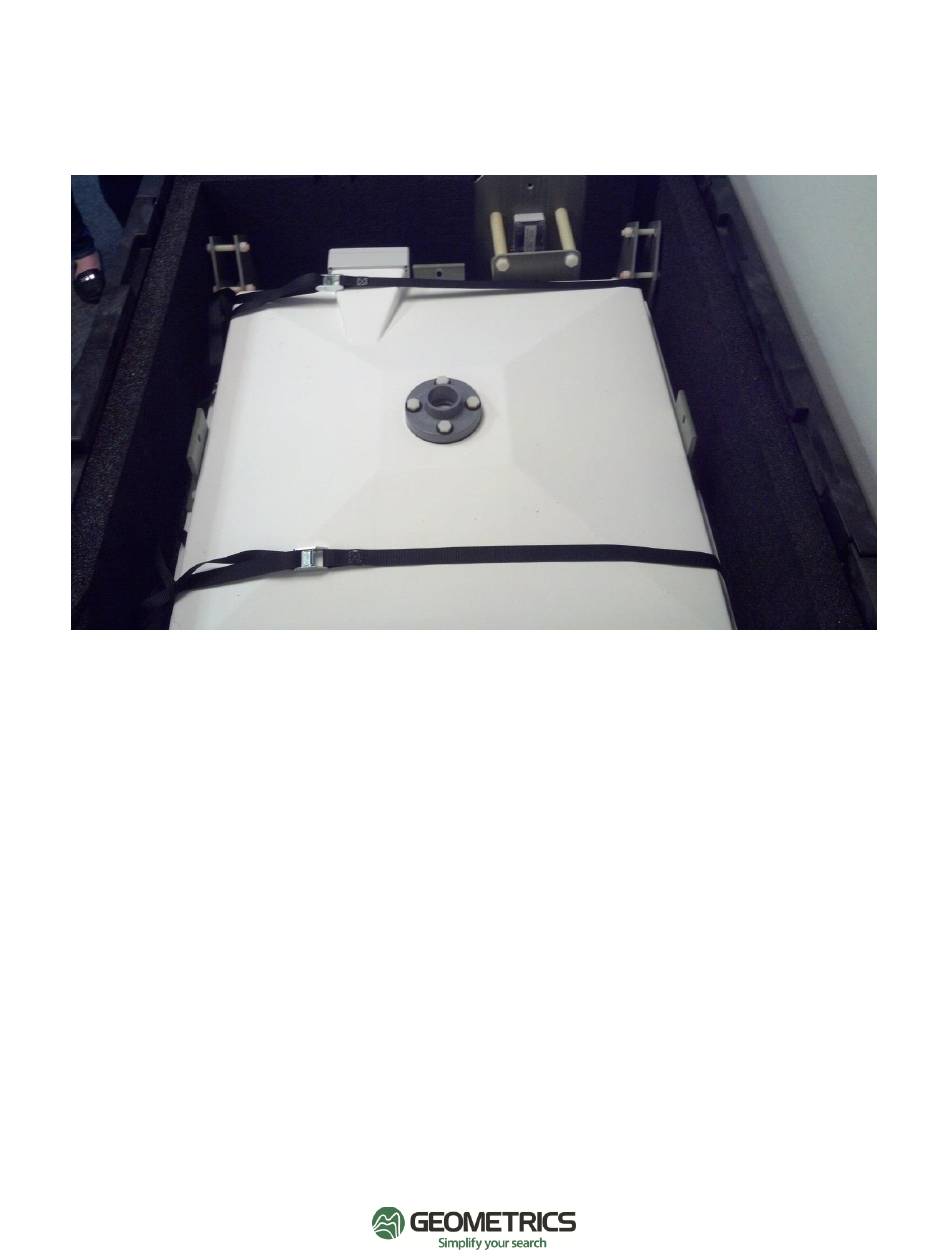

Place the cart in the foam insert. Secure the straps around it to help lift the sensor platform out
of the inserts. The IMU and GPS tower platform slides into the foam slots on the rear side of
the sensor platform, opposite the cable connector housing.
57
