INSTALLATION INSTRUCTIONS: Attaching the voice kit to the DLT-V83
4
Assembling the voice kit
If the voice kit is going to be installed on the right on the DLT-V83, assemble the
voice kit as shown in Figure 1 .
If the voice kit is going to be installed on the left on the DLT-V83, assemble the
voice kit as shown in Figure 2 .
Position of Number of Parts description
figure parts
10 1 Voice kit console
20 1 Recording speaker microphone OTTO V2-10332
30 1 Spring clip 5M3
40 3 Cylinder-head screw DIN 912 - M6 x 10 - A2, Tuflok
50 6 Nut, M4 bevel washer
60 3 Washer ISO 8738 - A6-A2
70 1 Speaker microphone OTTO V2-10332
 DLoG GmbH 2015

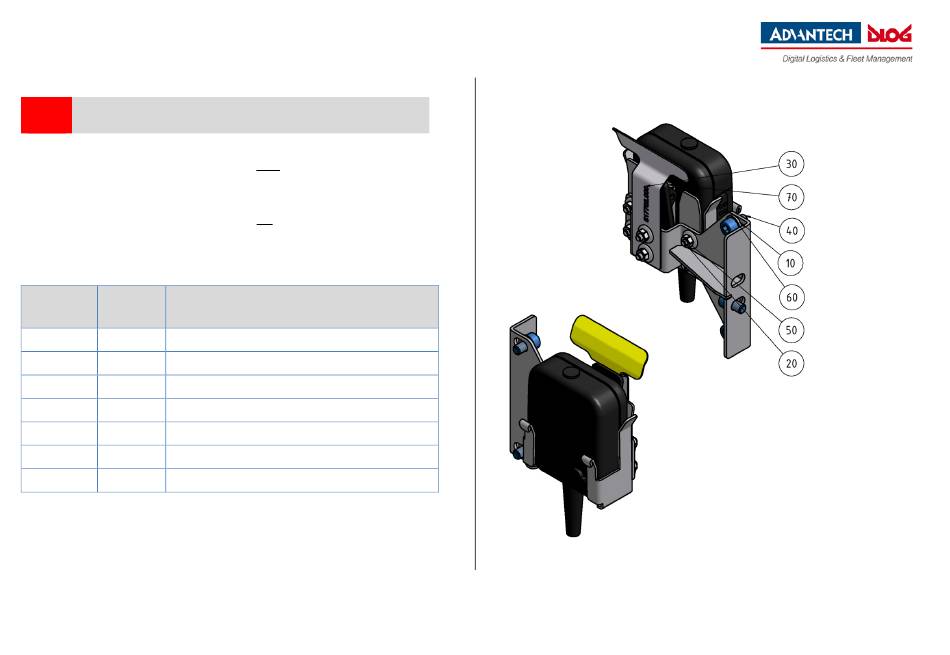

Figure 1: Right voice kit holder assembly
