Urban Three Drawer
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B1
bolt &
50mm
30mm
screw x12
nut x28
screw x8
E
F
E3
E4
E1
E2
dowel
slide
x8
rail x6
L
K
wall
wall
anchor x2
strap x2

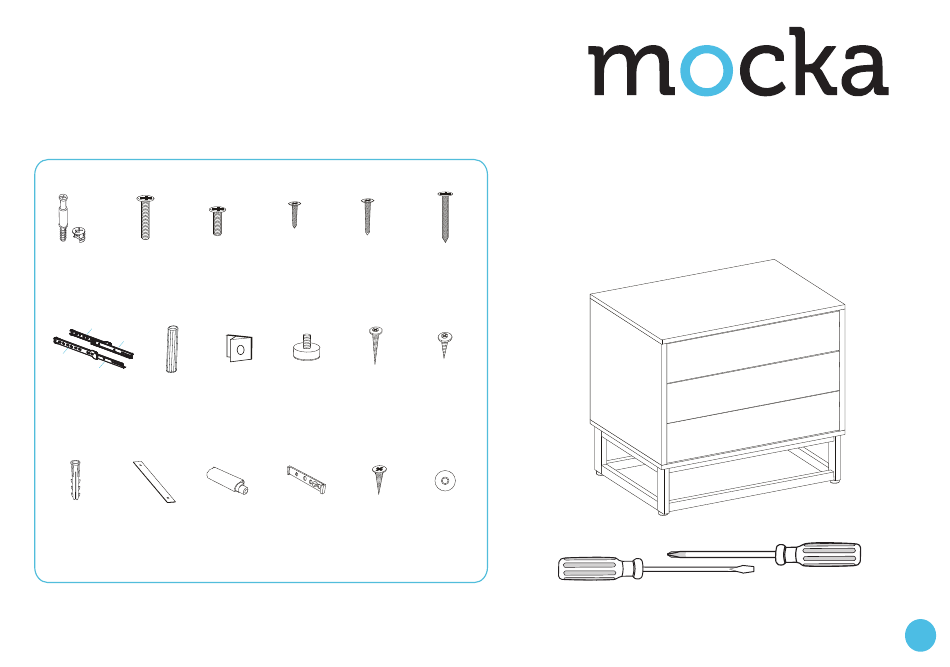

Hardware Supplied
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.
Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558
B2
C1
C2
18mm
12mm
screw x48
screw x8
G
H
I
wedge
feet
25mm
x8
x4
screw x5
N
O
M
bracket
12mm
cover
x6
screw x6
x6
WARNING:
Any furniture that is not anchored to a wall has the potential to tip over in
certain circumstances, i.e. if a child attempts to climb up on the furniture or in the event
D
of an earthquake. Accordingly, we recommend that all furniture is anchored to a wall.
We supply a free safety wall anchor with all furniture sold and we recommend these
are used to prevent your product tipping. The fixing device provided should fit most
wall types, but please note that different wall materials may require different fixing
devices from those supplied.
50mm
screw x16
J
14mm
screw x6
P
stopper
x6
Phillips & Flathead screwdrivers required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
1
Advertisement
Table of Contents
Related Manuals for Mocka Urban Three Drawer
Summary of Contents for Mocka Urban Three Drawer
- Page 1 *We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use. use of a power drill on a low-speed setting. Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 2 Attach 4x feet (H) to the end of the side leg panels. Attach the centre leg panels to the side panels using 12x 30mm screws (B2). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 3 Attach 6x brackets (N) to panels [3] and [4] using 24x 12mm screws with a screwdriver. (C1). Tighten with a screwdriver. Slide 6x covers (M) over the brackets as shown. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 4 Attach panels [3] and [4] to panel [2] using 4x dowels (F) and 4x 50mm Attach 3x slide rails (E3) to panel [4] using 6x 12mm screws (C1). screws (D). Tighten with a screwdriver. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 5 Attach 4x bolts (A) to the underside of panel [1]. form the back of the unit. Attach metal support bar and secure with 4 x screws (J). Tighten with a screwdriver. mocka.co.nz | mocka.com.au mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 6 (I) screws. Tighten with a screwdriver. locking nuts (A). Attach 1x slide rail (E2) to panel [7] and 1x slide rail (E4) to panel [8] with 4x 12mm screws (C1). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 7 (M). Once assembled, lift furniture into place, do not drag. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 8 (L) to the back sides of panel [1] and secure with 2x 14mm screws (J). Fasten to wall using 2x wall anchors (K) and 2x wall screws (I). mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
