Mocka Urban Coffee Table Assembly Instructions

Download this manual

Enlarged version

Urban Coffee Table

Assembly Instructions

Thank you for your purchase.

Please follow the instructions below for correct assembly.

nut & bolt

50mm

set x9

screw x10

Hardware Supplied

Phillips & Flathead screwdrivers required

For quicker assembly, we recommend the

use of a power drill on a low-speed setting.

*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.

Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%.

mocka.co.nz | mocka.com.au

30mm

50mm

dowel

screw x16

screw x9

x12

feet

Need help?

Do you have a question about the Urban Coffee Table and is the answer not in the manual?

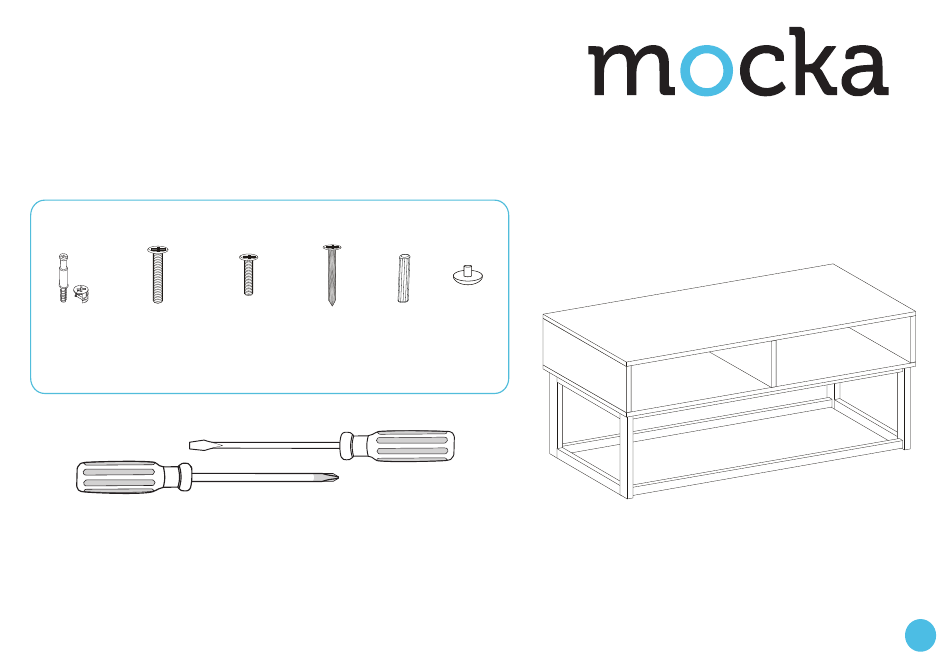

Page 1 Urban Coffee Table Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. feet nut & bolt 30mm 50mm dowel 50mm set x9 screw x16 screw x9 screw x10 Hardware Supplied Phillips & Flathead screwdrivers required For quicker assembly, we recommend the use of a power drill on a low-speed setting.
Page 2 Urban Coffee Table Assembly Instructions Attach 4x feet (E) to the ends of the leg panels as shown. Attach the centre panels to the legs as shown using 16x 30mm screws (B2). Tighten with a screwdriver. mocka.co.nz | mocka.com.au...
Page 3 Urban Coffee Table Assembly Instructions Attach panel [2] to the leg frame using 10x 50mm screws (B1). Tighten Attach panels [3] to panel [2] using 6x dowels (D) and 9x 50mm screws with a screwdriver. (C). Tighten with a screwdriver.
Page 4 Urban Coffee Table Assembly Instructions Attach 9x bolts (A) to panel [1]. Attach panels [1] to panels [3] using 6x dowels (D) and secure with 9x nuts (A). Tighten with a screwdriver. Once assembled lift the furniture into place, do not drag. You’re done, enjoy!
