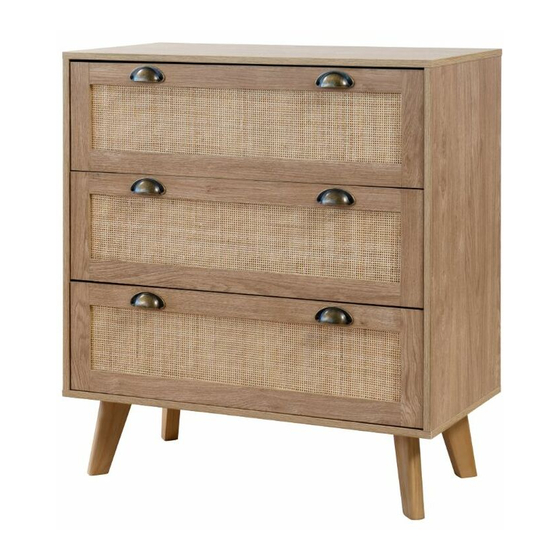

Savannah Three Drawer
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
C
dowel
screw
locking nut
x27
x4
x21
G
F
K
screw
fastener
brace
x16
x4
x8
O
P
Q
handle
small screw
bolt
x6
x12
x8

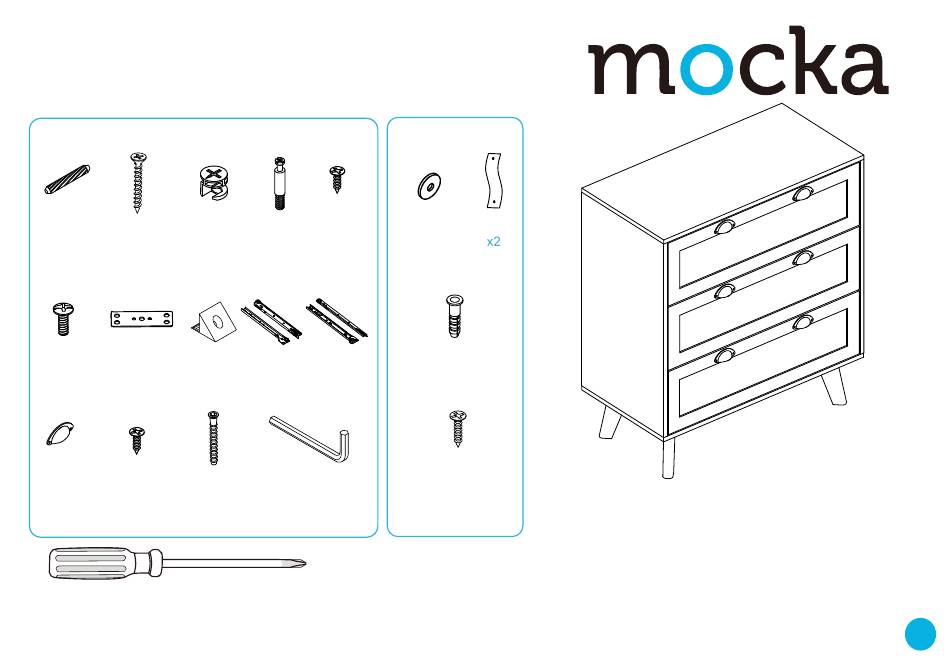

Har dware Supplied
Phillips screwdriver
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
H
D
E
washer
small screw
bolt
x4
x27
x30
M
N
wall anchor
rail
rail
x3
x3
R
wall screw
allen key
x1
Wall
attachment
J
strap
I
x2
L
x10
WARNING:
Any furniture that is not anchored to a wall has the
potential to tip over in certain circumstances, ie. if a child attempts
to climb on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall.
We supply a free safety wall anchor with all furniture sold and we
recommend these are used to prevent your product tipping. The
fixing device provided should fit most wall types, but please note
that different wall materials may require different fixing devices from
those supplied.
Maximum Weight 10kgs
