EVALUATION BOARD OPERATING GUIDE
Step 6. click "done" button, the main control window pops out as Figure 10 shown.
a
Step 7. click "Load reg File" button to load the register contents of the part (Figure 11).
Load Register File

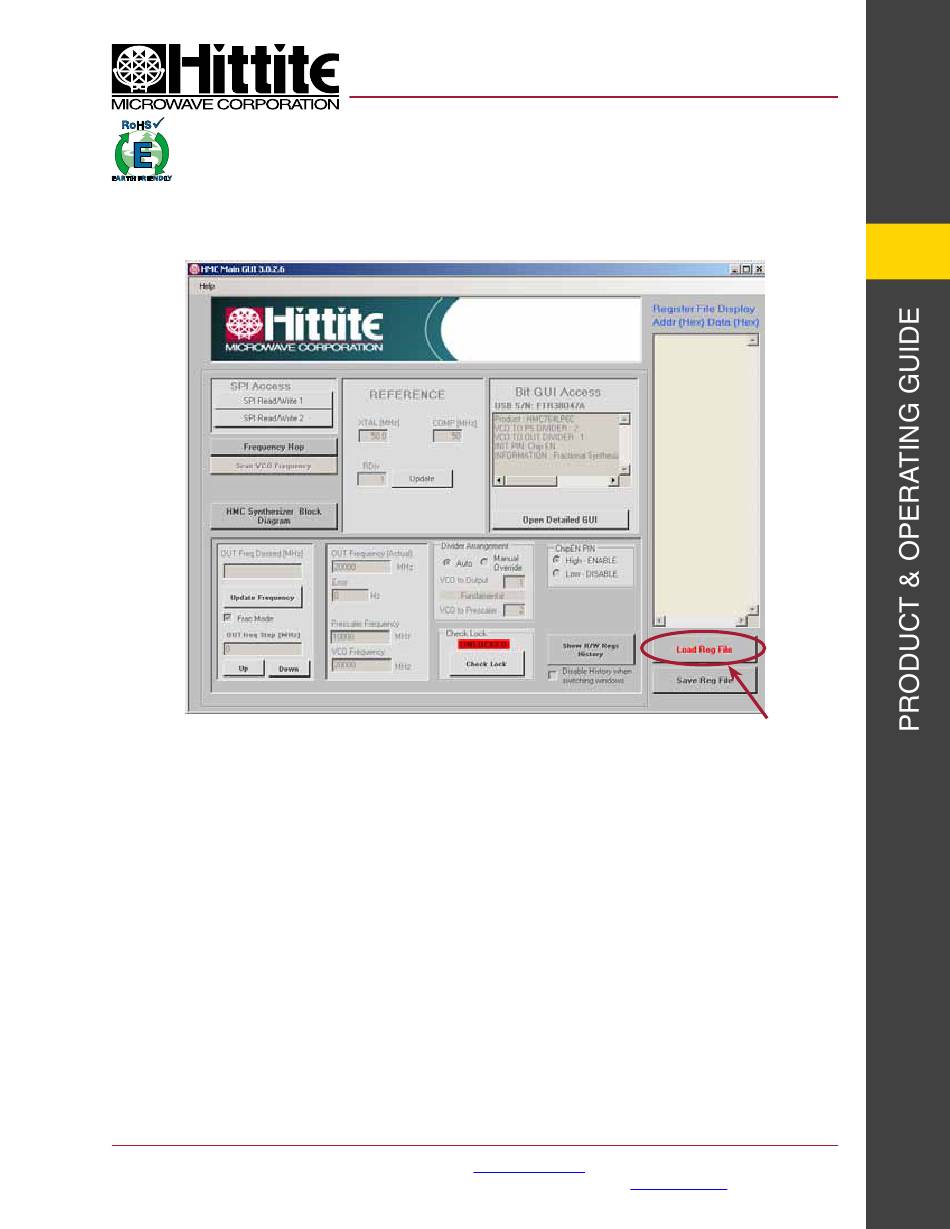

Figure 10. Main Control Window
