Evaluating the

FEATURES

2×, 31.76 W into 4 Ω at16 V, THD + N = 10%

EVALUATION KIT CONTENTS

USBi USB interface board
USB cable
EVAL-SSM3582Z evaluation board

ONLINE RESOURCES

Documents
SSM3582 data sheet or SSM3582A
EVAL-SSM3582Z user guide
Dynamic link library (DLL) for the

GENERAL DESCRIPTION

The EVAL-SSM3582Z is the evaluation board for the
or the SSM3582A, integrated stereo, 31.76 W, high efficiency,
Class D, audio amplifiers with a digital input. This evaluation
board can be used for both the
devices.
The application circuit requires few external components and
can operate from a single 4.5 V to 16 V supply. The EVAL-
SSM3582Z is capable of delivering 14.67 W of continuous
output power to a 4 Ω load from a 12 V power supply, with
<1% THD + N, or 31.76 W into a 4 Ω load from 16 V, 10%
THD + N.
The SSM3582 and the SSM3582A
low noise modulation scheme that requires no external
reconstruction filter (LC) output filters. This scheme provides
high efficiency, even at low output power.
The EVAL-SSM3582Z and the
operate with 93.8% efficiency at 10 W into an 8 Ω load or 90.6%
efficiency at 18 W into 4 Ω load from a 12 V supply. The EVAL-
SSM3582Z, the SSM3582, and the
noise floor of 38.5 μV rms A weighted.
This user guide describes how to configure and use the EVAL-
SSM3582Z. Read this user guide in conjunction with the
and the SSM3582A data sheets, which provide specifications,
internal block diagrams, a register map, and application
guidance for the amplifiers.
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
SSM3582 or the
Filterless Stereo Class D Audio Amplifier
data sheet
SigmaStudio software
SSM3582
SSM3582 or the SSM3582A
feature a high efficiency,
SSM3582 or the SSM3582A
SSM3582A have a typical
SSM3582
EVAL-SSM3582Z
SSM3582A 2×, 31.76 W, Digital Input,

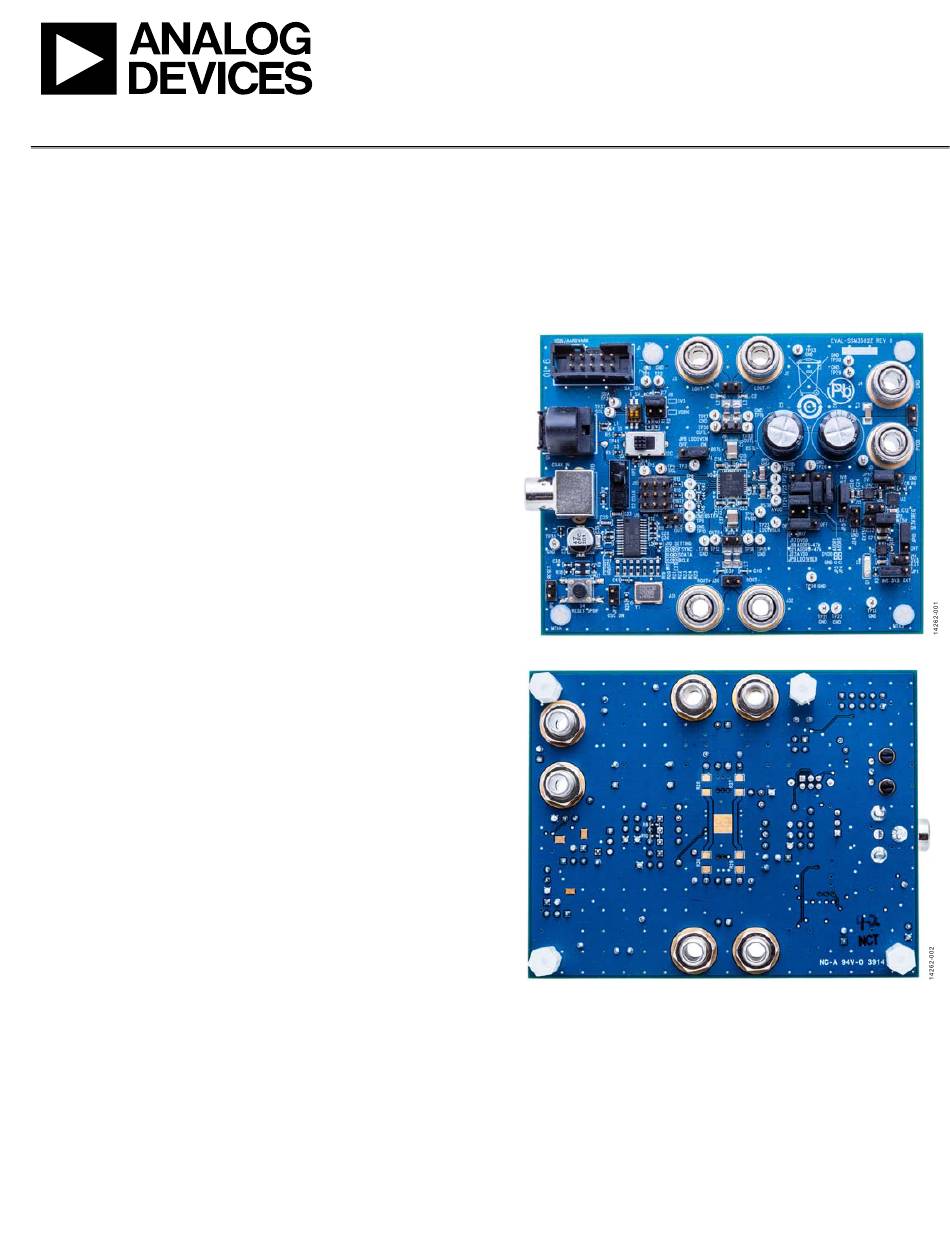

Figure 1 shows the top view of the EVAL-SSM3582Z, and
Figure 2 shows the bottom view of the EVAL-SSM3582Z.

EVALUATION BOARD PHOTOGRAPHS

Figure 1. EVAL-SSM3582Z Evaluation Board, Top View
Figure 2. EVAL-SSM3582Z Evaluation Board, Bottom View
