Digital Watchdog MEGAPIX PANO DWC-PB6M4T Quick Start Manual

DWC-PB6M4T
Default Login Information
Username: admin Password: admin
WHAT'S IN THE BOX
Quick
Sunshield
setup 1
screws
guide
Screws and
Mounting
1 plastic
template
anchors – 4pcs
Sunshield 1 T-Wrench
NOTE: Download all your support materials and tools in one place
1. Go to: http://www.digital-watchdog.com/resources
2. Search your product by entering the part number in the
'Search by Product' search bar. Results for applicable
part numbers will populate automatically based on the
part number you enter.
3. Click 'Search'. All supported materials, including manuals
and quick start guide (QSGs) will appear in the results.
Attention: This document is intended to serve as a quick reference for initial
set-up. It is recommended that the user read the entire instruction manual for
complete and proper installation and usage.
Tel: +1 (866) 446-3595 / (813) 888-9555
digital-watchdog.com
Technical Support Hours:
9:00AM – 8:00PM EST, Monday thru Friday
STEP 1 – PREPARING TO MOUNT THE CAMERA
1. The mounting surface must bear five times the weight of your
camera (2.2 lbs).
2. Mind the cables and power line to avoid damage.
3. CAUTION: These servicing instructions are for use by qualified
service personnel only. To reduce the risk of electric shock do not
perform any servicing other than that contained in the operating
instructions unless you are qualified to do so.
4. This product is intended to be supplied by a UL Listed Power
Supply Unit marked "Class 2" or "LPS" or "PS2" and rated 12 Vdc,
880 mA min.
5. The wired LAN hub providing power over the Ethernet (PoE) in
accordance with IEEE 802-3af shall be a UL Listed device with
the output evaluated as a Limited Power Source as defined in
UL60950-1 or PS2 as defined in UL62368-1.
6. Unit is intended for installation in a Network Environment 0 as
defined in IEC TR 62102. As such, associated Ethernet wiring shall
be limited to inside the building.
7. Using the mounting template sheet or the camera itself, mark and
drill the necessary holes in the wall or ceiling.
STEP 2 – CABLING THE CAMERA TO
EXTERNAL DEVICES
Pass the wires through the mount bracket and make all
necessary connections.
1 Set
a. NETWORK CONNECTIONS – If you are using a PoE Switch,
connect the camera using an Ethernet cable for both data
1 Set
and power.
b. NETWORK CONNECTIONS – If you are using a non-PoE
1 switch, connect the camera to the switch using an Ethernet
cable for data transmission and use a power adapter to power
the camera.
Power requirements Power consumption
DC12V, PoE IEEE 802.3at
TDN On: MAX 10.1W
Class 3
TDN Off: 7.7W
(adapter not included)
AUDIO
INPUT
AUDIO
OUTPUT
NETWORK
POWER

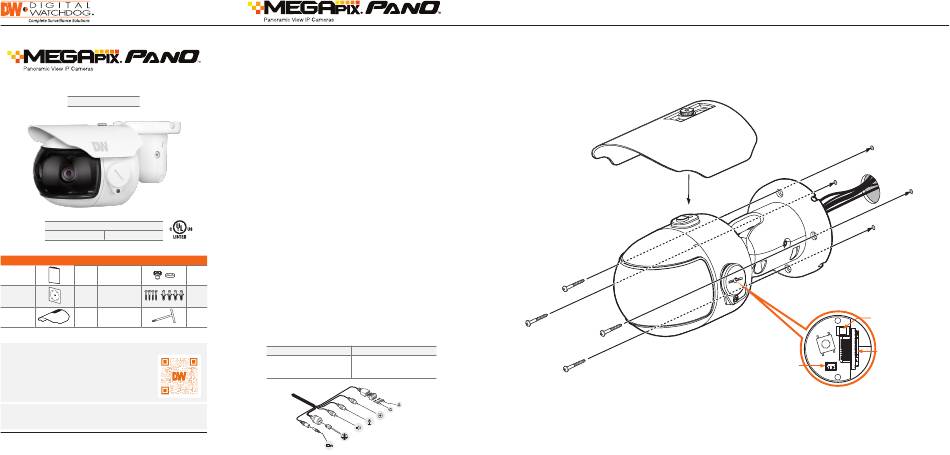

STEP 3 – INSTALLING THE CAMERA
1. Once all cables are connected, secure the camera to the mounting surface using the included screws.
2. To adjust the camera's pan and tilt, loosen the pan/tilt stopper screw. Adjust the camera's position as needed.
You may use the camera's video test cable for local image view.
3. Attach the sunshield to the camera by using the provided sunshield screws.
ALARM
INPUT
ALARM
OUTPUT
IR
ILLUMINATOR
Quick Start Guide
Reset
Button
SD Card Slot
Test Video Output
