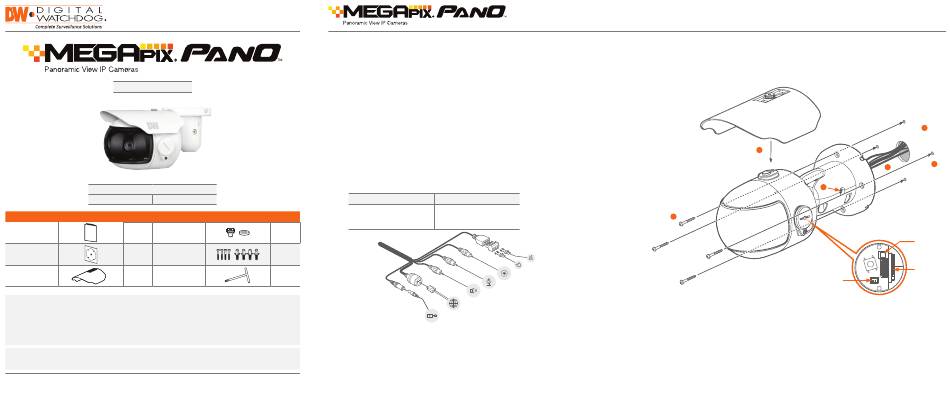

Digital Watchdog Megapix Pano DWC-PB6M4T Quick Start Manual

DWC-PB6M4T
Default Login Information
Username: admin Password: admin
WHAT'S IN THE BOX
QSG Manual 1 Set Sunshield Screws
Screw & Plastic
Template Sheet 1 Set
Anchor – 4pcs
Sunshield 1 Set T-Wrench
NOTE: Download All Your Support Materials and Tools in One Place
1. Go to: http://www.digital-watchdog.com/support-download/
2. Search your product by entering the part number in the 'Search by Product' search bar. Results for applicable
part numbers will populate automatically based on the part number you enter.
3. Click 'Search'. All supported materials, including manuals, Quick Start Guides (QSG), software and firmware will
appear in the results.
Attention: This document is intended to serve as a quick reference for initial set-up. It is recommended that
the user read the entire instruction manual for complete and proper installation and usage.
Tel: +1 (866) 446-3595 / (813) 888-9555
Technical Support Hours: 9:00AM – 8:00PM EST, Monday thru Friday
Quick Start Guide
STEP 1 – PREPARING TO MOUNT THE CAMERA
1. The mounting surface must bear five times the weight of your camera (2.2 lbs).
2. Mind the cables and power line to avoid damage.
3. Using the mounting template sheet or the camera itself, mark and drill the necessary holes in
the wall or ceiling.
STEP 2 – CABLING THE CAMERA TO EXTERNAL DEVICES
4. Pass the wires through the mount bracket and make all necessary connections.
a. NETWORK CONNECTIONS – If you are using a PoE Switch, connect the camera using an Ethernet
cable for both data and power.
b. NETWORK CONNECTIONS – If you are using a non-PoE switch, connect the camera to the switch
using an Ethernet cable for data transmission and use a power adapter to power the camera.
Power Requirements
DC12V
POE (802.3af / Class 3)
1 Set
1 Set
1 Set
STEP 3 – INSTALLING THE CAMERA
5. Once all cables are connected, secure the camera to the mounting surface using the included screws.
6. To adjust the camera's pan and tilt, loosen the pan/tilt stopper screw. Adjust the camera's position as
needed. You may use the camera's video test cable for local image view.
7. Attach the sunshield to the camera by using the provided Sunshield screws.
digital-watchdog.com
Power Consumption
MAX 10.1W (with TDN)
7.7W (without TDN)
ALARM
INPUT
ALARM
OUTPUT
IR
ILLUMINATOR
AUDIO
INPUT
AUDIO
OUTPUT
NETWORK
POWER
7
6
5
Test Video Output
Quick Start Guide
1
3
2
Reset Button
SD Card Slot
