SEA GATE 2 Programming Manual

PROGRAMMING A PAIR OF GATES WITHOUT A REBATE/SLAMMING BAR

Set logic DIP switches 1 to 4 ON
1
ON
Carry out the programming cycle as previously described for gates with rebate
with the exception of the presses
It will take a total of 7 presses of the button to complete this programming cycle

PROGRAMMING A SINGLE LEAF GATE

Set logic DIP switches 1 to 3 ON
1
ON
Connect the Gate Motor to the Motor 1 terminals
Do not wire-link out the Limit Switch 2 input (terms. 5 & 6 - CN2)
This programming cycle will only require a total of 4 Presses to complete.
Start with the gate at 45° as previously shown, give Button P a long (10 sec.)
press to enter the programming mode. Then give the button a short press every
time the gate hits a stop.

Fault Indication Chart

If the Gate 2 control unit is not functioning, make the following check:-
Give a 'Start' input - If the Programme led (LedP) gives a sequence of flashes,
this may be of assistance in providing an indication of where a fault may be
located. The sequence of Led flashes will last approx. 20 seconds.
Seq. of flashes Fault type
1 Test Photocell
2 Safety Edge
3 Encoder
More detailed information can be found in the enclosed booklet.
Contact details:-
SEA (UK) Ltd. – Tel: 0121 706 9629 – Fax: 0121 764 5603 - email: sales@seaukltd.co.uk
12
shown in red used to set leaf delay times.
12
Seq. of flashes Fault type
4 Stop
5 Photocell self-test
6 Triac

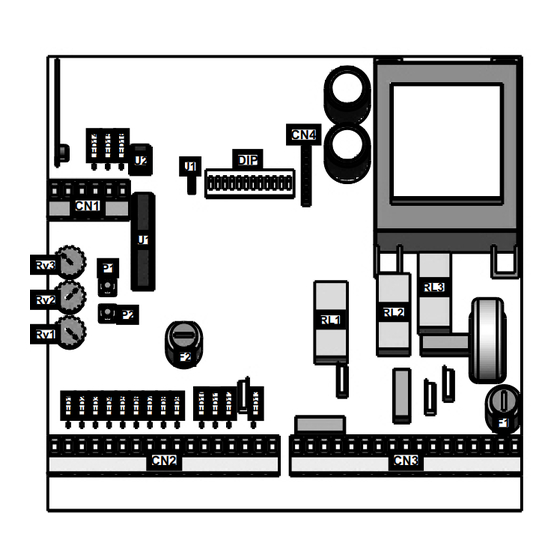

SEA GATE 2 CONTROL BOX

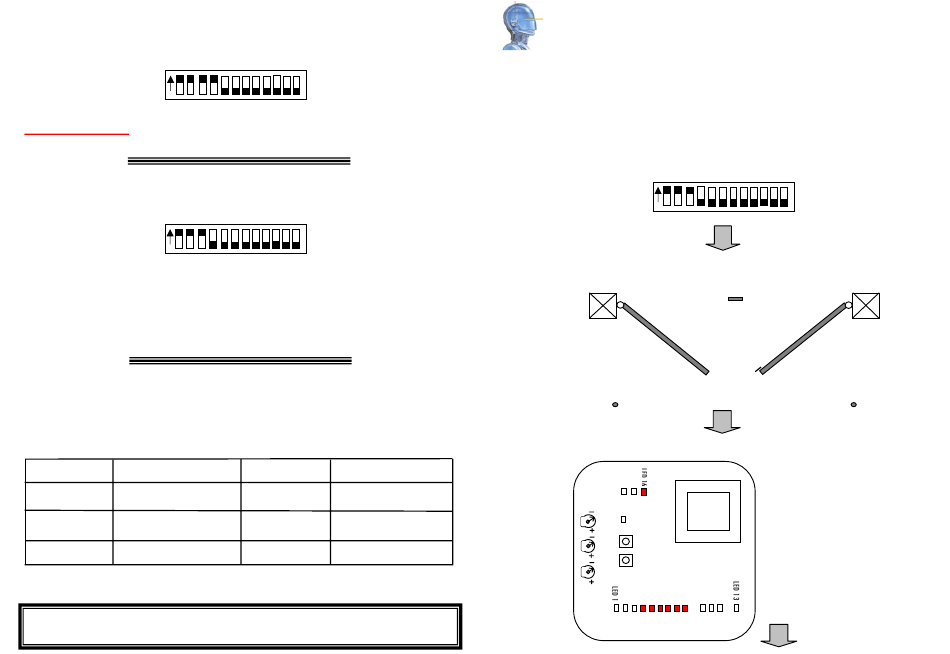

STEP BY STEP PROGRAMMING GUIDE FOR SWING GATES
Before you start the programming phase check all your wiring connections.
Check that all 'Normally Closed - N.C.' inputs are either wire-linked out or
connected to a device i.e. Photocells.

PROGRAMMING A PAIR OF GATES WITH A REBATE OR SLAMMING BAR

Set logic DIP switches 1 to 3 ON
1
ON
Place the gates at 45° and check the emergency releases are reconnected
Gate 1
Switch-on the mains supply to the control box and check you have 7 Leds lit
TRIMMER DIALS
LED P
RV3 – Open Pause
P1
RV2 – Brake Timer
P2
RV1 – Motor Torque
12
Gate 2
If you do not have the correct
number of Leds lit – Switch-off
the mains supply to the control
box and check all 'normally
closed' (N.C.) inputs.
