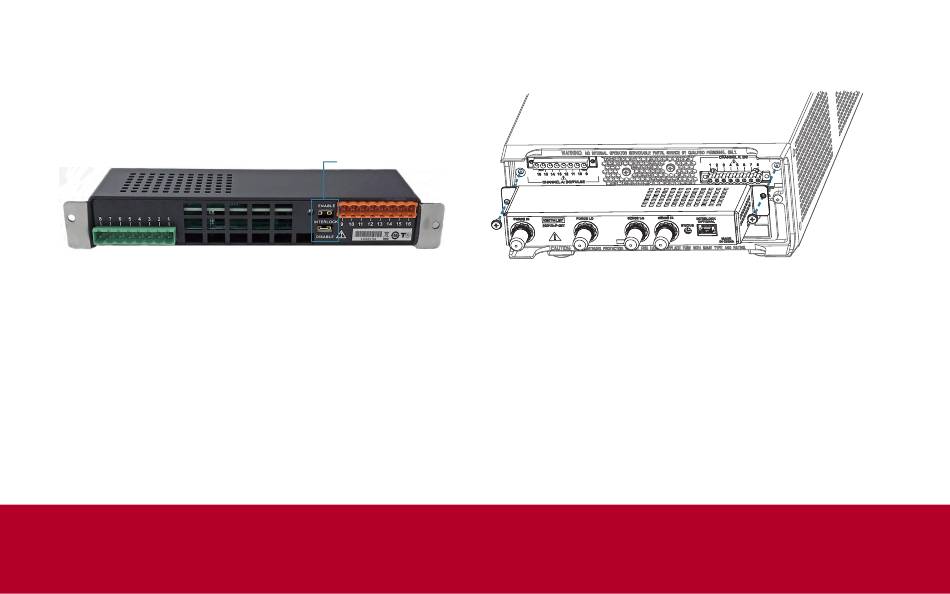

3. On the 2601B-P-INT terminal strip panel, use needle-
nose pliers to position the INTERLOCK jumper. Place it
in the ENABLE slot if you are using an interlock or in the
DISABLE slot if you are not using the interlock.
4. Align the terminal strip panel of the 2601B-P-INT to the
terminal strips on the rear panel of the 2601B-PULSE.
5. Press the 2601B-P-INT connections firmly onto the
terminal strips on the rear panel of the 2601B-PULSE.
6. Use the two 6-32 × ½ in. screws provided with the
2601B-P-INT to secure it to the rear panel of the
2601B-PULSE.
Interlock
Wiring the interlock
You can use the 2601B-P-INT and the 2601B-PULSE
digital I/O port or external wiring to make interlock
connections to an external device. When properly connected,
the output of the instrument will turn OFF when a remote
switch is closed.
Refer to the Model 2601B-PULSE Reference Manual
(document number 2601B-PULSE-901-01) for detail on
making interlock connections.
