MARKER-MATE™ EML 100
ELECTRONIC MARKER LOCATOR
This Instruction Manual Supports Firmware Version 1.0
MARKER-MATE™ EML 100 MARKER LOCATOR

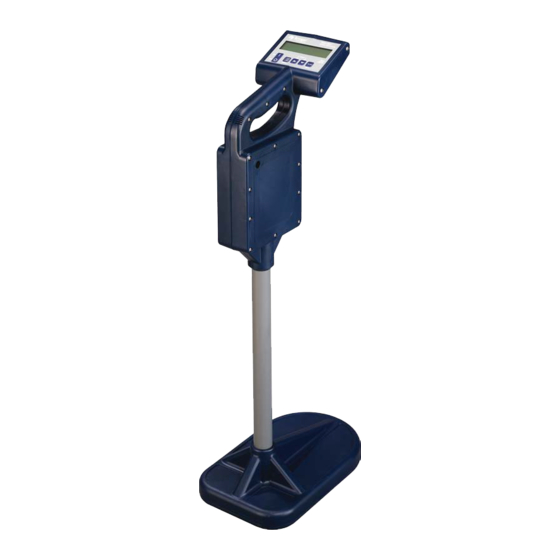

The Model EML100 is a universal electronic marker locating tool for locating
P o w e r, Wa t e r, Sanitary, Telephone, Gas, Cable T V, and Non-Potable
Electronic markers.
The Model EML100 consists of:
EML100 Electronic Marker Locator
Optional Accessories:
Headset
Carrying Case
95E0089
Read and understand this material before operating or servicing
this equipment.
WARNING
© 2003
REV A 03/03
