5. Turn the navigation wheel
20.0000 V, and then press the navigation wheel
enter the selection and exit EDIT mode.

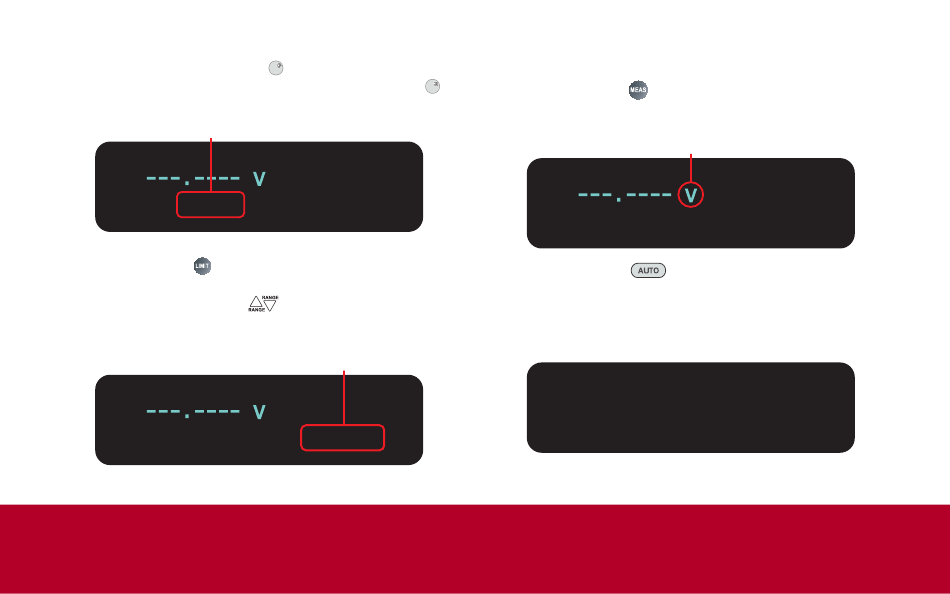

Source value set to 20.0000 V
SrcA:+20.0000 V LimA:1.00000 A
Step 2: Set the source limit
1. Press the LIMIT key. You will see a blinking character
in the LimA value field.
2. Press the down RANGE
limit range. Verify that the source limit value in the LimA
field is 10.0000 mA.
Source limit set to 10.0000mA
SrcA:+20.0000 V LimA:10.0000mA
to set the source value to
to
AUTO
key to select the 10 mA
AUTO
Step 3: Set measurement function and range
1. Press the MEAS key until the V (voltage)
measurement function is selected. In the following figure,
the measurement function has been set to V.
Measurement function set to voltage (V)
SrcA:+20.0000 V LimA:10.0000mA
2. Press the AUTO
to select the AUTO range function. When AUTO is
selected, the 2601B-PULSE automatically selects the
best range for the measured value. You will briefly see
the display shown below, and then the main display
screen reappears.
AUTO
SrcA:+20.0000 V LimA:10.0000mA
AUTO
key as many times as needed
AUTO
