  • Page 1 DOUBLE VISION ® DU L DISPL Y PH SING VOLTMETER a n d A C C E S S O R I E S Operating & Instruction Manual 1475 Lakeside Drive • Waukegan, Illinois 60085 U.S.A. • 847.473.4980 f a x 8 4 7 . 4 7 3 . 4 9 8 1 • w e b s i t e : w w w. H D E l e c t r i c C o m p a n y. c o m...
  • Page 3: Table Of Contents

    VOLTMETER/PH SER a n d A C C E S S O R I E S Operating & Instruction Manual IMPORTANT SAFETY INFORMATION ............4 GENERAL DESCRIPTION .
  • Page 4: Important Safety Information

    IMPORTANT SAFETY INFORMATION Read and understand these instructions prior to use. These operating instructions are not a substitute for proper training in the use of this equipment. High voltage systems present serious hazards, including the risk of death or serious injury due to arcing, thermal burns and electrocution.
  • Page 5: General Description

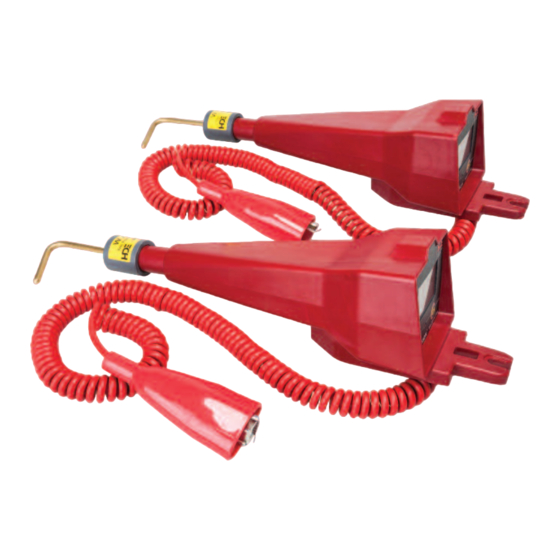

    GENERAL DESCRIPTION The HD Electric Dual Display Phasing Voltmeter includes a pair of single stick line to ground voltmeters that communicate with each other wirelessly. Both units are constructed with high strength molded housings with epoxy encapsulated high voltage resistors, a ground cord and a digital LED display. The high voltage resistors limit the current through the ground cord to a maximum of less than...
  • Page 6: Technical Specifications

    TECHNICAL SPECIFICATIONS MODEL NUMBER: DDPM-40 ENVIRONMENTAL CONDITIONS • Conditions - Indoor and outdoor use • Altitude - Up to 6,566 ft. (2000M) • Operating Temperature -20°F to +120°F (-29°C to +49°C) • Humidity - 95% to 49°C (non-condensing) • Pollution Degree - PD4 •...
  • Page 7: Operating Instructions

    OPERATING INSTRUCTIONS The DDPM-40 Dual Display Phasing Voltmeter measures DC and AC RMS voltage from 5V to 25kV line to ground and 43kV line to line and from 25-1000Hz. Press the ON button on both units to turn them on. The initial zero kV indication will be replaced shortly with the display of hollow zeros as a battery saving measure.
  • Page 8: Pre-Use Inspection

    OPERATING INSTRUCTIONS ontinued Pre-Use Inspection WARNING: Before using the instrument be sure to test and inspect the equipment to ensure that it is functioning properly and is in safe, working condition. Failure to do so may cause serious injury or death and may result in erroneous test measurements. Before making any high voltage measurements, test and inspect the voltmeter/phaser as follows: 1) Make certain the instrument is clean and dry.
  • Page 9 OPERATING INSTRUCTIONS ontinued When the meters are first turned on, look for the two circles in the lower right corner. When they are bouncing back and forth, the two meters are wirelessly connected. When the meters are first applied to voltage, they both measure line to ground voltage.
  • Page 10: Test Point Measurements

    OPERATING INSTRUCTIONS ontinued Test Point Measurements To activate Test Point mode simply push the ON button again. Test Point mode is indicated by TP in the display. To turn Test Point mode off, simply push the ON button once and verify the TP turns off.
  • Page 11: Probes And Accessories

    PROBES AND ACCESSORIES WARNING: ALWAYS use probes appropriate to your application. NEVER use overhead probes in underground applications. Failure to use the correct probe can result in arcing or electrical contact and may cause serious injury or death. If you are not trained in the particular operation or are not sure about the appropriate probe for your application DO NOT PROCEED.
  • Page 12: Care And Maintenance

    CARE AND MAINTENANCE Periodic regular maintenance is required to keep the voltmeter in proper operating condition. Digital models will require periodic battery replacement. Keep the voltmeter clean and dry and always store it in its case. The sticks should be kept clean and free of dirt, contamina- tion and marking.
  • Page 13: Calibration And Maintenance Log

    CALIBRATION AND MAINTENANCE LOG DATE CALIBRATED BY...
  • Page 14 CALIBRATION AND MAINTENANCE LOG DATE CALIBRATED BY...
  • Page 16: Warranty And Liability

    LIMITED WARRANTY AND LIMITATION OF LIABILITY This warranty applies to all products sold by HD Electric Company (the "Products"); provided, however, that the term Products does not include any third party products purchased through HD Electric Company, for which no warranties are made (the "Third Party Products"). Third Party Products may be subject to a separate manufacturer's warranty;...
