Test the instrument

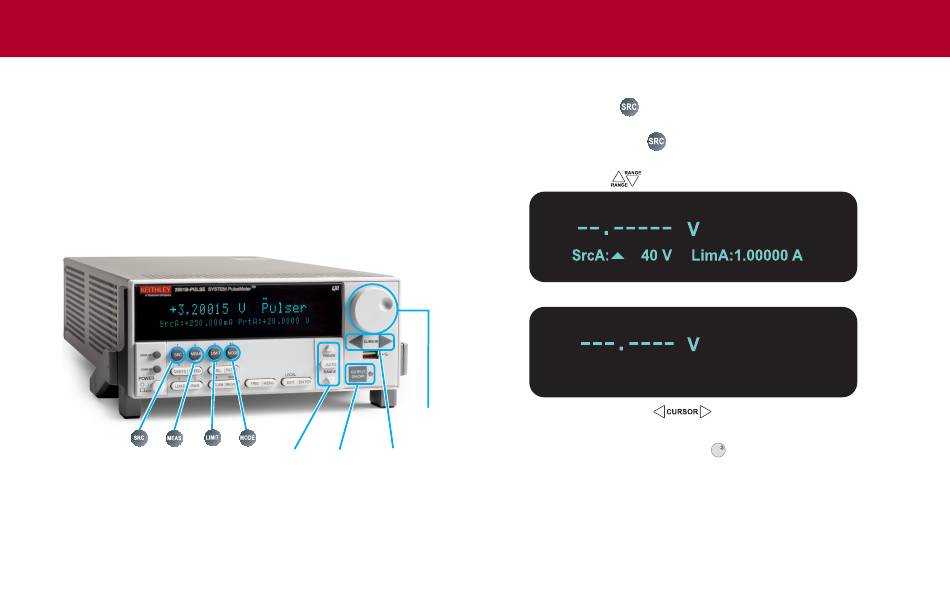

The following test verifies basic operation of the
2601B-PULSE. In this test, you will use the front-panel
controls shown below to source voltage and measure the
voltage output.
You do not need to connect a device under test (DUT) for
this test.
SRC
MEAS
LIMIT
MODE
key
key
key
key
Navigation
wheel
RANGE
OUTPUT
CURSOR
keys
ON/OFF
keys
control
Step 1: Set source function, range, and level
1. Press the SRC
key. You will see a blinking character
in the SrcA value field. Confirm that mV is displayed; if
not, press the SRC
key again.
2. While that character is still blinking, press the up or down
RANGE keys
until 40 V is displayed.
The main display screen is refreshed.
SrcA:+00.0000 V LimA:1.00000 A
3. Press the CURSOR
the 10s digit.
4. Press the navigation wheel
The EDIT indicator appears in the upper left corner
of the display.
AUTO
AUTO
keys to move the cursor to
to enter EDIT mode.
