- Page 1 INSTRUCTION MANUAL CM-660 CM-860 CM-960 CMH-600 CMI-600 Clamp Meters 99 Washington Street Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com 52066382 REV 1 © 2013 Greenlee Textron Inc. 12/13...
-
Page 2: Purpose Of This Manual

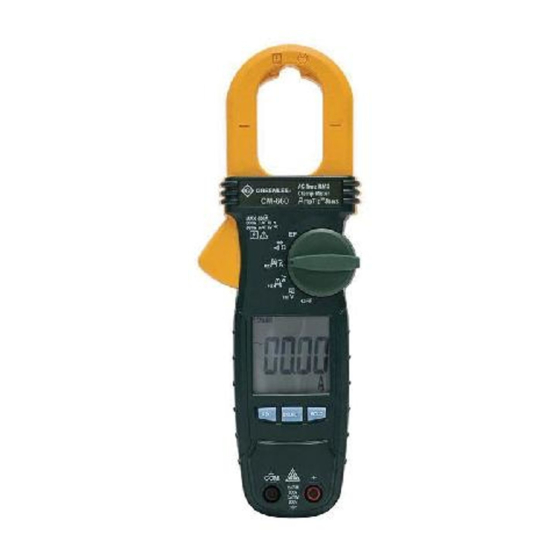

Description The Greenlee CM-660, CM-860, CM-960, CMH-600, and CMI-600 Clamp Meters are hand-held testing devices with the following measurement capabilities: AC and DC voltage, AC current, AC current AmpTip™, frequency, non-contact electric field (EF) detection, and resistance. They also check diodes and verify continuity. These meters are designed to be placed on or removed from insulated or uninsulated conductors. -
Page 3: Important Safety Information
Do not discard this product or throw away! For recycling information, go to www.greenlee.com. All specifications are nominal and may change as design improvements occur. Greenlee Textron Inc. shall not be liable for damages resulting from misapplication or misuse of its products. - Page 4 Important Safety Information Electric shock and fire hazard: • Do not expose this unit to rain or moisture. • Do not use the unit if it is wet or damaged. • Clamp meter, test leads or any other clamp accessory, when used to make a mea- surement, create a System.
- Page 5 CM-660 • CM-860 • CM-960 • CMH-600 • CMI-600 Important Safety Information Electric shock hazard: • Unless measuring voltage, current, or frequency, shut off and lock out power. Make sure that all capacitors are discharged. Voltage must not be present. •...
-
Page 6: Symbols On The Unit
Identification 1. Antenna for non-contact EF detection 2. Jaw center indicator for best current accuracy; polarity indicator for DC amps 3. Selects a function or turns power off 4. LCD 5. Input jack for phase and motor rotation functions only 6. -
Page 7: Display Icons
CM-660 • CM-860 • CM-960 • CMH-600 • CMI-600 Display Icons Automatic ranging is enabled. Record function is enabled. Diode Continuity PEAK-RMS mode is enabled. Phase rotation main supply Motor rotation 8. 8.8.8.8 Numeric display 9. µ Micro (10 10. F Farad 11. -
Page 8: Using The Features
Using the Features All Models • REC: Press momentarily to activate MAX/MIN/AVG recording mode. and “MAX MIN AVG” appear on the display. The meter beeps when new maximum or minimum reading is updated. The average reading is calculated over time. Press the button momentarily to read the MAX, MIN and AVG readings in sequence. - Page 9 CM-660 • CM-860 • CM-960 • CMH-600 • CMI-600 Using the Test Leads Electric shock hazard: The test leads supplied with this product comply with safety standards that limit the exposed length of the probe tip to 4 mm for measurement categories III and IV. These test leads include a cap that must be in place when used in measurement category III or IV applications.
- Page 10 AC Measurement AC measurements are usually displayed as RMS (root mean square) values. The RMS value is equal to the value of a DC waveform, which would deliver the same power if it replaced the time-varying waveform. Two AC measurement methods are average-re- sponding RMS calibrated and true RMS-reading.
-
Page 11: Operation
CM-660 • CM-860 • CM-960 • CMH-600 • CMI-600 AC Bandwidth AC bandwidth is the range of frequencies over which AC measurements can be made within the specified accuracy. It is the frequency response of the AC functions—not of the frequency measurement functions. A meter cannot accurately measure the AC value with frequency spectrums outside its bandwidth. -
Page 12: Settings Table
Operation (cont’d) Settings Table Set the These icons Connect Connect To measure selector appear on the the red the black this value … to this display … lead to … lead to … symbol … ALL MODELS Voltage (AC) Voltage (DC) Current, AmpTip™ (AC) Current (AC) Ω... -
Page 13: Voltage Measurement
CM-660 • CM-860 • CM-960 • CMH-600 • CMI-600 Typical Measurements and Accuracy Refer to the “Specifications” section for operating conditions and temperature coefficient. Accuracy is specified as follows: ± (a percentage of the reading + a fixed amount) at 23 °C ±... -
Page 14: Current Measurement
Typical Measurements and Accuracy (cont’d) Current Measurement µA DC Current Flame Sensor µA Pilot Flame Control Board μDC Current (CMH-600 and CMI-600 only) Range Accuracy Burden Voltage 200.0 μA ± (1.0% + 0.5 μA) 3.5 mV/μA 2000 μA ± (1.0% + 5 μA) AmpTip™... - Page 15 CM-660 • CM-860 • CM-960 • CMH-600 • CMI-600 Typical Measurements and Accuracy (cont’d) Current Measurement (cont’d) AC and DC Clamp AC Current (CM-960 and CMI-600 only) Accuracy at Accuracy at Range Accuracy Range 50 Hz to 100 Hz*† 100 Hz to 400 Hz*† 0.00 A to 8.99 A ±...
-
Page 16: Resistance Measurement
Typical Measurements and Accuracy (cont’d) Resistance Resistance Measurement Range Accuracy 600.0 Ω ± (1.0% + 0.5 Ω) 6.000 kΩ ± (1.0% + 0.005 kΩ) 60.00 kΩ ± (1.0% + 0.05 kΩ) Open Circuit Voltage: 1.0 VDC Continuity Check Continuity Tone Threshold: Between 10 Ω and 250 Ω Response Time: Approximately 32 ms SELECT Capacitance... -
Page 17: Diode Measurement
CM-660 • CM-860 • CM-960 • CMH-600 • CMI-600 Typical Measurements and Accuracy (cont’d) Diode Measurement Reverse Bias Forward Bias Diode Test Measuring Range: 2.000 V Accuracy: ± (1.5% + 0.005 V) SELECT Test Current (typical): 0.3 mA Open Circuit Voltage (typical): <... -
Page 18: Phase Rotation
Typical Measurements and Accuracy (cont’d) 10 mm (0.4") Electric Field Note: CM-660 and CM-860 have a dedicated switch position. Non-contact EF Detection Typical Range at SELECT Voltage 50 Hz to 60 Hz Indication 20 V 10 V ~ 36 V 55 V 23 V ~ 83 V 110 V... -
Page 19: Specifications
CM-660 • CM-860 • CM-960 • CMH-600 • CMI-600 Specifications Display: LCD, 3-5/6 digits 6000 counts Polarity: Automatic Update Rate: 5 per second nominal Operating Conditions: 0 °C to 31 °C (32 °F to 88 °F), relative humidity 0% to 80% 31 °C to 40 °C (88 °F to 104 °F), relative humidity decreasing linearly from 80% to 50% Pollution Degree: 2... -
Page 20: Measurement Categories
Statement of Conformity Greenlee Textron Inc. is certified in accordance with ISO 9001 (2000) for our Quality Management Systems. The instrument enclosed has been checked and/or calibrated using equipment that is... -
Page 21: Maintenance
CM-660 • CM-860 • CM-960 • CMH-600 • CMI-600 Maintenance Electric shock hazard: Before opening the case, remove the test leads from the circuit and shut off the unit. Failure to observe this warning could result in severe injury or death. Replacing the Batteries 1. - Page 22 CM-660 • CM-860 • CM-960 • CMH-600 • CMI-600 Lifetime Limited Warranty Greenlee Textron Inc. warrants to the original purchaser of these goods for use that these products will be free from defects in workmanship and material for their useful life, excepting normal wear and abuse. This warranty is subject to the same terms and conditions contained in Greenlee Textron Inc.’s standard one-year limited...
