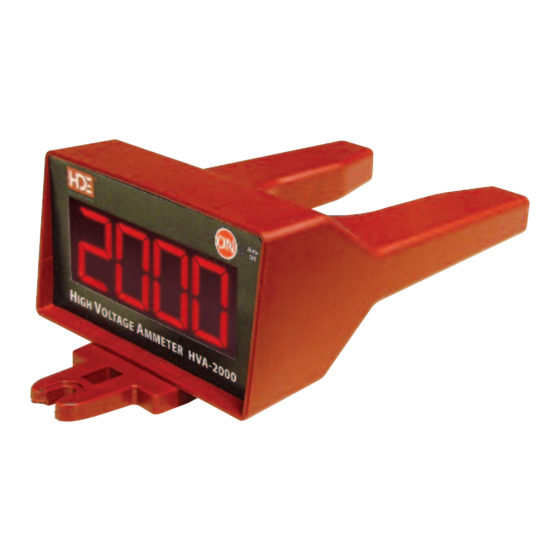

- Page 1 HIGH VOLT GE DIGIT L MMETER Operating & Instruction Manual HVA-2000 Making the Invisible Visible 1475 Lakeside Drive • Waukegan, Illinois 60085 U.S.A. • 847.473.4980 f a x 8 4 7 . 4 7 3 . 4 9 8 1 • w e b s i t e : w w w. H D E l e c t r i c C o m p a n y. c o m...
- Page 2 HIGH VOLT GE DIGIT L MMETER Operating & Instruction Manual GENERAL DESCRIPTION ..............2 IMPORTANT SAFETY INFORMATION .
- Page 3 IMPORTANT SAFETY INFORMATION • Only trained, professional operating personnel should use the HVA High Voltage Ammeter. The voltages this instrument operates at are dangerous and lethal. Severe injury or death can occur if improperly used. • Risk of electrocution is inherent in or around high voltage. •...
- Page 4 HOW TO USE IT Test the Ammeter battery and display by pressing the ON button. Verify that each digit in turn displays 8. If needed, replace the 9V battery with a lithium or alkaline type. The Ammeter measures and displays current in two modes: The initial factory default mode is Peak Hold, which displays the peak...
- Page 5 Always install the HVA High Voltage Ammeter on a hotstick with length appropriate for the voltage to be measured by way of the built-in universal Conductor spline or hookstick connection, making certain it is securely attached. To measure the current in a conductor, place the Ammeter completely over the conductor as shown (upper right) so that the conductor is completely inside the U.
- Page 6 MEASURING CURRENT ON UG CABLES & IN PADMOUNT ENCLOSURES Secondary voltage cables are generally unshielded and current can be easily measured by placing the Ammeter completely over the secondary cable or cable bundle so that all cables are completely inside the U on the HVA High Voltage Ammeter. Primary voltage cables are generally shielded and the Ammeter cannot measure current on a shielded cable except in areas where the shield has been removed.
- Page 7 TECHNICAL SPECIFICATIONS MODEL NUMBER: HVA-2000 OPERATING VOLTAGE RANGE: Up to 500kV line to ground OPERATING FREQUENCY: 25-500Hz ENVIRONMENTAL CONDITIONS: CONDITIONS: Indoor and outdoor use ALTITUDE: Up to 6,566 ft. (2000M) OPERATING TEMPERATURE: -20°F to +140°F (-29°C to +60°C) HUMIDITY: 95% to +60°C (non-condensing) POLLUTION DEGREE: PD4 OVERVOLTAGE CATEGORY IV DIMENSIONS: 4”H x 6.6”W x 11.5”L...
- Page 8 LIMITED WARRANTY AND LIMITATION OF LIABILITY This warranty applies to all products sold by HD Electric Company (the "Products"); provided, however, that the term Products does not include any third party products purchased through HD Electric Company, for which no warranties are made (the "Third Party Products"). Third Party Products may be subject to a separate manufacturer's warranty;...
