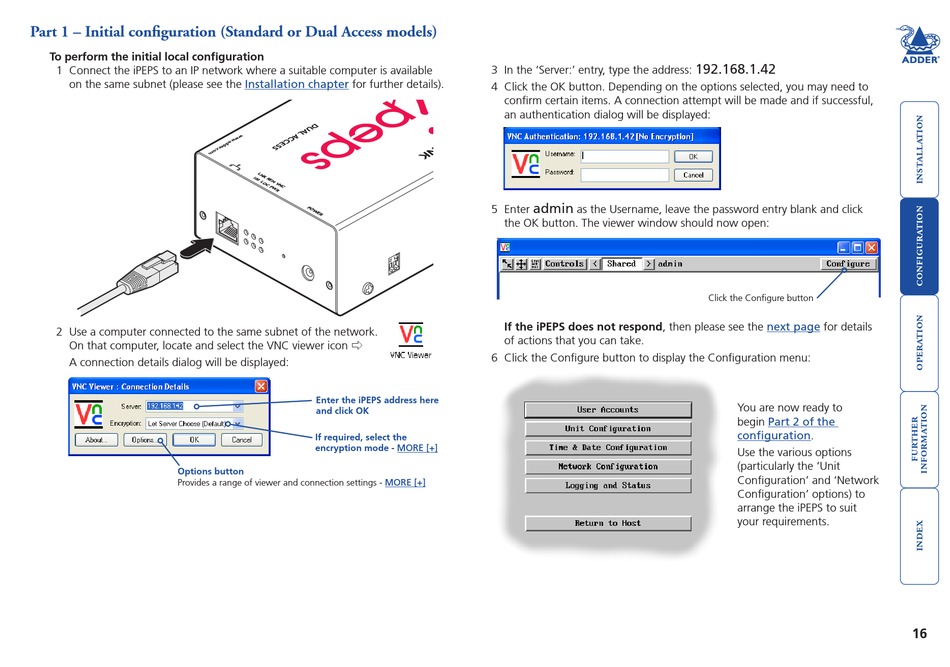

Part 1 – Initial configuration (Standard or Dual Access models)
To perform the initial local configuration
1 Connect the iPEPS to an IP network where a suitable computer is available
on the same subnet (please see the
2 Use a computer connected to the same subnet of the network.
On that computer, locate and select the VNC viewer icon
A connection details dialog will be displayed:
Options button
Provides a range of viewer and connection settings -
Installation chapter for further details).
N O
1
2

Enter the iPEPS address here
and click OK
If required, select the
encryption mode - MORE [+]
MORE [+]
3 In the 'Server:' entry, type the address:
4 Click the OK button. Depending on the options selected, you may need to
confirm certain items. A connection attempt will be made and if successful,
an authentication dialog will be displayed:
admin
5 Enter as the Username, leave the password entry blank and click
the OK button. The viewer window should now open:
If the iPEPS does not respond, then please see the
of actions that you can take.
6 Click the Configure button to display the Configuration menu:
192.168.1.42
Click the Configure button
next page for details
You are now ready to
begin Part 2 of the
configuration.
Use the various options
(particularly the 'Unit
Configuration' and 'Network
Configuration' options) to
arrange the iPEPS to suit
your requirements.
