- Page 1 Titan Commander Installation and User Guide Titan Telephone (1066) Commander Telephone (1065) Standard keypad models GAI-TRONICS Doc. No. 502-20-0100-001 Iss5. Oct 2016 (CN39575-005)
-
Page 2: Table Of Contents
CONTENTS Safety and Care Information ............... 4 Product Description ..................4 2.1. Changes from previous versions ..........5 2.2. Titan features ................5 2.3. Commander features ..............6 Operation / Testing ..................6 3.1. Making and Receiving calls ............6 3.2. -
Page 3: Titan, Commander, Standard Keypad
7.3. Option Setting ................21 Cleaning (Anti graffiti coating) ..............24 Aftercare ....................24 Technical Specifications ................25 Titan, Commander, standard keypad... -
Page 4: Safety And Care Information

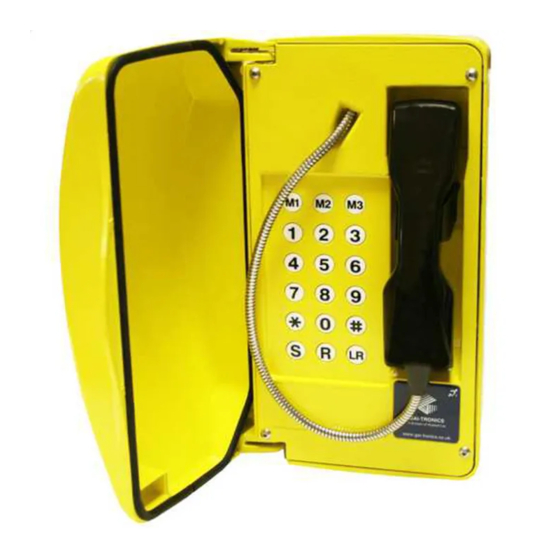

(see section 6) Product Description This manual describes the standard keypad versions of the Titan and Commander telephone ranges. Models are available with full numeric keypads for manual dialling, or with auto-dial buttons for dialling pre-stored numbers from a single button press, or a combination of both. -
Page 5: Changes From Previous Versions
2.1. Changes from previous versions This manual describes an updated range of products introduced in April 2005. For those familiar with GAI-Tronics’ products, the list of new or changed features is as follows: New terminal layout (section 6.1). • All option selections are by jumper settings •... -
Page 6: Commander Features
Titan doors may be fitted with slamlocks opened by an 8mm square socket key. Other lock mechanisms may also be fitted. 2.3. Commander features Commander is a family of rugged, weather-resistant telephones manufactured from moulded glass-reinforced polyester. A range of handset types and keypad configurations are available. -
Page 7: S Button Function
IMPORTANT All possible measures must be taken to ensure water, fluid or dust does not contaminate the internal components of the telephone whilst unpacking, preparing and installing the telephone in inclement weather conditions or by negligence. Titan, Commander, standard keypad... -
Page 8: Emergency Services Warning
Contact GAI-Tronics if installation service is required. IMPORTANT Installation details differ between the TITAN and COMMANDER product ranges –please make sure you know which product you are installing and refer to the appropriate sections below. - Page 9 All option settings and programming facilities are on the circuit board protected by a plastic backbox, which must be removed for access. The Titan telephone is intended for vertical installation to a wall or pole. Select the required mounting method (section 5) and mount the rear enclosure first where applicable.
-
Page 10: Commander
Make the appropriate option settings, and program any required auto- dial numbers, following section 7. Reconnect the ringer. Re-secure the telephone Front Casing to the Rear Casing with the three retaining screws, ensuring a weatherproof seal. Titan, Commander, standard keypad... -
Page 11: Mounting Methods And Dimensions
5. Proceed with chosen mounting method below 5.2. Titan As standard, Titan with rear enclosure is supplied with 2 cable glands with sealing washers, 4 countersunk screws with wall plugs and a 3mm Allen key. Titan telephones supplied for flush mounting have no rear enclosure – see section 5.2.3 below. - Page 12 5kg. IMPORTANT: USE ONLY countersunk-headed fixing screws. Check that screws seat properly in the plastic bushes to ensure a watertight seal. Do not use excessive tightening force, as this may crack the case. Titan, Commander, standard keypad...
- Page 13 5.2.2 Pole mounting Kit No 100-02-0208-001 This accessory is for mounting GAI-Tronics telephones on to the side of round poles of 100mm to 200mm diameter, or on to square or rectangular section uprights of 100mm to 150mm across the mounting surface.
- Page 14 – in particular the fixing holes are in different positions and there are no corner cut-outs (for door hinges). These models are usually described as “Titan fp” and the supplied mounting kit contains round-headed screws and no glands.
-
Page 15: Commander
– in these cases use additional sealant around the edges to ensure a weatherproof seal. 5.3. Commander 5.3.1 Wall mounting To ensure weatherproof integrity when wall mounted, external cables should enter the enclosure from the bottom via the 20mm gland entries provided. Titan, Commander, standard keypad... - Page 16 5.3.2 Pole mounting Kit No 100-02-0208-001 This accessory is for mounting GAI-Tronics telephones on to the side of round poles of 100mm to 200mm diameter, or on to square or rectangular section uprights of 100mm to 150mm across the mounting surface.
- Page 17 Banding straps (large scale worm-drive clamps) are not included in this kit and must be obtained separately. For details of where banding can be obtained, refer to GAI-Tronics. 1. Remove rubber feet from the Rear Casing if fitted. Attach the pole mounting clamp assemblies to the Rear Casing using the M6 x 25 screws provided.
-
Page 18: Connections
If glands are used, insert the cable through the gland body and tighten the gland nut sufficiently to clamp the cable, making a seal. For Titan models with rear enclosure, ensure sufficient cable is left to allow removal of the faceplate without straining the cable. -
Page 19: Additional Hook Contact
6.2. Additional hook contact Note – this optional connection is only available if specifically ordered and is not field upgradable. Contact GAI-Tronics for details. The additional hook contact is provided on CON5. The diagram shows the state of the changeover contacts when the telephone is on hook. These contact labels are also on the circuit board. -
Page 20: Programming And Option Settings
Programming and Option Settings Note – for Titan models, the plastic backbox must be removed for access to the programming keypad and option settings. When replacing the backbox, take care to seat the cables correctly in their channels as shown. -
Page 21: Hot Dial Programming
HOT Dial option to function correctly. 7.3. Option Setting All user-configurable options are set by the positions of 7 jumpers on headers on the circuit board, labelled HD1 – HD7 (see diagram on page 20). Titan, Commander, standard keypad... - Page 22 When pulse dialling is selected (section 7.3.6), the mark/space ratio is set by HD4 – with the jumper to the left it is set to 3:2, with the jumper to the right (or missing) it is set to 2:1. Note that this jumper has no Titan, Commander, standard keypad...
- Page 23 Recall break length The length of the line break caused by pressing the R button (if fitted) is set by HD1 & HD2 as shown below: The recall break length is factory set to 100ms by default. Titan, Commander, standard keypad...
-
Page 24: Cleaning (Anti Graffiti Coating)
Other cleaners can be used but should be tested on a small area first. Aftercare The purchase of your GAI-Tronics product does not end our commitment to you. In addition to our warranty obligations, GAI-Tronics are able to offer various levels of maintenance packages, installation and commissioning packages and technical support, from ad-hoc repairs to full maintenance contracts. -
Page 25: Technical Specifications
Die-cast Aluminium (Titan) Glass reinforced polyester (Commander) Handset Material Cycoloy (2800) with stainless steel or polyester curled cord. Weight 3 –5kg depending on option. Dimensions Dependant on model and variant. See 5.1 (Titan) or 5.3 (Commander) Titan, Commander, standard keypad... - Page 26 Business users should contact their suppliers and check the terms and conditions of the purchase contract and ensure that this product is not mixed with other commercial waste for disposal. Titan, Commander, standard keypad...
- Page 27 11. CE Declaration A copy of the current CE Declaration of Conformity is available from our website. www.gai-tronics.org/support/certificates-approvals/ Titan, Commander, standard keypad...
- Page 28 Brunel Drive Stretton Park Burton on Trent DE13 0BZ England Tel: 01283 500500 Fax: 01283 500400 www.gai-tronics.co.uk The policy of GAI-Tronics is one of continuous improvement, therefore the Company reserves the right to change specifications without notice Titan, Commander, standard keypad...
