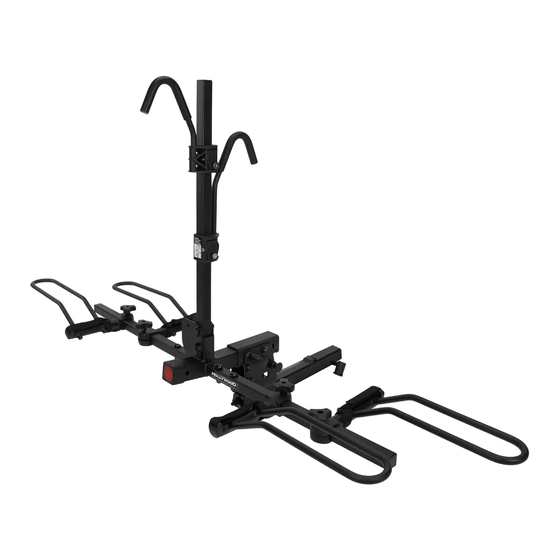

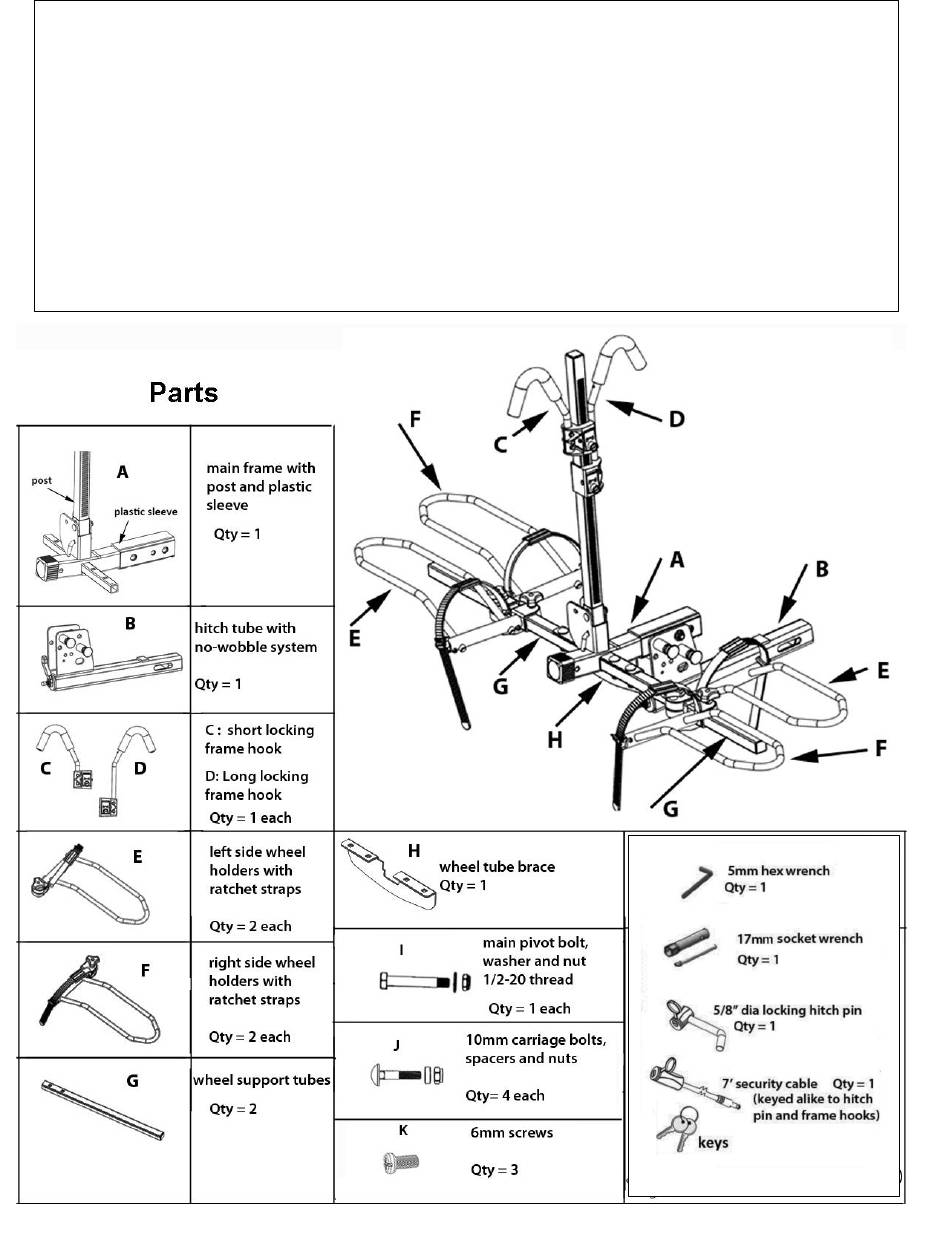

Hollywood Racks Sportrider Model HR1500 Hitch Mounted E-Bike Rack

Assembly and Installation Instructions

Two bike capacity. For use on 2" hitches only. Do not use a 1 ¼" to 2" hitch adapter, bumper mount hitch
adapter or hitch extenders. This product is not intended for off-road use.
Maximum weight per bicycle = 80lbs. Maximum bicycle wheelbase = 60". Maximum tire width = 5".
Do not use with mopeds, motorcycles, gas powered bicycles
This product is NOT warranted for use on any trailer, 5
For video and assembly & installation instructions, please visit Hollywoodracks.com
th
wheel or towed vehicle.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sportrider HR1500 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hollywood Racks Sportrider HR1500

  • Page 1 Hollywood Racks Sportrider Model HR1500 Hitch Mounted E-Bike Rack Assembly and Installation Instructions • Two bike capacity. For use on 2” hitches only. Do not use a 1 ¼” to 2” hitch adapter, bumper mount hitch adapter or hitch extenders. This product is not intended for off-road use.
  • Page 2 1: Install Hitch Tube (B) into Fig. 3 vehicle’s trailer hitch. Slide the hitch tube A into the 2” trailer hitch until it stops (Fig. 1, 2). Remove locking head from the locking hitch pin and insert pin through the hole in the trailer hitch and hitch tube until it passes through the opposite side.
  • Page 3 3: Attach wheel support tubes and wheel tube brace to main frame Per Fig. 8, 9, slide the wheel tubes onto the main frame with the wheel tube’s square holes facing up. Position the tubes so that the holes are aligned. Position brace H on top of the wheel tubes per Fig.
  • Page 4 4: Install frame hooks & wheel PARTS REQUIRED: Frame hooks (C & D), Wheel Holders (E & F), screw K holders: To change the post from folded to “in use” position: rotate & remove the keyed L pin, rotate the post, then re-insert the L pin in the lower Fig.
  • Page 5 5: Installing wheel holder stop screws (Item K): Fig. 20 After determining the final position of the wheel holders, install the two stop screws (K) into the bottom of the wheel tubes as indicated in Fig. 20. Use Phillips screwdriver. 6: Fold-up function: R remove the L pin and rotate the vertical post to its folded position.
  • Page 6 8: Installing bikes on rack Remove battery before mounting bikes on rack. Fig. 24 Note: The wheel holders on this rack will fit tire widths up to 5” wide. Please see Fig. 27 below. Place the inside bike (bike closest to the vehicle) in front of the rack and slide the wheel holders so they align with the bike’s wheels.
  • Page 7 REMOVE BATTERY BEFORE MOUNTING BIKE TO RACK...
  • Page 8 Hollywood Racks will remedy defects in materials and workmanship by repairing or replacing (at its option) a defective part without charge for labor or parts. Hollywood Racks may elect (at its option) to issue a refund equal to the purchase price paid for the product.
