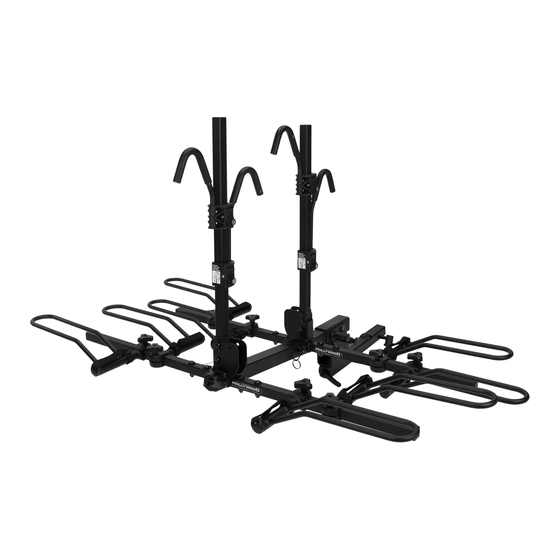

Hollywood Racks Sport Rider Hitch Rack Instruction Manual
Model HR1200 – 3 Bike, 2" rec.
Not to be used on any
trailer, fifth wheel or vehicle
being towed by another
vehicle
Weight Limit 45lbs/20 kg
per bike
3 bike maximum capacity
HR1200/1210, 4 bike max-
imum capacity on HR1400
3 BIKE VERSION PARTS LIST
Item
Description
A
vertical post
B*
base assembly
C
short hook
D
long hook
E
left wheel holder
F
right wheel holder
G
pivot bolt
H
receiver tube
I
pivot nut
J
pivot washers
K
locking hitch pin
L
security cable
M
wheel support tube
R
clip
Model HR1210 – 3 Bike, 1 ¼" rec.
Pour instructions en Français, continuer aux pages 6 et 7.
Qty
2
1
2
1
3
3
1
1
1
2
1
1
4
1
1
Model HR1400 - 4 Bike, 2" rec.
Features new
ratchet system
A
4 BIKE VERSION PARTS LIST
Item
A
B1
B2
Fig. 3
C
D
E
F
G
H
I
J
K
L
M
N*
R
*see detailed drawing pg 4, Fig. 11a
Description
Qty
vertical post
base assembly
extension assy
short hook
long hook
left wheel holder
right wheel holder
pivot bolt
receiver tube
pivot nut
pivot washers
locking hitch pin
security cable
wheel support tube
extension hardware
clip
Fig. 2
2
1
1
2
2
4
4
1
1
1
2
1
1
4
1
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hollywood Racks HR1200
Summary of Contents for Hollywood Racks HR1200

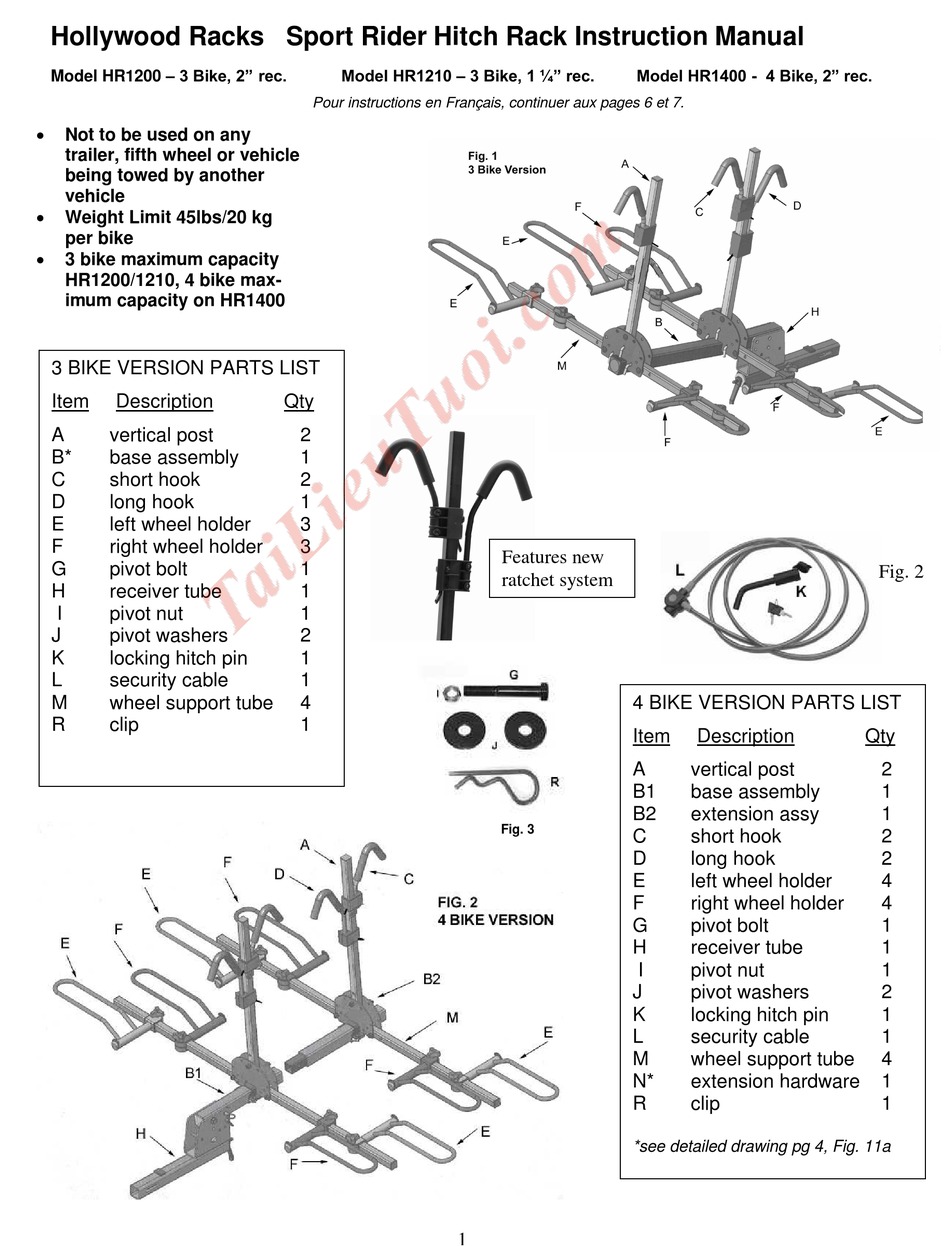

- Page 1 Hollywood Racks Sport Rider Hitch Rack Instruction Manual Model HR1200 – 3 Bike, 2” rec. Model HR1210 – 3 Bike, 1 ¼” rec. Model HR1400 - 4 Bike, 2” rec. Pour instructions en Français, continuer aux pages 6 et 7.
- Page 2 Assembly Instructions: Tools Required: Two 8” adjustable wrenches or equivalent, Phillips screwdriver. For ease of assembly, we suggest that you use your vehicle’s hitch. Step 1: Assemble Receiver Tube to Base Assembly 1. Install your receiver tube H into the hitch. Unlock hitch pin K and insert it through hole in the hitch and the rack.
- Page 3 Step 2: Install Wheel Holders: See Fig. 8: Rotate and remove L pins From holes A. Rotate wheel tubes to a horizontal position, then replace L pins into holes B. Slide wheel Holders E and F onto wheel tubes as indicated below. Fig.
- Page 4 Step 4: Installing extension assembly on 4 bike model. Slide extension assembly B1 into base assembly B per Fig. 11. Align holes and insert bolts through the Fig. 11a walls of the tubes (Fig.11b). The Fig. 11 square holes in the inner tube will prevent the bolts from spinning, and the bolt heads should be almost flush with the outer tube.
- Page 5 Step 5: Installing bikes on the rack Fig. 16 The bikes should be mounted from inside (1 bike) to the outer most bike (3 or 4 bike). See Fig. 16. The bikes should always be positioned so that the lowest point on the bike frame’s top tube is close to the vertical post (Fig.
- Page 6 Hollywood Sport Rider SE . Porte-vélo pour atelage remorque. HR1200- 3 Vélo, atelage 2” HR1210- 3 Vélo, atelage 1-1/4” HR1400- 4 Vélo, atelage 2” Ne pas utiliser ce produit sur une remorque ou un véhicule qui est remorqué. Limite de poids par vélo de 45lbs ou 20 kgs Capacité...
- Page 7 Baisser les crochets sur le cadre et serrer les molettes fermement (Fig 17a-17e). Serrer les les sangles des roués.Répèter pour le deuxième vélo (côté exterieur du mât). Continuer pareillement pour le troisième (HR1200/1210) et quatrième vélo (HR1400 seulement). Important: Pour les vélos femmes/ mixte ou avec cadre avec tube central incliné.
- Page 8 (at its option) a defective part without charge for labor or parts. Hollywood Racks may elect (at its option) to issue a refund equal to the purchase price paid for the product.
