Hollywood Racks
Model No. HR4000
For use on 2" hitches only. Do not use 1 ¼" -2" hitch adapters
Maximum weight 35lbs/16kg per bicycle. Do not use with Electric
bicycles, motorized bicycles, mopeds or motorcycles
This product is not intended for use on any trailer, fi�h wheel or
vehicle being towed by another vehicle.
For video & installa�on instruc�ons, please visit Hollywoodracks.com
Des�na�on 4 Hitch Rack
2" hitches only - 4 bike capacity - Maximum weight 35 lbs/16kg per bike

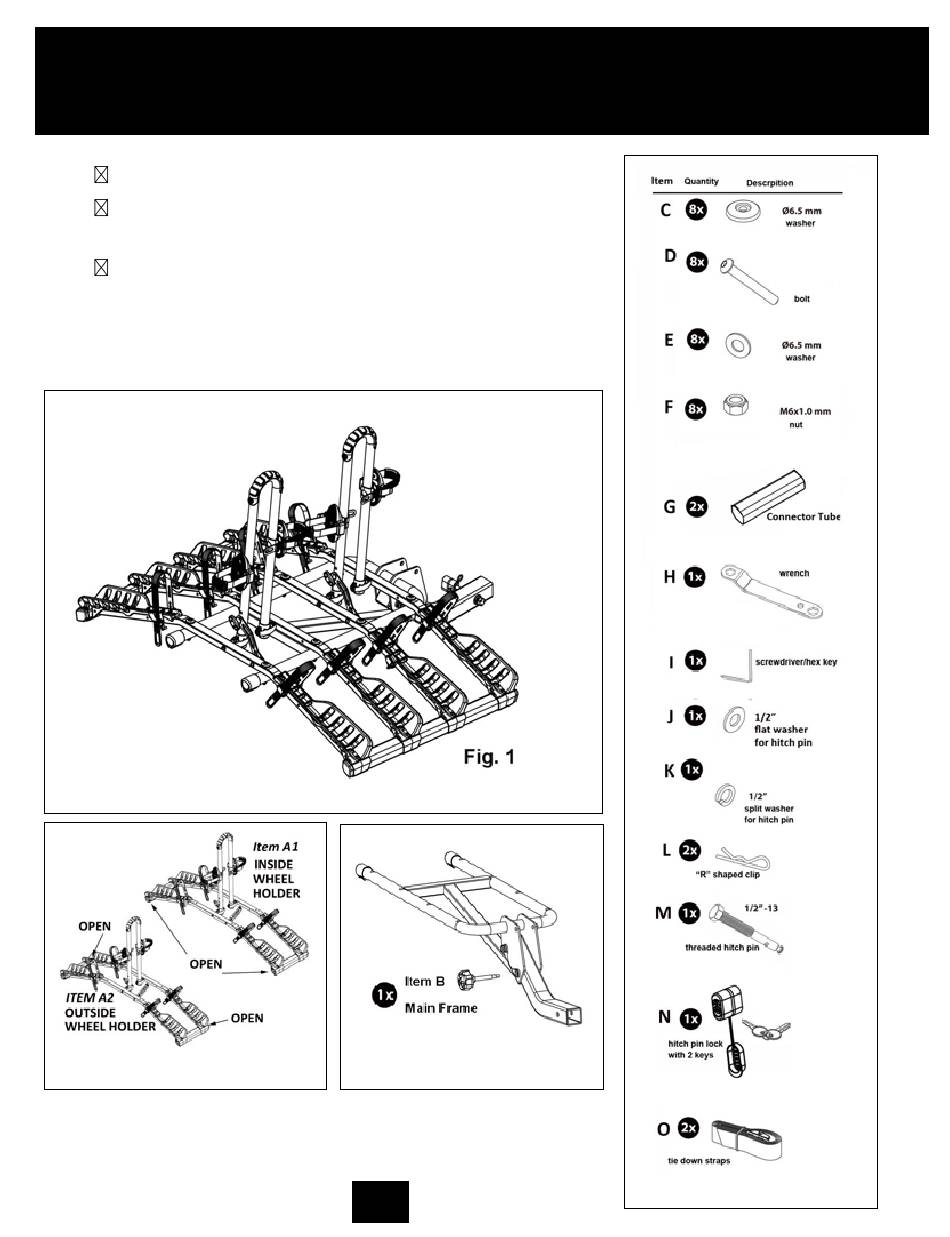

1
Assembly and Instruction Manual
94-2610-224-20-V1/20180921
M6x65 mm
Advertisement
Table of Contents
Related Manuals for Hollywood Racks HR4000
Summary of Contents for Hollywood Racks HR4000
- Page 1 Des�na�on 4 Hitch Rack Hollywood Racks Assembly and Instruction Manual Model No. HR4000 2” hitches only - 4 bike capacity - Maximum weight 35 lbs/16kg per bike For use on 2” hitches only. Do not use 1 ¼” -2” hitch adapters Maximum weight 35lbs/16kg per bicycle.
- Page 2 Step 1: Assembly of bike rack Install knob into bracket per Fig. 2 Insert Clip L through hole in knob Place the “inside” wheel holder A1 on top of the main frame B per Fig. 4. Align the holes Assemble (There are four bolt/washer/nuts per wheel holder).
- Page 3 Step 2: Installing rack into 2” trailer hitch Fig. 9 Fig. 8 Fig. 10 Insert the bike rack’s hitch tube into the vehicle’s trailer hitch receiver. Align the holes of the hitch tube with the receiver. Place split washer K then the flat washer J onto hitch pin M per Fig.
- Page 4 To remove strap and buckle, unscrew the knob and relocate the bolt with buckle to outer hole position. Re-install strap onto bolt and install knob. Buckle opening must be on top when inserting strap. Tighten knob securely Step 4: Mounting and securing bikes Please read this first: Mounting four bikes to the Destination 4 hitch rack is simple, but...
- Page 5 Mounting and securing the first bike: Place the bike (handlebars on driver side) onto the inner most wheel tray per Fig. 17. Rotate the frame ratchet strap (Fig. 18) so that it aligns with the bike’s frame. Insert the strap into the top of the First Bike Installation buckle and pull the strap tight per Tip: rotate pedals so that...
- Page 6 Mounting and securing the third bike: With the outer mast in the folded position, place the third bike (handlebars on driver side) into the wheel trays per Fig. 24. Gently lean the bike against the Fig. 26 second bike (consider using some towels or padding between them to prevent any frame contact).
- Page 7 Fold Up Function Fig. 30 To fold the Destination 4 rack against the back of the car: Fig. 31 Fold down the masts >> Fasten one of the wheel ratchet straps around the mast to prevent it from moving when the rack is folded against the vehicle >>...
- Page 8 Hollywood Racks will remedy defects in materials and workmanship by repairing or replacing (at its option) a defective part without charge for labor or parts. Hollywood Racks may elect (at its option) to issue a refund equal to the purchase price paid for the product.
