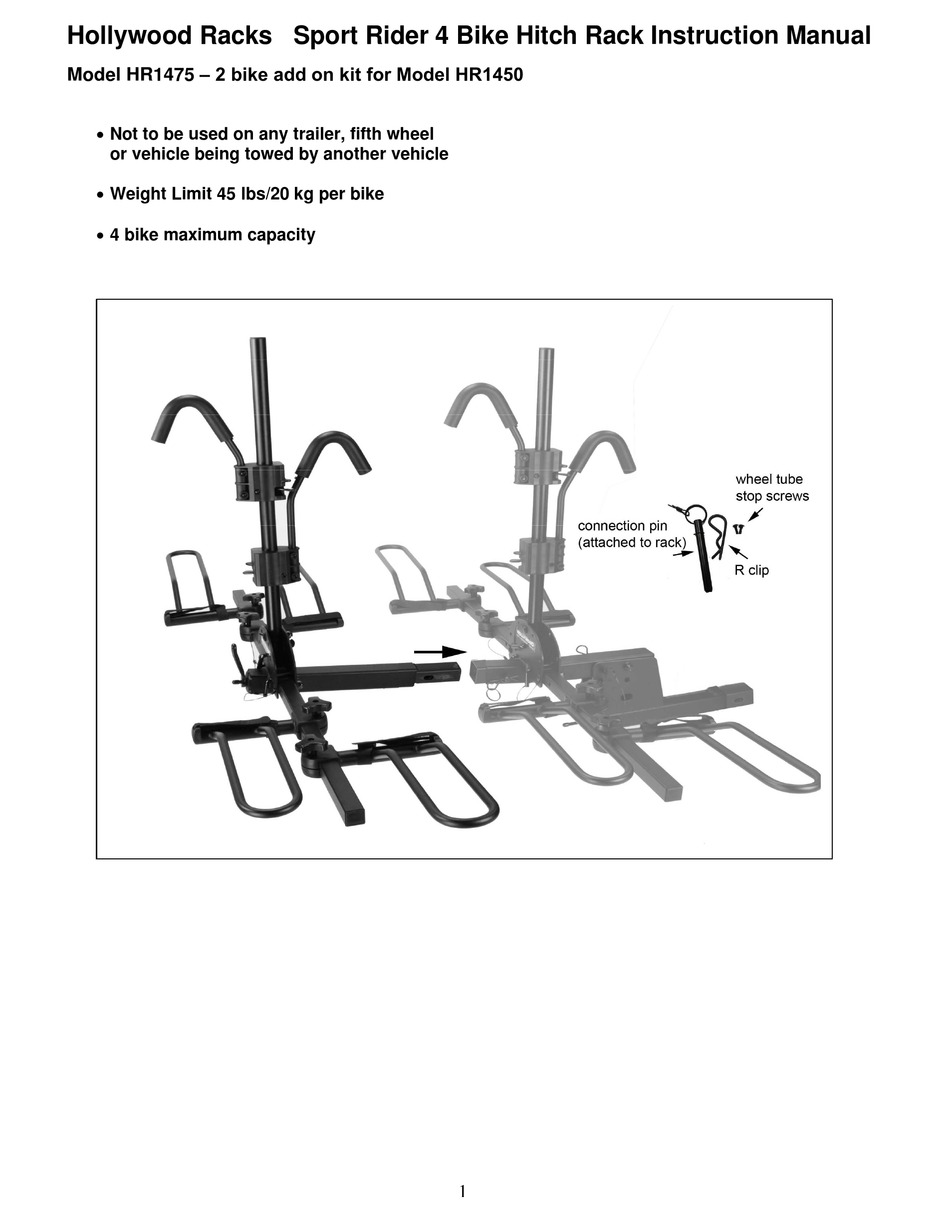

- Page 1 Hollywood Racks Sport Rider 4 Bike Hitch Rack Instruction Manual Model HR1475 – 2 bike add on kit for Model HR1450 Not to be used on any trailer, fifth wheel or vehicle being towed by another vehicle Weight Limit 45 lbs/20 kg per bike...
- Page 2 Installing extension assembly for 4 bike capacity Note: Remove front square reflector cap. You will need a Phillips head screwdriver (screw located on bottom of tube. (Please put it someplace where you won’t lose it!) Slide extension assembly all the way into Fig.
- Page 3 Step 3: Installation and operation of Clamp System Position the long frame hook on top of the round vertical post facing the vehicle. Squeeze the lever and the tab together, so that the lever is all the way up (engaged). Now wiggle the plastic housing down onto the tube aligning the index guides with the index slots.
- Page 4 (at its option) a defective part without charge for labor or parts. Hollywood Racks may elect (at its option) to issue a refund equal to the purchase price paid for the product.
