Hollywood Racks Trike Adapter 2 Assembly And Installation Instructions Manual

Hollywood Racks
Not to be used on any trailer, fifth wheel or vehicle being towed by another vehicle
Weight Limit: 135 lbs
Not warranted to be used for carrying electric or motorized bicycles/tricycles or motorcycles

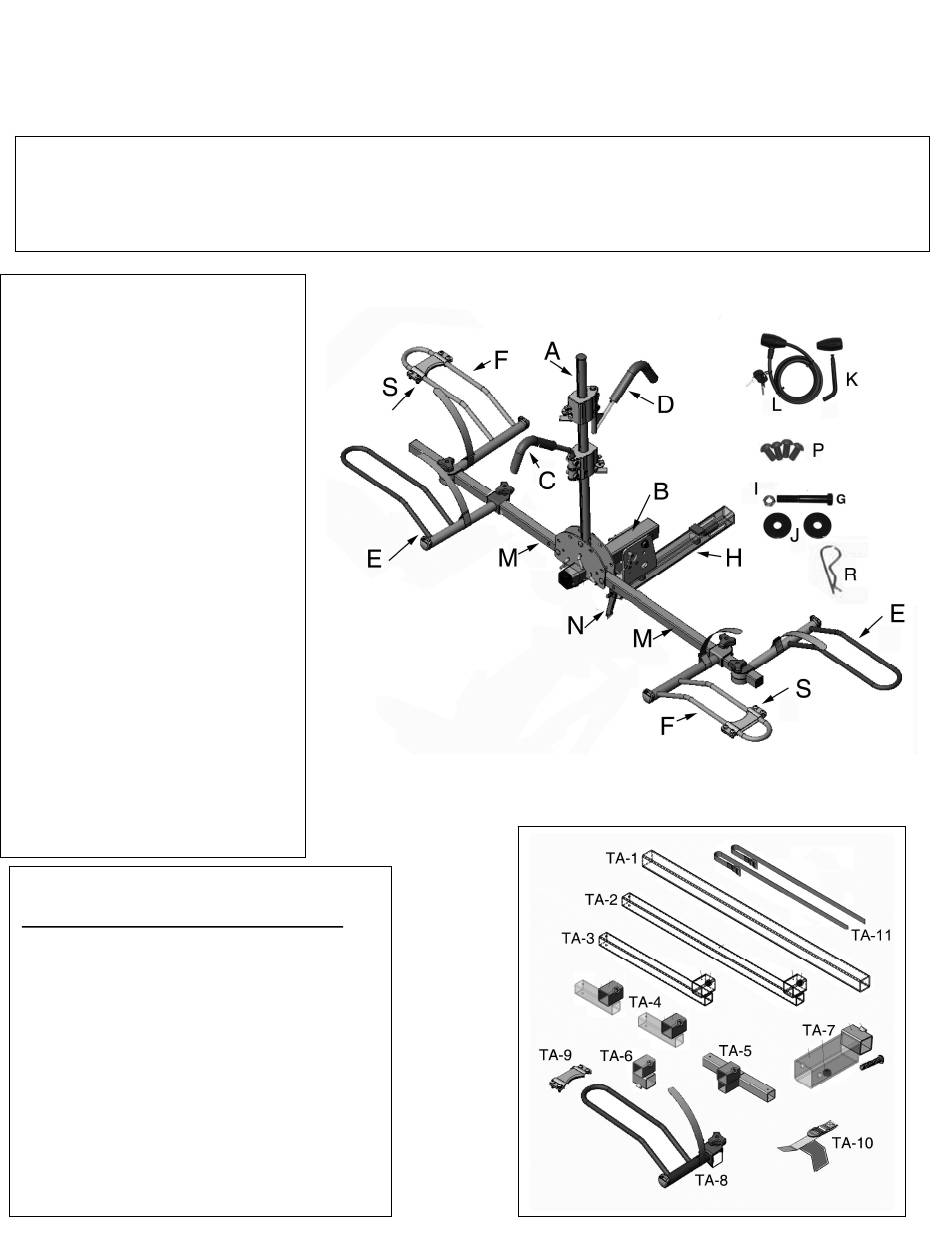

BIKE RACK PARTS LIST

Item Description
A vertical post
B base assembly
B1 Front Cap
C short hook clamp
D "Z" hook clamp
E left wheel holder
F right wheel holder
G pivot bolt
H receiver tube
I pivot nut
J pivot washers
K locking hitch pin
L security cable
M wheel support tube
N extension lever
P "stop" screws
R clip
S Small Wheel Adapter 2
T hex key
U Tie down straps
*Extra wide for recumbents

TRIKE ADAPTER PARTS LIST

Item Description
TA-1 straight tube
TA-2 long connector
TA-3 medium connector
TA-4 short connector
TA-5 universal connector
TA-6 cross connector
TA-7 front main bracket
TA-8 left side wheel holder
TA-9 small wheel adapter
TA-10 safety flag
TA-11 tie down straps
*
standard width
Fits Hollywood Racks Sportrider model HR1450R
Qty
1
1
1
1
1
*
2
*
2
1
1
1
2
1
NOTE: THIS BIKE RACK
1
(HR1450R) IS SHOWN
4
FOR REFERENCE ONLY
1
AND IS NOT INCLUDED
4
WITH THE TRIKE
2
ADAPTER MODEL #2.
(The Trike Adapter Model # 2
1
is included with the
2
Hollywood-Sunlite® Model
HRT220).
Qty
1
1
1
2
1
1
1
*
1
1
1
2
Trike Adapter Model #2
Assembly and installation instructions
A
1
