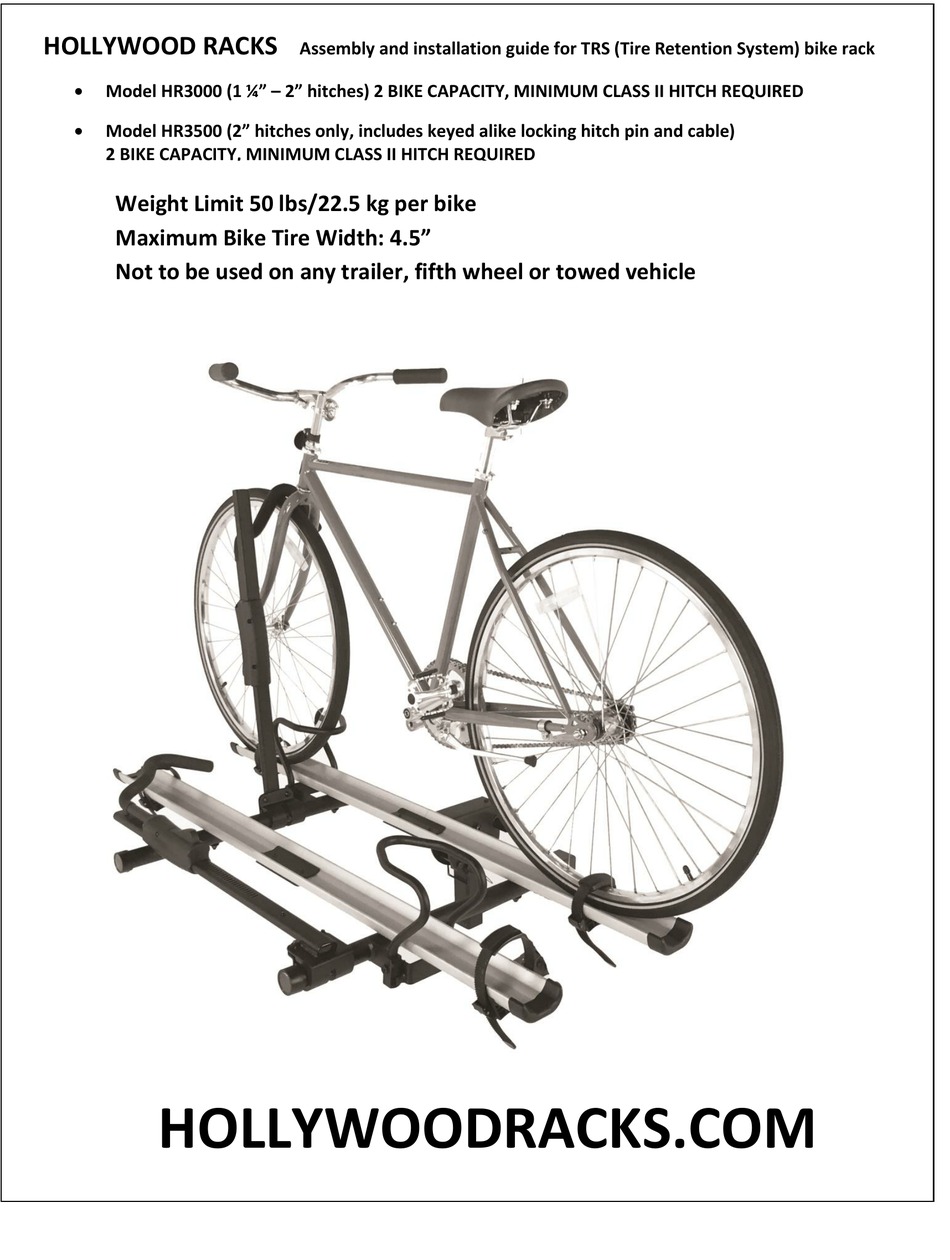

HOLLYWOOD RACKS
Model HR3000 (1 ¼" – 2" hitches) 2 BIKE CAPACITY, MINIMUM CLASS II HITCH REQUIRED
Model HR3500 (2" hitches only, includes keyed alike locking hitch pin and cable)
2 BIKE CAPACITY, MINIMUM CLASS II HITCH REQUIRED
Weight Limit 50 lbs/22.5 kg per bike
Maximum Bike Tire Width: 4.5"
Not to be used on any trailer, fifth wheel or towed vehicle
HOLLYWOODRACKS.COM
Assembly and installation guide for TRS (Tire Retention System) bike rack
Advertisement
Related Manuals for Hollywood Racks HR3000
Summary of Contents for Hollywood Racks HR3000
- Page 1 Assembly and installation guide for TRS (Tire Retention System) bike rack Model HR3000 (1 ¼” – 2” hitches) 2 BIKE CAPACITY, MINIMUM CLASS II HITCH REQUIRED Model HR3500 (2” hitches only, includes keyed alike locking hitch pin and cable) 2 BIKE CAPACITY, MINIMUM CLASS II HITCH REQUIRED Weight Limit 50 lbs/22.5 kg per bike...
- Page 2 MODEL HR3500) TIRE CAGE LOCKING HITCH PIN & CABLE WHEEL TRAY (HALF) (INCLUDED WITH HR3500) UPPER PLATE 1/1”4-2” HITCH TUBE (INCLUDED LOWER PLATE WITH MODEL HR3000) J1, J2 TIRE CAGE CAPS RATCHET STRAP THREADED HITCH PIN WITH CLIP (INCLUDED WITH HR3000)
- Page 3 6mm internal tooth lock washer nylon washer, 8.5mm ID socket screw, M6x40mm washer, 6.5mm ID nylock nut, M6 Phillips head screw, M6 4mm Allen key, HR3000 only Fig. 3 socket head bolt, ½-13 x 84mm nylock nut, ½-13 Hollywood Racks stickers washer, 13.5mm ID...
- Page 4 Step 1: Assemble wheel trays Per Fig. 5: Identify required components (quantity indicated is per wheel tray) Per Fig. 6: Insert wheel ratchet strap K into the open end of wheel tray G. Insert carriage bolt c-c into the end of tray G.
- Page 5 Fig. 9 Step 2: Assemble main frame to Fig. 10 hitch tube. Per Fig. 10, prepare the components on a flat table or work surface. Per Fig. 11, locate the Spring Pins and holes in the folding bracket Note: it will be easier to do this part of the assembly on a flat surface or work table.
- Page 6 Fig. 14 Step 3A: For model HR3000 (1 ¼”-2” threaded hitch pin version, locking hitch pin NOT included): Install Hitch Tube (c) into vehicle’s trailer hitch Per Fig. 15, 16 & 17: With the rack “folded flat” against the rear of the vehicle per Fig 14, insert the receiver tube into the hitch and align the holes.
- Page 7 Front lever position after tightening should always be pointed to the side to avoid damage when going up or down steep driveways. Fig. 19 Fig. 18 OPTIONAL LOCKING HITCH PIN AND CABLE IS AVAILABLE FOR MODEL HR3000.
- Page 8 Step 4: Fold-Up/Fold-Down Per Fig. 20 Pull the rear spring pin out and rotate the rack down until the front spring pin clicks into place. To return the rack to its folded position, pull the front spring pin out and rotate the rack up until the rear spring pin clicks into place.
- Page 9 Step 6: Install Tire Hooks Per Fig. 23: Prepare the tire hooks, washers f-f and screws k-k (Phillips screwdriver required). Use Inside Tire Hook E for inner bike position (closest to car). Slide the Inside Tire Hook E down over the outer ratchet arm. Note the trigger faces the driver’s side of the vehicle.
- Page 10 Fig. 28 Fig. 27 Step 8: Tilt-Down Function Per Fig. 28, 29: Lift up the rack and remove Fig. 29 the snapper pin. Pull out the front spring pin and hold the main frame while it tilts down into position. To return the rack to its in-use or folded up position, lift the main frame until the front spring pin clicks into place.
- Page 11 Fig. 32 Fig. 31 Fig. 35 Fig. 33 Fig. 34 Fig. 37 Fig. 36 DOUBLE CHECK BEFORE DRIVING THAT HOOKS ARE FIRMLY ENGAGED AGAINST TIRE AND RATCHET WHEEL STRAPS ARE FIRMLY ATTACHED. DRIVE SLOWLY ON BUMPY OR DIRT ROADS. THIS PRODUCT IS NOT TO BE USED ON ANY TRAILER, FIFTH WHEEL OR TOWED VEHICLE.
- Page 12 Hollywood Racks will remedy defects in materials and workmanship by repairing or replacing (at its option) a defective part without charge for labor or parts. Hollywood Racks may elect (at its option) to issue a refund equal to the purchase price paid for the product.
