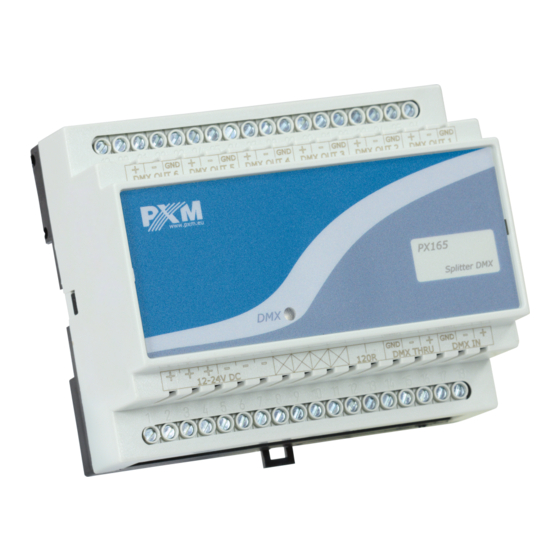

- Page 1 PX165 Splitter DMX User manual...
-
Page 2: Table Of Contents
5 Information communicated by LED indicator........7 6 Connection scheme...................8 7 Dimensions....................10 8 Technical data..................11 Manufacturer reserves the right to make modifications in order to improve device operation. PXM Marek Żupnik sp.k. Podłęże 654 tel. +48 12 385 83 06 32-003 Podłęże mail: info@pxm.pl Rev.1-5 BDO register number 000005972 www.pxm.pl... -
Page 3: Description
The combination of a large number of receivers in series can be troublesome, therefore it was possible to create branching DMX tracks using a splitter. With PX165, it possible to split the DMX input signal into 6 independent branches. The individual outputs are galvanically isolated from input and between each other. -
Page 4: Safety Conditions
Safety conditions PX165 Splitter DMX is a device powered with safe voltage 12 – 24V DC, however, during its installation and use the following rules must be strictly observed: 1. The device may only be connected to 12 – 24V DC with current- carrying capacity compatible with technical data. -
Page 5: Connectors And Control Elements
Connectors and control elements 6 DMX outputs (optically and galvanically isolated) DMX signal LED indicator PX165 + + + – – – 12-24V DC 120R 12 – 24V DC power supply DMX input pin shortage (acts as a terminator) passive DMX output... -
Page 6: Dmx Signal Connection
PX165 have to be connected to DMX line in serial mode, with no branches on DMX control cable. That mean that DMX line, from the signal source, must be connected to DMX IN pins of PX165 and later, directly from DMX THRU pins to the next device in DMX chain. -
Page 7: Information Communicated By Led Indicator
Information communicated by LED indicator On the device housing there is a diode indicating the operating status of the device. Action Function blinks two times blue power connection blinking in blue (every 0,5s) DMX signal transmission the device does not receive the DMX fast blink (every 3s) in blue signal... -
Page 8: Connection Scheme
Connection scheme a) connection of the DMX controller and two dimmers to DMX outputs DMX terminator (on last device) Splitter DMX PX165 PX165 PX165 + + + – – – + + + – – – 12-24V DC 12-24V DC... - Page 9 32 devices INPUT: INPUT: OUTPUT: OUTPUT: INPUT: INPUT: OUTPUT: OUTPUT: Splitter DMX Splitter DMX PX165 PX165 PX165 PX165 + + + – – – + + + – – – 12-24V DC 12-24V DC 120R 120R max. 32 devices...
-
Page 10: Dimensions
120R pins – if the splitter is the last device and no receiver is connected to the DMX THRU output, the bridge on these pins acts as a terminator PX165 120R shorting of 120R pins, (works like connecting a terminator,... -
Page 11: Technical Data
Technical data type PX165 power supply 12 – 24V DC DMX channels number of DMX inputs number of DMX outputs optical isolation of DMX lines built-in terminator yes (shorting of two 120R pins) breakdown voltage of the I / O isolation >1000V... - Page 12 Podłęże, 03.04.2019 DECLARATION OF CONFORMITY PXM Marek Żupnik spółka komandytowa Podłęże 654, 32-003 Podłęże we declare that our product: Product name: Splitter DMX Product code: PX165 meets the requirements of the following standards, as well as harmonised standards: PN-EN IEC 63000:2019-01...
