BEFORE GETTING STARTED
! When unpackaging the Cable management system, make sure to remove the
security screw used to hold the counterweight during transport.
¡
Installing on a new single charging station.
First, install the pedestal and the charging station. Refer to CoRe+ MC
Installation Guide for pedestal and CoRe+
MC Installation Guide respectively. Then, install the Cable management system
as indicated below. If the pedestal is pre-drilled, use the ¼-20 screws provided
in the package. Otherwise, use the drilling template and self-drilling screws also
included with the kit. Refer to the illustration on the former page to know where
to place the template on the pedestal, and mark the holes to drill.
¡
Installing on an existing single charging station.
Drill holes that will be used to install the mount bracket for the column with the Cable
management system and the empty column. Use the drilling template and the self-drilling
screws provided with the kit. Refer to the illustration on the former page to know where to place
the template on the pedestal, and mark the holes to drill.
Cable management
system installation

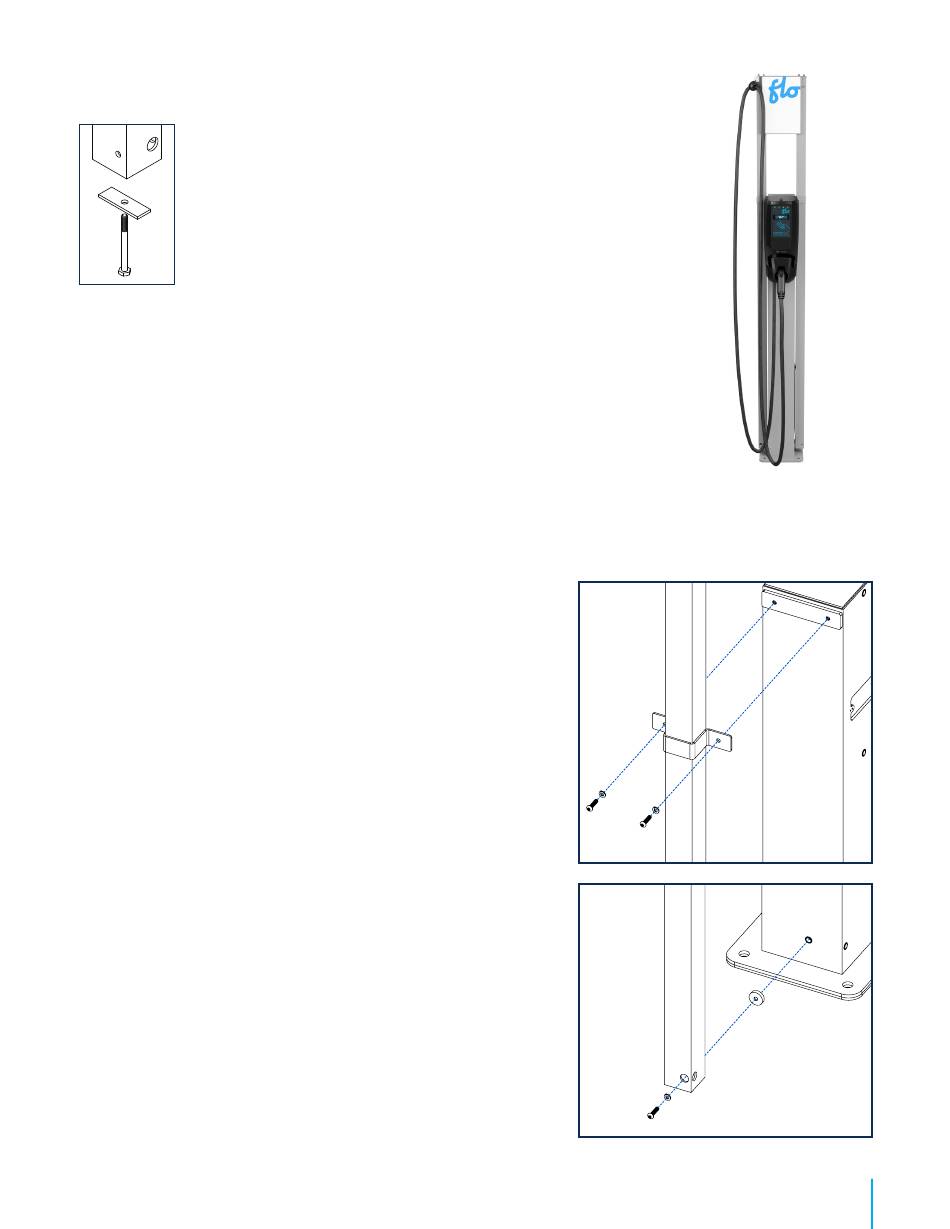

1. Install the rectangular spacing shim, place the column
and than install the upper mount bracket on top.
Screw parts loosely with ¼-20 or self-drilling screws,
depending on the type of pedestal you have, so the
Cable management system column is maintained in
place and moves freely to install the lower mounting
hardware.
Recommendation : To position the column, when
standing in front of the charging station, make sure to
place the output of the Cable management on the exterior
side.
2. Screw the column of the Cable management system
by placing the round spacing shim (circled in red in
the image included) between the pedestal and the
column, and tighten the screws to solidly secure the
column.
3. Secure the top bracket.
4. Install the empty column on the opposite side of the
charging station by following the above steps 1 to 3.
5. Proceed with the positioning of the cable clamp. Refer
to page 15.
6. Install the poster panel. Refer to page 16.
Caution : This pedestal is certified like an electrical enclosure,
and any alteration must comply with local regulation.
