ELECTRICAL SAFETY
4.3.3

Applied Part Leakage Current (Type BF) (for Optional EM Tracking Unit)

General Information
The following points are defined for the EM Tracking Unit.

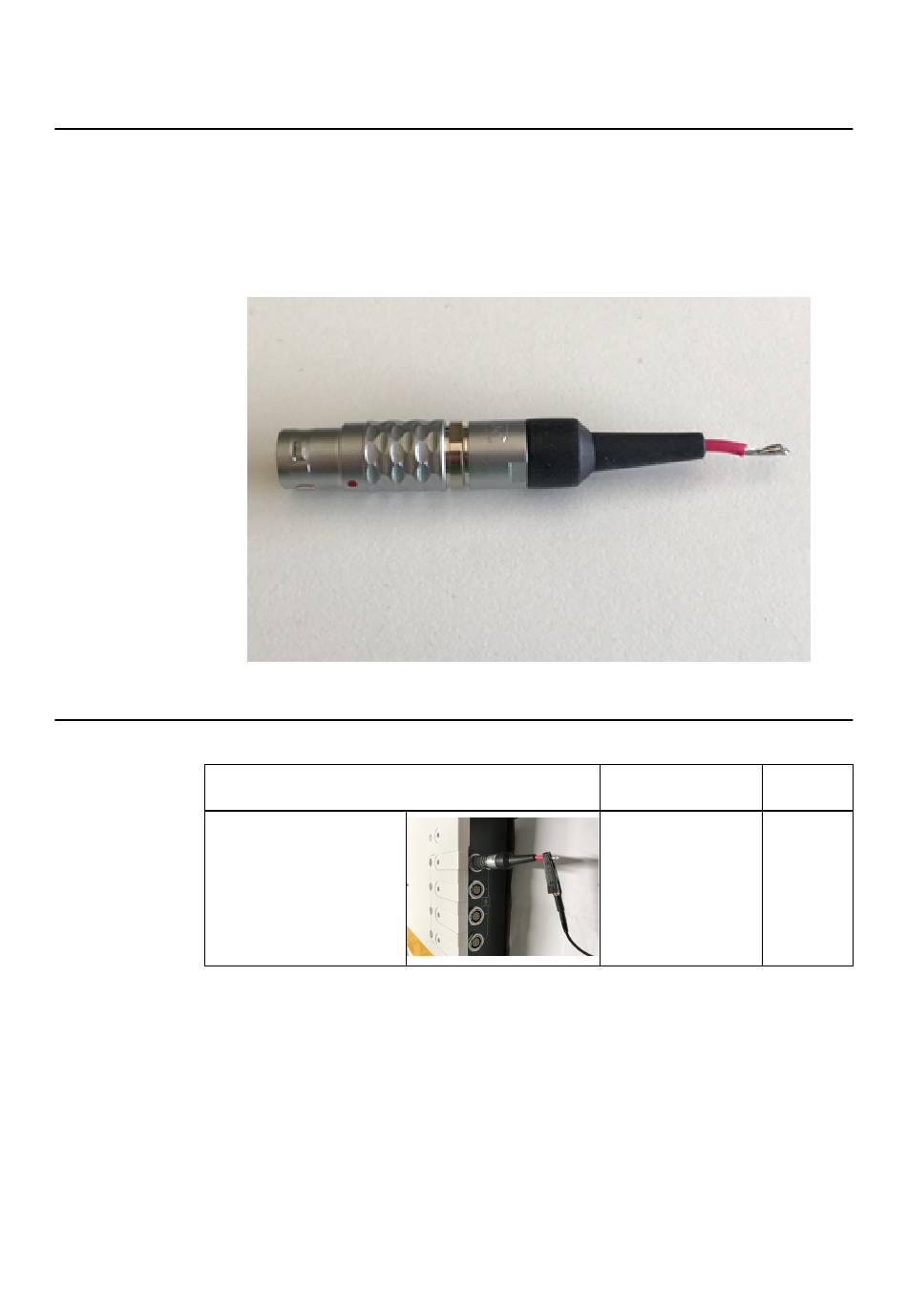

An adapter is necessary for the EM connecting unit. This adapter must have all connectors short
circuit on the plug.
Use the IEC 62353:2007 Chapter 5.3.4.3.2 alternative measurement and connect the applied part
to the input socket in your measurement device.
For example:
Measurement Point
Point Tested
Adapter plug on EM con-
necting unit (one socket is
sufficient for the measure-
ment)
Technical User Guide Rev. 1.1 Curve Dual Navigation Station Ver. 1.2
Figure 11
Measured Value Test
Passed?
