Summary of Contents for KTM 1290 Super Duke GT 2019

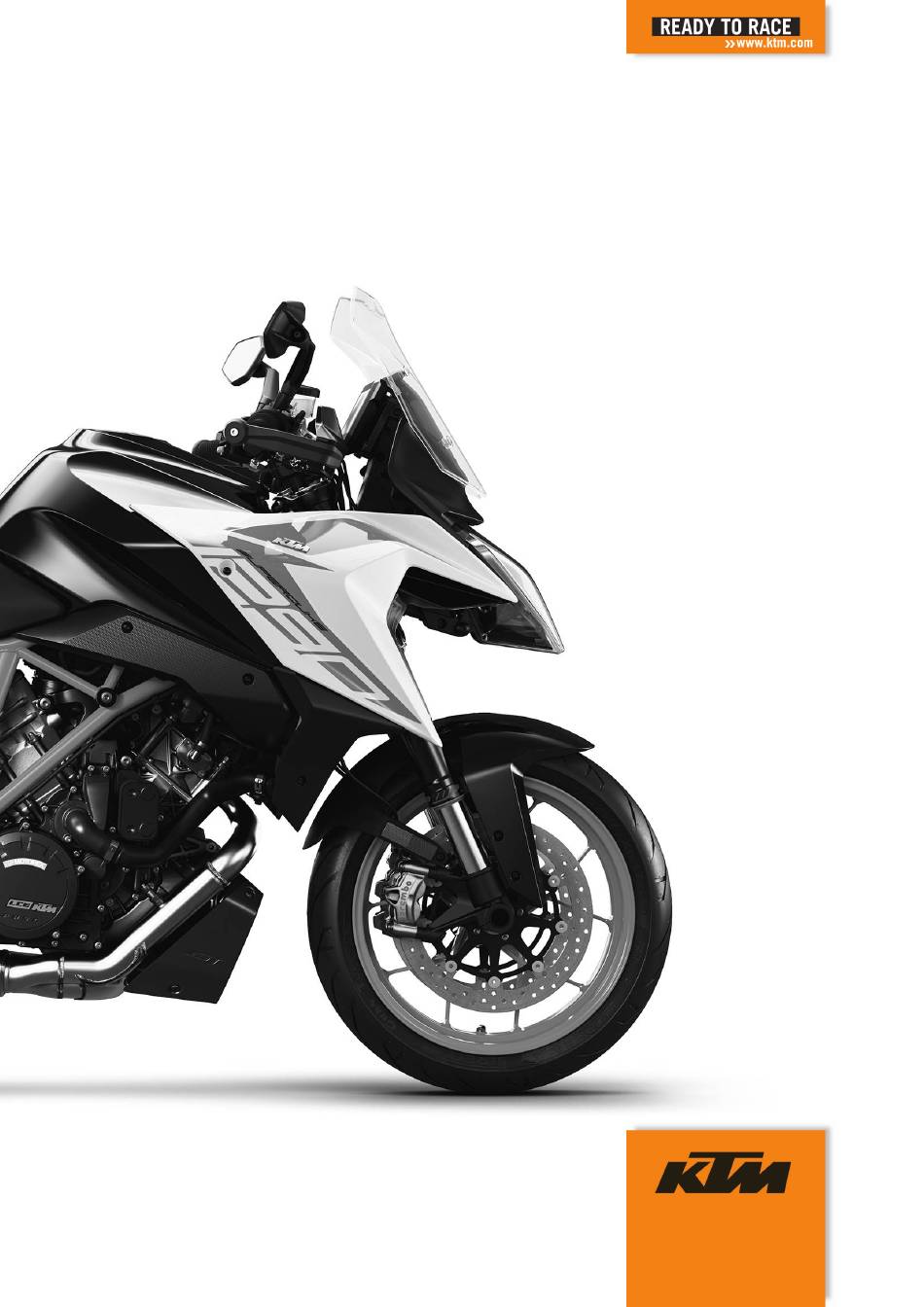

- Page 1 SETUP INSTRUCTIONS 2019 1290 Super Duke GT Art. no. 3213982en...
- Page 3 KTM accepts no liability for delivery options, deviations from fig- ures and descriptions, misprints, and other errors. The models portrayed partly contain special equipment that does not belong to the regular scope of supply.
-
Page 4: Means Of Representation
1 MEANS OF REPRESENTATION Symbols used The meaning of specific symbols is described below. Indicates an expected reaction (e.g. of a work step or a function). Indicates an unexpected reaction (e.g. of a work step or a function). Indicates a page reference (more information is provided on the specified page). Indicates information with more details or tips. - Page 5 To operate the vehicle, the vehicle electronics must be enabled. This process is conducted during initial setup in KTM Dealer.net. Enabling ensures that the initial setup in KTM Dealer.net is docu- mented. Enabling can be performed either temporarily, e.g. for a test ride, or permanently for vehicle handover.
- Page 6 2 SETUP – Remove the controls from the transport holder. Remove the screws of the handlebar clamp. Take off the handlebar clamp and transport holder. S03256-01 – Position the controls on the right half of the handlebar, but do not tighten yet. S03257-01 Warning Danger of accidents A repaired handlebar poses a...
- Page 7 SETUP 2 – Tighten screws of the controls. Guideline Remaining screws, 10 Nm (7.4 lbf ft) chassis Screw, combination 5 Nm (3.7 lbf ft) switch, right S03259-10 – Join the hand guard holders with the hand guard shells. The hand guard holders snap into the hand guard shells. –...
- Page 8 2 SETUP (Super Duke GT US) – Bond the reflectors on the right and left side of the reflec- tor holder. – Mount the reflector holder on license plate holder Guideline Remaining screws, 10 Nm (7.4 lbf ft) chassis S03373-10 –...
- Page 9 Observe the accompanying fitting instructions. – Charge the 12-V battery. ( p. 11) S03376-10 – Remove the protective film. – Refuel. ( p. 14) – Prepare the vehicle according to the specifications in the KTM Dealer.net for handover to the customer.
-
Page 10: Mounting The Passenger Seat
3 WORK Removing the passenger seat – Insert Race‑on key or the black ignition key into the seat lock and turn clockwise. – Raise front of the passenger seat, pull toward the fuel tank, and take off from above. – Remove ignition key. - Page 11 WORK 3 Mounting the front rider's seat Main work – Attach recesses on the front rider's seat to the fuel tank, push the front rider's seat forward. – Position locking pin in the lock housing and push down the front rider's seat at the rear. The locking pin engages with an audible click.
- Page 12 3 WORK Opening the storage compartment on the right – Turn handlebar all the way to the left. – Fold out storage compartment in area toward the fork leg. – Open storage compartment. Info The storage compartment must be closed before going on a ride.
-
Page 13: Charging The 12-V Battery
WORK 3 – Tighten nuts Guideline Remaining nuts, 25 Nm (18.4 lbf ft) chassis – Make sure that there is sufficient space between the controls and fuel tank when the handlebar has been driven in fully after completing the work. 3.10 Charging the 12-V battery Warning... - Page 14 3 WORK Main work – Connect the battery charger to the 12-V battery. Adjust the battery charger. EU battery charger XCharge‑professional (00029095050) Alternative 1 US battery charger XCharge‑professional (00029095051) Alternative 2 311910-10 UK battery charger XCharge‑professional (00029095052) Alternative 3 CH battery charger XCharge‑professional (00029095053) Info Follow the instructions of the charger and the manual.
- Page 15 WORK 3 Preparatory work – Switch off ignition - to do this briefly press Race-on button (maximum of 1 second) with the ignition switched on. – Remove passenger seat. ( p. 8) – Remove the front rider's seat. ( p. 8) Main work –...
- Page 16 3 WORK Main work – Position negative cable ; mount and tighten the screw. Guideline Screw, battery termi- 4.5 Nm (3.32 lbf ft) S03234-13 – Fold down engine electronics control unit – Mount and tighten screw Guideline Remaining screws, 5 Nm (3.7 lbf ft) chassis S03233-13 Finishing work...
- Page 17 WORK 3 Note Environmental hazard Improper handling of fuel is a danger to the environment. – Do not allow fuel to enter the groundwater, the soil, or the sewage system. – Switch off the engine. – Open fuel tank filler cap. ( p.
- Page 18 3 WORK Condition The motorcycle is stationary. The engine is switched off. The ignition has been switched on or off for less than 1 minute. – Fold up cover slowly. The fuel tank filler cap is unlocked. – Fold up fuel tank filler cap S01718-10 3.15 Closing the fuel tank filler cap...
- Page 19 WORK 3 Setting the clock – Press UP or DOWN button until the time is marked. – Press SET button. The hour next to Clock flashes. – Press UP or DOWN button until the current hour is set. – Press SET button. The minute next to Clock flashes.
-
Page 20: Technical Data
4 TECHNICAL DATA Chassis tightening torques EJOT PT Remaining screws, chassis ® K50x12 1 Nm (0.7 lbf ft) EJOT PT Remaining screws, chassis ® K50x14 1 Nm (0.7 lbf ft) EJOT PT ® Remaining screws, chassis K50x16 2 Nm (1.5 lbf ft) Remaining screws, chassis EJOT PT ®... - Page 21 TECHNICAL DATA 4 Screw, foot brake cylinder 10 Nm (7.4 lbf ft) Loctite ® 243™ Screw, front wheel speed sensor 4 Nm (3 lbf ft) Screw, fuel pump 6 Nm (4.4 lbf ft) Screw, license plate holder on 12 Nm (8.9 lbf ft) lower rear panel Screw, radiator hose clip 3 Nm (2.2 lbf ft)
- Page 22 4 TECHNICAL DATA Screw, ignition lock (tamper-proof 25 Nm (18.4 lbf ft) screw) Screw, rear brake caliper 25 Nm (18.4 lbf ft) Loctite ® 2701™ Screw, rear brake disc 30 Nm (22.1 lbf ft) Loctite ® 243™ Screw, shift lever on footrest 20 Nm (14.8 lbf ft) Loctite ®...
- Page 23 TECHNICAL DATA 4 Screw, front wheel spindle M25x1.5 45 Nm (33.2 lbf ft) Thread greased Screw, steering head, top M25x1.5 18 Nm (13.3 lbf ft) Nut, rear axle, shock absorber side M35x1.5 200 Nm (147.5 lbf ft) Loctite ® 262™/lock the locking wire with locking varnish Nut, rear axle M50x1.5...
- Page 24 5 SUBSTANCES Super unleaded (ROZ 95/RON 95/PON 91) Standard/classification – DIN EN 228 (ROZ 95/RON 95/PON 91) Guideline – Only use unleaded super fuel that matches or is equivalent to the specified fuel grade. – Fuel with an ethanol content of up to 10 % (E10 fuel) is safe to use. Info Do not use fuel containing methanol (e.
- Page 25 *3213982en* 3213982en 01/2019 KTM Sportmotorcycle GmbH 5230 Mattighofen/Austria Photo: Mitterbauer/KISKA/KTM http://www.ktm.com...
