SETUP INSTRUCTIONS
2023
1290 SUPER DUKE GT
Art. no. 3214810en

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1290 SUPER DUKE GT 2023 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KTM 1290 SUPER DUKE GT 2023

Summary of Contents for KTM 1290 SUPER DUKE GT 2023

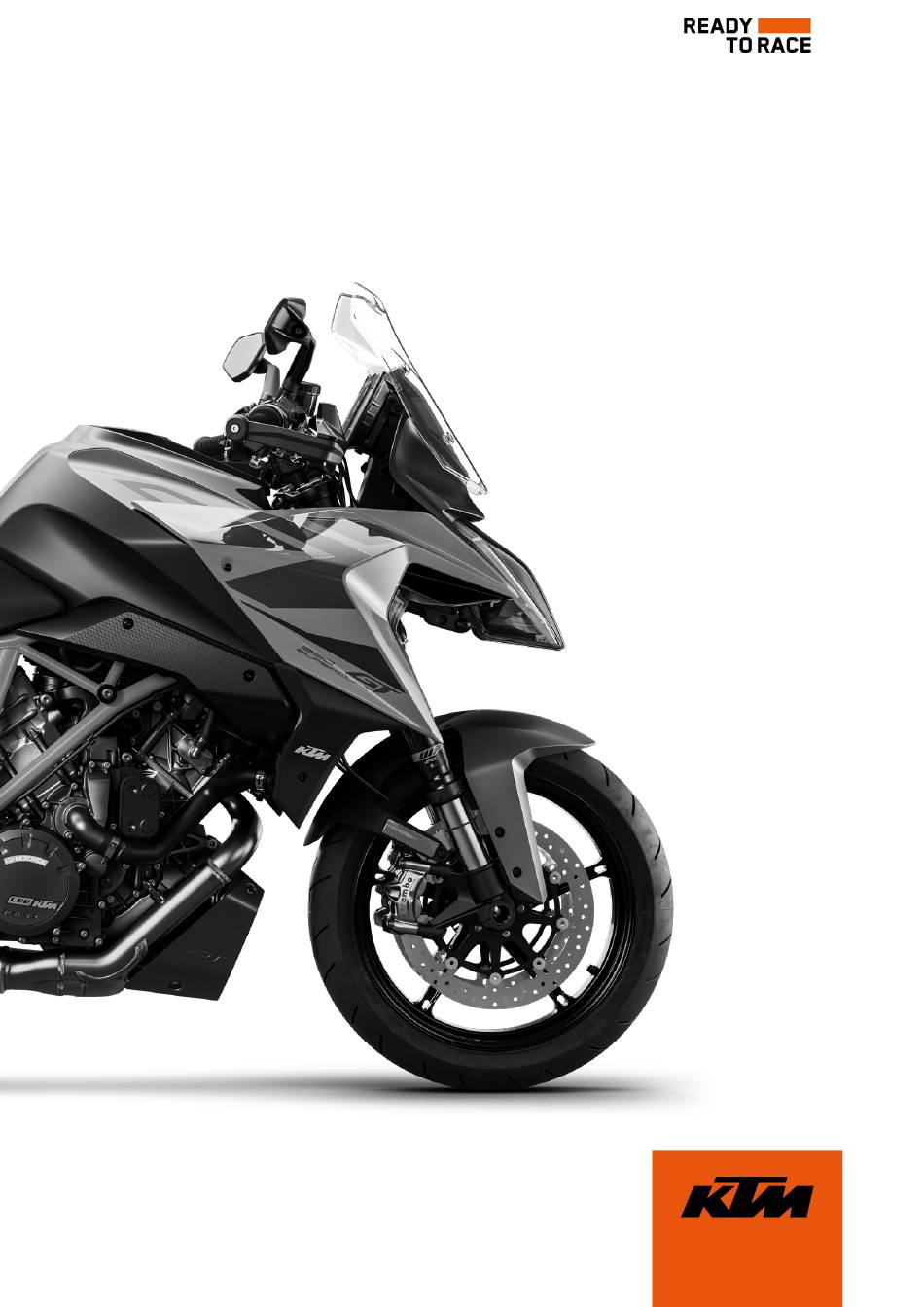

  • Page 1 SETUP INSTRUCTIONS 2023 1290 SUPER DUKE GT Art. no. 3214810en...
  • Page 3 KTM accepts no liability for delivery options, deviations from fig- ures and descriptions, misprints, and other errors. The models portrayed partly contain special equipment that does not belong to the regular scope of supply.

  • Page 4: Means Of Representation

    1 MEANS OF REPRESENTATION Symbols used The meaning of specific symbols is described below. Indicates an expected reaction (e.g. of a work step or a function). Indicates an unexpected reaction (e.g. of a work step or a function). Indicates a page reference (more information is provided on the specified page). Indicates information with more details or tips.
  • Page 5 To operate the vehicle, the vehicle electronics must be enabled. This process is conducted during initial setup in KTM Dealer.net. Enabling ensures that the initial setup in KTM Dealer.net is docu- mented. Enabling can be performed either temporarily, e.g. for a test ride, or permanently for vehicle handover.
  • Page 6 2 SETUP Info The procedure in the event of transport damage is described in the Customer Service Manual. – Remove the controls from the transport holder. Remove the screws of the handlebar clamp. Take off the handlebar clamp and transport holder. S03256-01 –...
  • Page 7 SETUP 2 – Tighten screws of the controls. Guideline Screw, brake assem- 5 Nm (3.7 lbf ft) Screw, combination 5 Nm (3.7 lbf ft) switch, right V02649-10 – Join the hand guard holders with the hand guard shells. The hand guard holders snap into the hand guard shells. –...
  • Page 8 2 SETUP (US) – Bond the reflectors on the right and left side of the reflec- tor holder. – Mount the reflector holder on license plate holder Guideline Remaining screws, 10 Nm (7.4 lbf ft) chassis S03373-10 – Remove the cable ties of the rider footrests. –...
  • Page 9 The first charging process may take longer with a new 12-V battery. – Remove the remaining film, padding, the corrugated card- board, and the other packaging material. – Refuel. ( p. 14) – Prepare the vehicle according to the specifications in KTM Dealer.net for handover to the customer.

  • Page 10: Mounting The Passenger Seat

    3 WORK Removing the passenger seat – Insert the RACE-ON key or the black ignition key into seat lock and turn clockwise. – Raise the front of the passenger seat, pull it toward the fuel tank, and take off from above. –...
  • Page 11 WORK 3 Mounting the front rider's seat Main work – Attach recesses on the front rider's seat to the fuel tank, push the front rider's seat forward. – Position locking pin in the lock housing and push down the front rider's seat at the rear. The locking pin engages with an audible click.

  • Page 12: Tighten Nuts

    3 WORK Opening the storage compartment on the right – Turn handlebar all the way to the left. – Fold out storage compartment in area toward the fork leg. – Open storage compartment. Info The storage compartment must be closed before going on a ride.

  • Page 13: Charging The 12-V Battery

    WORK 3 Guideline Remaining nuts, 25 Nm (18.4 lbf ft) chassis – Make sure that there is sufficient space between the controls and fuel tank when the handlebar has been driven in fully after completing the work. 3.10 Charging the 12-V battery Warning Risk of injury Battery acid and battery gases cause serious chemical burns.
  • Page 14 3 WORK Main work – Connect a battery charger to the 12-V battery. Adjust the bat- tery charger. EU battery charger XCharge‑professional (00029095050) Alternative 1 US battery charger XCharge‑professional (00029095051) Alternative 2 311910-10 UK battery charger XCharge‑professional (00029095052) Info Follow the instructions of the charger and the manual. –...
  • Page 15 WORK 3 Main work – Pull diagnostics connector off the holder. – Remove screw – Lift cover at the rear and pull toward the rear. – Fold up cover. V02619-10 – Disconnect negative cable from the 12-V battery. E03185-10 3.12 Connecting the negative cable of the 12-V battery Warning Risk of injury Battery acid and battery gases cause serious chemical burns.
  • Page 16 3 WORK – Fold down engine control unit – Mount and tighten screw Guideline Remaining screws, 5 Nm (3.7 lbf ft) chassis S03233-13 Finishing work – Mount the front rider's seat. ( p. 9) – Mount passenger seat. ( p. 8) –...
  • Page 17 WORK 3 – Switch off the engine. – Open fuel tank filler cap. ( p. 15) – Fill the fuel tank with fuel up to the lower edge of the filler neck. Total fuel tank 23 l Super unleaded capacity, approx. (6.1 US gal) (ROZ 95) p.
  • Page 18 3 WORK – Fold up cover slowly. The fuel tank filler cap is unlocked. – Fold up fuel tank filler cap S01718-10 3.15 Closing the fuel tank filler cap Warning Fire hazard Fuel is highly flammable and a health hazard. – Check that the fuel tank filler cap is locked cor- rectly after closing.
  • Page 19 WORK 3 Setting the clock – Press the UP or DOWN button until Set Clock is marked. – Press the SET button to open the menu. – Press the UP or DOWN button until Hours is highlighted. – Press the RIGHT or LEFT button until the current hour is set. –...

  • Page 20: Technical Specifications

    4 TECHNICAL SPECIFICATIONS Chassis tightening torques Brake fluid reservoir for rear brake 3.5 Nm (2.58 lbf ft) cover Nut, socket Plastic nut 4 Nm (3 lbf ft) Remaining screws, chassis EJOT PT ® K50x12 1 Nm (0.7 lbf ft) Remaining screws, chassis EJOT PT ®...
  • Page 21 TECHNICAL SPECIFICATIONS 4 Swing angle sensor screw 6 Nm (4.4 lbf ft) Loctite ® 243™ Cable disk nut, exhaust valve con- 14 Nm (10.3 lbf ft) trol unit Ground fitting on frame 10 Nm (7.4 lbf ft) Nut, ABS module fastening 8 Nm (5.9 lbf ft) Nut, cable on starter motor 6 Nm (4.4 lbf ft)
  • Page 22 4 TECHNICAL SPECIFICATIONS Screw, shift rod 5 Nm (3.7 lbf ft) Loctite ® 243™ Screw, shift shaft deflector on shift 18 Nm (13.3 lbf ft) shaft Loctite ® 243™ Screw, side stand stub 6 Nm (4.4 lbf ft) Loctite ® 243™...
  • Page 23 TECHNICAL SPECIFICATIONS 4 Screw, side stand spring 15 Nm (11.1 lbf ft) Loctite ® 2701™ Screw, steering damper on holder 25 Nm (18.4 lbf ft) Loctite ® 2701™ Screw, steering damper on triple 8 Nm (5.9 lbf ft) clamp Loctite ®...
  • Page 24 4 TECHNICAL SPECIFICATIONS Nut, rear axle M50x1.5 250 Nm (184.4 lbf ft) Thread greased/lock locking wire with locking varnish...
  • Page 25 SUBSTANCES 5 Super unleaded (ROZ 95) Standard/classification – DIN EN 228 (ROZ 95) Guideline – Only use super unleaded fuel that matches or is equivalent to the specified standard. – Fuel with an ethanol content of up to 10% (E10 fuel) is safe to use. Info Do not use fuel containing methanol (e.g., M15, M85, M100) or more than 10% ethanol (e.g., E15, E25, E85, E100).
  • Page 26 *3214810en* 3214810en 31.01.2023 KTM Sportmotorcycle GmbH 5230 Mattighofen/Austria Photo: Mitterbauer/KISKA/KTM KTM.COM...
