SETUP INSTRUCTIONS
2023
1290 SUPER DUKE R
1290 SUPER DUKE RR
Art. no. 3214864en

Advertisement

loading
Need help?

Need help?

Do you have a question about the 1290 SUPER DUKE R 2023 and is the answer not in the manual?

Questions and answers

Related Manuals for KTM 1290 SUPER DUKE R 2023

Summary of Contents for KTM 1290 SUPER DUKE R 2023

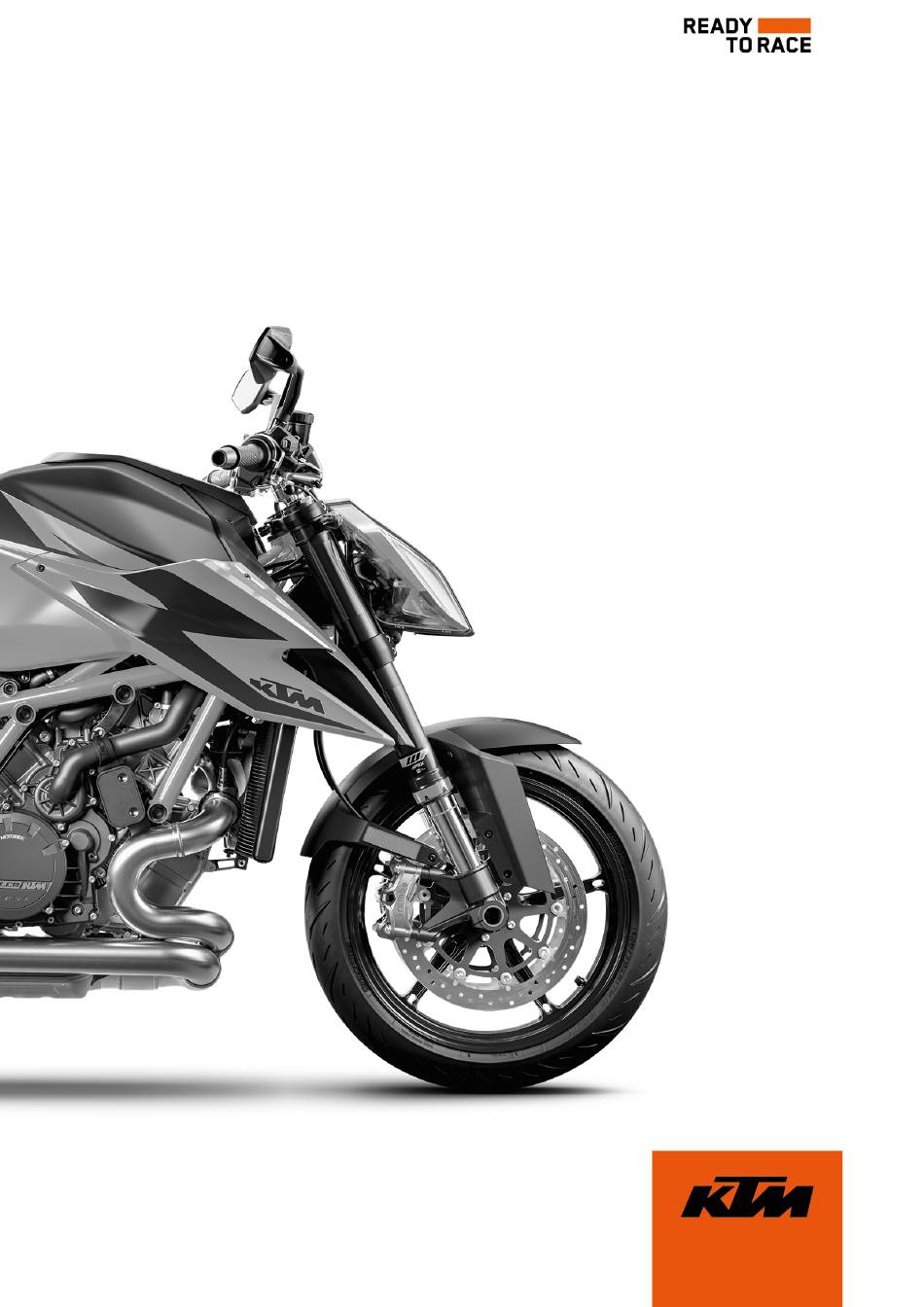

  • Page 1 SETUP INSTRUCTIONS 2023 1290 SUPER DUKE R 1290 SUPER DUKE RR Art. no. 3214864en...
  • Page 3 KTM accepts no liability for delivery options, deviations from fig- ures and descriptions, misprints, and other errors. The models portrayed partly contain special equipment that does not belong to the regular scope of supply.

  • Page 4: Means Of Representation

    1 MEANS OF REPRESENTATION Symbols used The meaning of specific symbols is described below. Indicates an expected reaction (e.g. of a work step or a function). Indicates an unexpected reaction (e.g. of a work step or a function). Indicates a page reference (more information is provided on the specified page). Indicates information with more details or tips.
  • Page 5 To operate the vehicle, the vehicle electronics must be enabled. This process is conducted during initial setup in KTM Dealer.net. Enabling ensures that the initial setup in KTM Dealer.net is docu- mented. Enabling can be performed either temporarily, e.g. for a test ride, or permanently for vehicle handover.
  • Page 6 2 SETUP Info The procedure in the event of transport damage is described in the Customer Service Manual. – Position the handlebar. The markings of the handlebar scale are located centrally between the handlebar clamp. – Position the handlebar clamp. Mount and tighten the screws evenly.
  • Page 7 SETUP 2 – Unpack and mount the KTM PowerParts levers included in the delivery. Guideline Screw, hand brake 5 Nm (3.7 lbf ft) lever Screw, clutch lever 5 Nm (3.7 lbf ft) S04915-01 – Install the break lever protection. Info Observe the KTM PowerParts instructions.
  • Page 8 Together with an assistant, take the vehicle off the pallet. – Remove the radiator shield. S04150-01 (SUPER DUKE RR) – Remove the footrest unit. – Install footrest unit KTM PowerParts (included). Info Observe the KTM PowerParts instructions. S04916-01 – Remove the front rider's seat. ( p. 8) –...
  • Page 9 SETUP 2 Info The first charging process may take longer with a new 12-V battery. – Remove the protective film. – Refuel. ( p. 16) – Prepare the vehicle according to the specifications in KTM Dealer.net for handover to the customer.
  • Page 10 3 WORK Removing the passenger seat (SUPER DUKE R) – Insert the RACE ON key or the black ignition key into seat lock and turn it clockwise. – Lift passenger seat at the front and pull it out of the bracket toward the front.
  • Page 11 WORK 3 (SUPER DUKE RR) – Pull the back cushion off toward the front. – Unlock the front rider's seat with loop – Raise the front rider's seat at the rear and remove it. S04795-10 Mounting the front rider's seat Main work (SUPER DUKE R) –...
  • Page 12 3 WORK Finishing work (SUPER DUKE R) – Mount the passenger seat. ( p. 8) Removing the 12-V battery Warning Risk of injury Battery acid and battery gases cause serious chemical burns. – Keep 12 V batteries out of the reach of children. –...
  • Page 13 WORK 3 (SUPER DUKE RR) – Remove control unit and hang to the side. – Disconnect negative cable from the 12-V battery. – Pull back positive terminal cover and disconnect the positive cable from the 12-V battery. S04809-10 – Disconnect plug-in connector –...
  • Page 14 3 WORK – Position the positive cable and mount and tighten the screw. Guideline Screw, battery ter- 4.5 Nm minal (3.32 lbf ft) – Mount positive terminal cover – Position negative cable and mount and tighten the screw. S03937-10 Guideline Screw, battery ter- 4.5 Nm minal...
  • Page 15 WORK 3 Disconnecting the negative cable of the 12-V battery Warning Risk of injury Battery acid and battery gases cause serious chemical burns. – Keep 12 V batteries out of the reach of children. – Wear suitable protective clothing and safety glasses. –...
  • Page 16 3 WORK Caution Danger of accidents Electronic components and safety devices will be damaged if the 12-V battery is dis- charged or missing. If the 12-V battery is discharged or defective, malfunctions in the vehicle electronics can occur, espe- cially when starting. –...
  • Page 17 WORK 3 Note Environmental hazard 12 V batteries contain environmentally hazardous materials. – Do not dispose of 12 V batteries as household waste. – Dispose of 12 V batteries at a collection point for used batteries. Note Environmental hazard Hazardous substances cause environmental damage. –...
  • Page 18 3 WORK – Set time and date. 3.10 Refueling Danger Fire hazard Fuel is highly flammable. The fuel in the fuel tank expands when warm and can escape if overfilled. – Do not fuel the vehicle in the vicinity of open flames or lit cigarettes. –...
  • Page 19 WORK 3 – Switch off the engine. – Open fuel tank filler cap. ( p. 17) – Fill the fuel tank with fuel up to the lower edge of the filler neck. Total fuel tank 16 l Super unleaded capacity, approx. (4.2 US gal) (ROZ 95) p.
  • Page 20 3 WORK – Fold up cover slowly. The fuel tank filler cap is unlocked. – Fold up fuel tank filler cap S03886-10 3.12 Closing the fuel tank filler cap Warning Fire hazard Fuel is highly flammable and a health hazard. – Check that the fuel tank filler cap is locked cor- rectly after closing.
  • Page 21 WORK 3 Setting the date – Press the UP or DOWN button until the date is marked. – Press the SET button. The day next to Date flashes. – Press the UP or DOWN button until the current day is set. –...

  • Page 22: Technical Specifications

    4 TECHNICAL SPECIFICATIONS chassis tightening torques EJOT PT Remaining screws, chassis ® K50x12 1.2 Nm (0.89 lbf ft) EJOT PT Remaining screws, chassis ® K50x14 1.5 Nm (1.11 lbf ft) EJOT PT ® Remaining screws, chassis K50x16 2.2 Nm (1.62 lbf ft) Remaining screws, chassis EJOT PT ®...
  • Page 23 TECHNICAL SPECIFICATIONS 4 Screw, connecting piece, rear 10 Nm (7.4 lbf ft) brake line Loctite ® 243™ Screw, cooler retaining bracket 7 Nm (5.2 lbf ft) Screw, front wheel speed sensor 4 Nm (3 lbf ft) Screw, fuel pump 6 Nm (4.4 lbf ft) Screw, fuel tank cover 5 Nm (3.7 lbf ft) Screw, instrument support clamp...
  • Page 24 4 TECHNICAL SPECIFICATIONS Screw, rear brake disc 28 Nm (20.7 lbf ft) Loctite ® 243™ Screw, shift lever on footrest sup- 20 Nm (14.8 lbf ft) port (SUPER DUKE R) Loctite ® 243™ Screw, shift shaft deflector on 10 Nm (7.4 lbf ft) frame Loctite ®...
  • Page 25 TECHNICAL SPECIFICATIONS 4 Nut, rear axle, shock absorber side M35x1.5 200 Nm (147.5 lbf ft) Loctite ® 262™/lock the locking wire with locking varnish Nut, rear axle M50x1.5 250 Nm (184.4 lbf ft) Thread greased/lock locking wire with locking varnish...
  • Page 26 5 SUBSTANCES Super unleaded (ROZ 95) Standard/classification – DIN EN 228 (ROZ 95) Guideline – Only use super unleaded fuel that matches or is equivalent to the specified standard. – Fuel with an ethanol content of up to 10% (E10 fuel) is safe to use. Info Do not use fuel containing methanol (e.g., M15, M85, M100) or more than 10% ethanol (e.g., E15, E25, E85, E100).
  • Page 27 *3214864en* 3214864en 19.04.2023 KTM Sportmotorcycle GmbH 5230 Mattighofen/Austria Photo: Mitterbauer/KISKA/KTM KTM.COM...
