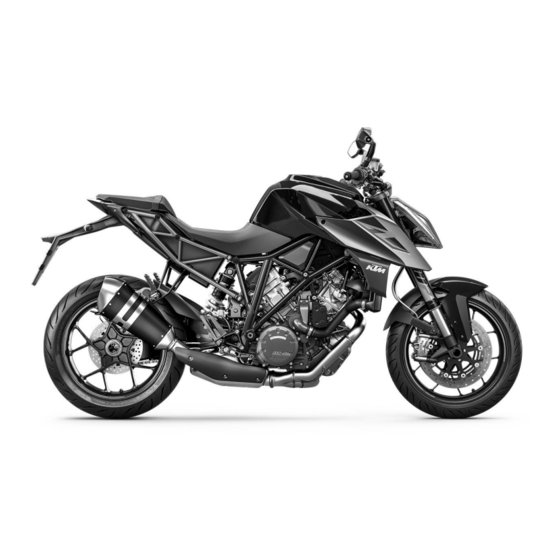

- Page 1 SETUP INSTRUCTIONS 2017 1290 Super Duke R Art. no. 3213660en...
- Page 3 KTM accepts no liability for delivery options, devi- ations from illustrations and descriptions, misprints, and other errors.
-
Page 4: Means Of Representation
MEANS OF REPRESENTATION Symbols used The meaning of specific symbols is described below. Indicates an expected reaction (e.g. of a work step or a function). Indicates an unexpected reaction (e.g. of a work step or a function). Indicates a page reference (more information is provided on the specified page). Indicates information with more details or tips. -
Page 5: Disconnect Connector
SETUP Unpacking and setting up the vehicle Preparatory work – Remove the box. Main work – Remove the adhesive tape in the upper area of the motorcycle. S01841-10 – Roll down the film at the sides. Info To avoid damaging the motorcycle during unpacking, leave the other films on the vehicle until you have finished work on the vehicle. -
Page 6: Tighten Screw
SETUP – Position the handlebar. The markings of the handlebar scale are located centrally between the handle- bar clamp. – Position the handlebar clamp. Mount and tighten the screws evenly. Guideline Screw, handlebar clamp 20 Nm (14.8 lbf ft) S01846-10 –... - Page 7 Plug in the connector of starter relay – Recharge the battery. ( p. 10) – Remove the protective plastic. – Refuel. ( p. 11) – Prepare the vehicle according to the specifications in the KTM Dealer.net for han- dover to the customer. S01856-10...
- Page 8 WORK Removing the passenger seat – Insert the Race‑on key or the black Race‑on key into the seat lock and turn clockwise. – Lift the passenger seat at the front and pull it out of the holder toward the front. –...
-
Page 9: Installing The Battery
WORK Removing the battery Warning Risk of injury Battery acid and battery gases cause serious chemical burns. – Keep batteries out of the reach of children. – Wear suitable protective clothing and safety glasses. – Avoid contact with battery acid and battery gases. –... - Page 10 WORK Main work – Fold up cover – Place battery in the battery compartment. Battery (YTX14-BS) L01484-10 – Position the positive cable and mount and tighten the screw. Guideline Screw, battery terminal 4.5 Nm (3.32 lbf ft) – Mount positive terminal cover –...
- Page 11 WORK Caution Danger of accidents Electronic components and safety devices will be damaged if the battery is discharged or missing. – Never operate the vehicle with a discharged battery or without a battery. Preparatory work – Switch off all power consumers and switch off the engine. –...
-
Page 12: Recharging The Battery
WORK – Fold down cover – Mount and tighten screw Guideline Remaining screws, chassis 5 Nm (3.7 lbf ft) T00489-11 Finishing work – Mount the front rider's seat. ( p. 6) – Mount the passenger seat. ( p. 6) – Set the time and date. - Page 13 WORK Main work – Connect the battery charger to the battery. Set the battery charger. Alternative 1 Battery charger XCharge-professional EU (00029095050) Alternative 2 Battery charger XCharge-professional US (00029095051) Alternative 3 Battery charger XCharge-professional GB (00029095052) 311910-10 Alternative 4 Battery charger XCharge-professional CH (00029095053) Info Follow the instructions of the charger and the manual.
- Page 14 WORK – Switch off the engine. – Open the filler cap. ( p. 12) – Fill the fuel tank with fuel up to the lower edge of the filler neck. Total fuel tank 18 l (4.8 US gal) Super unleaded (ROZ 95/RON 95/PON capacity, approx.
- Page 15 WORK 3.12 Closing the filler cap Warning Fire hazard Fuel is highly flammable, toxic and a health hazard. – Check the filler cap is locked correctly after closing. – Change your clothing in case of fuel spills on them. – Rinse the affected area immediately with plenty of water in the event of contact with the skin.
-
Page 16: Technical Data
TECHNICAL DATA chassis tightening torques – EJOT PT ® Remaining screws, chassis K50x12 1 Nm (0.7 lbf ft) – Remaining screws, chassis EJOT PT ® K50x14 1 Nm (0.7 lbf ft) – Remaining screws, chassis EJOT PT ® K50x16 2 Nm (1.5 lbf ft) –... - Page 17 TECHNICAL DATA Loctite ® 243™ Screw, shift shaft deflector on shift 18 Nm (13.3 lbf ft) shaft Screw, side stand stub 6 Nm (4.4 lbf ft) Loctite ® 243™ Loctite 243™ Screw, steering damper, holder, on 8 Nm (5.9 lbf ft) ®...
- Page 18 TECHNICAL DATA Screw, top shock absorber M14x1.5 80 Nm (59 lbf ft) Thread greased – Screw, eccentric 70 Nm (51.6 lbf ft) Nut, swingarm pivot M19x1.5 130 Nm (95.9 lbf ft) Thread greased – Nut, seat lock M22x1.5 6 Nm (4.4 lbf ft) Bolt, front axle M25x1.5 45 Nm (33.2 lbf ft)
- Page 19 SUBSTANCES Super unleaded (ROZ 95/RON 95/PON 91) Standard/classification – DIN EN 228 (ROZ 95/RON 95/PON 91) Guideline – Only use unleaded super fuel that matches or is equivalent to the specified fuel grade. – Fuel with an ethanol content of up to 10 % (E10 fuel) is safe to use. Info Do not use fuel containing methanol (e.
- Page 20 *3213660en* 3213660en 02/2017 KTM Sportmotorcycle GmbH 5230 Mattighofen/Austria Photo: Mitterbauer/KTM http://www.ktm.com...
