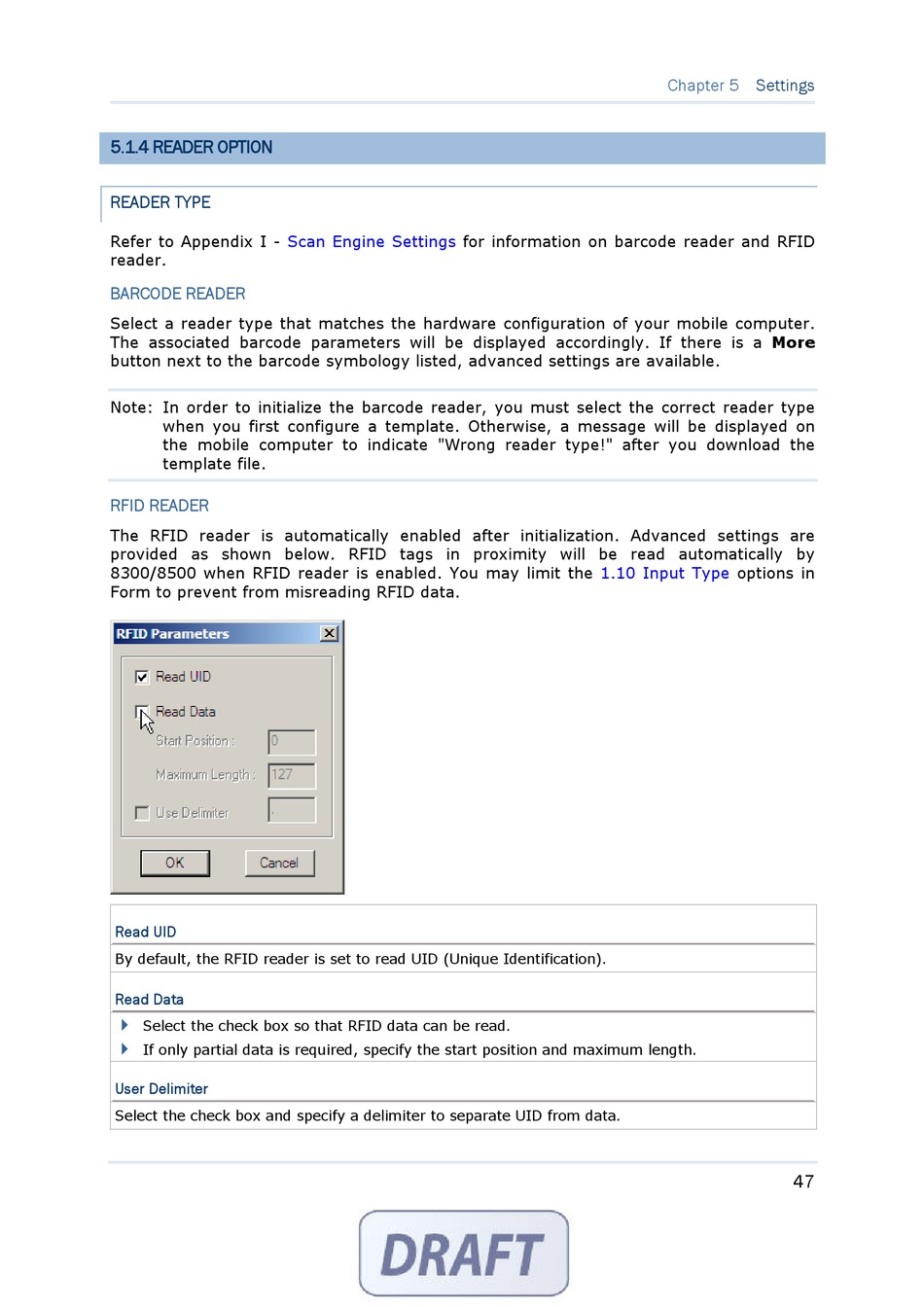

5.1.4 READER OPTION

READER TYPE
Refer to Appendix I -
reader.
BARCODE READER
Select a reader type that matches the hardware configuration of your mobile computer.
The associated barcode parameters will be displayed accordingly. If there is a More
button next to the barcode symbology listed, advanced settings are available.
Note: In order to initialize the barcode reader, you must select the correct reader type
when you first configure a template. Otherwise, a message will be displayed on
the mobile computer to indicate "Wrong reader type!" after you download the
template file.
RFID READER
The RFID reader is automatically enabled after initialization. Advanced settings are
provided as shown below. RFID tags in proximity will be read automatically by
8300/8500 when RFID reader is enabled. You may limit the
Form to prevent from misreading RFID data.
Read UID
By default, the RFID reader is set to read UID (Unique Identification).
Read Data
Select the check box so that RFID data can be read.
If only partial data is required, specify the start position and maximum length.
User Delimiter
Select the check box and specify a delimiter to separate UID from data.
S can Engine Settings
3
for information on barcode reader and RFID
1 .10 Input Type
3
Chapter 5 Settings
options in
47
